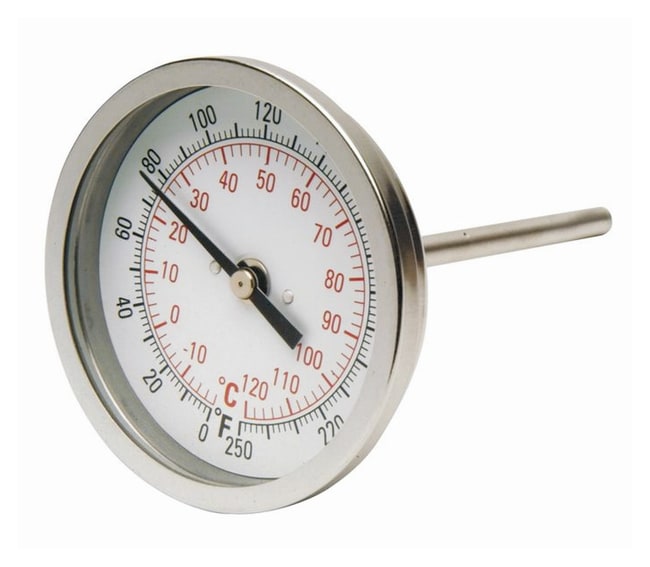

H-B Instrument™ Durac™ Bi-Metallic Dial Thermometers - 75mm Dial

Catalog No. 13201808
Click to view available options
Temperature Range (Metric):
—
-20°C to +120°C
-20°C to 120°C
-40°C to +50°C
0°C to 200°C
0°C to 50°C
10°C to 150°C
10°C to 260°C
Temperature Range (English):
—
-40°F to +120°F
0°F to 250°F
200°F to 1000°F
25°F to 125°F
50°F to 300°F
50°F to 500°F
Length (Metric) Probe:
62 mm
106 mm
150 mm
225 mm
255 mm
305 mm
610 mm
Subdivision:
1°C/1°F
1°C/2°F
2°C/2°F
2°F
5°C/5°F
5°F

Description

Includes

Stainless Steel probe, Multilanguage Statement of Test and Calibration, 0.5 in. NPT threaded connection

Thermometers with NPT connection for measuring temperature in gas and liquid phase

  • Dial Size: 3 in. (75mm)
  • NPT connection
  • 0.5 in. threaded connection
  • Polycarbonate lens
  • External adjustment for simple field calibration
  • Immersion in liquid: at least 50mm ( 2 in.)
  • Immersion in gases: at least 100mm (4 in.)
  • Individually packaged

Specifications

Certifications/Compliance NIST
Dial Size (English) 3 in.
Dial Size (Metric) 75 mm
Display Dimensions 3 in. (75 mm)
For Use With (Application) Petrochemical, oil and gas, waste water, pharmaceutical, compost, food and beverage storage and processing, asphalt, mining, utilities, automotive, marine, photographic
Includes Stainless Steel probe, Multilanguage Statement of Test and Calibration, 0.5 in. NPT threaded connection
Length (English) Overall 5.9 in.
Length (English) Probe 8.8 in.
Length (Metric) Overall 150 mm
Length (Metric) Probe 225 mm
Lens Material Polycarbonate
Material Metal
Max. Temperature (English) 120°F
Max. Temperature (Metric) 50°C
Min. Temperature (English) -40°F
Min. Temperature (Metric) -40°C
Temperature Range (English) -40°F to +120°F
Temperature Range (Metric) -40°C to +50°C
Subdivision 2°C/2°F
Immersion Length 50 mm in liquids or 100 mm in gas
