Spectroscopy Cuvettes and Cells
Starna Cells Inc Rectangular Spectrophotometer Cells, 100 mm
Standard window and wall thickness (1.25mm). Window material Optical Glass, useable range: 334 to 2500nm. Can be used with spectrophotometers and colorimeters.

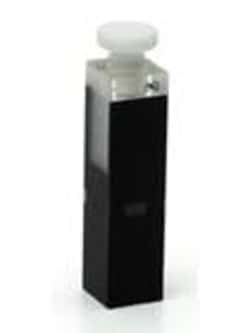

Agilent Technologies Rectangular sub-micro quartz cell
Rectangular sub-micro cell, quartz, stoppered with PTFE stopper supplied, 3 x 4.5mm aperture, 10 mm pathlength, top section of the cell features two self-masking black walls and two translucent side walls, 135 µL, z height 20mm, 1/pk. Compatible with Agilent Cary 50/60 UV-Vis spectrophotometers.
Fireflysci Type 1 Macro Cuvette with PTFE Cover (Material: Optical Glass) (Lightpath: 10mm)
Type 1 Macro Cuvette with PTFE Cover (Material: Optical Glass) (Lightpath: 10mm)• Cuvette has an open top with a PTFE lid which rests on the top• Material is Optical Glass (transmits over 80% between 340-2,500nm)• Two windows optically polished• Lightpath is 10mm• Outside dimensions 12.5x12.5x45mm• Inside Dimensions- 10x10x45mm• Capacity- 3.5mL
Fireflysci Type 9 Semi-Micro Cuvette with PTFE Cover (Material: Optical Glass) (Lightpath: 50mm)
Type 9 Semi-Micro Cuvette with PTFE Cover (Material: Optical Glass) (Lightpath: 50mm)• Cuvette has an open top with a PTFE lid which rests on the top• Material is Optical Glass (transmits over 80% between 340-2,500nm)• Two windows optically polished• Lightpath is 50mm• Outside dimensions 52.5x12.5x45mm• Inside Dimensions- 50x4x45mm• Capacity- 7mL
Fireflysci Type 30FL Micro Fluorescence Cuvette with PTFE Stopper (Material: UV Quartz) (Lightpath: 10mm)
Type 30FL Micro Fluorescence Cuvette with PTFE Stopper (Material: UV Quartz) (Lightpath: 10mm)• Cuvette has an airtight PTFE stopper which plugs into the top• Material is UV Quartz (transmits over 80% between 190-2,500nm)• Four windows and the base optically polished for fluorescence measurements• Lightpath is 10mm• Outside dimensions 12.5x12.5x49mm• Inside Dimensions- 10x2x45mm• Capacity- 0.7mL
Fireflysci Type 64FL Cryogenic Fluorescence Cuvette with PTFE Cover (Material: UV Quartz) (Lightpath: 10mm)
Type 64FL Cryogenic Fluorescence Cuvette with PTFE Cover (Material: UV Quartz) (Lightpath: 10mm)• Cuvette has additional reinforced fire fusing on the edges and corners to brace it for cryogenic temperatures• Cuvette has an open top with a PTFE lid which rests on the top• Material is UV Quartz (transmits over 80% between 190-2,500nm)• Four windows and the base optically polished for fluorescence work• Lightpath is 10mm• Outside dimensions 12.5x12.5x45mm• Inside Dimensions- 10x10x45mm• Capacity- 3.5mL
Fireflysci Type 1FL Macro Flourescence Cuvette with PTFE Cover (Material: Optical Glass) (Lightpath: 10mm)
Type 1FL Macro Flourescence Cuvette with PTFE Cover (Material: Optical Glass) (Lightpath: 10mm)• Cuvette has an open top with a PTFE lid which rests on the top• Material is Optical Glass (transmits over 80% between 340-2,500nm)• Four windows and the base optically polished for fluorescence measurements• Lightpath is 10mm• Outside dimensions 12.5x12.5x45mm• Inside Dimensions- 10x10x45mm• Capacity- 3.5mL

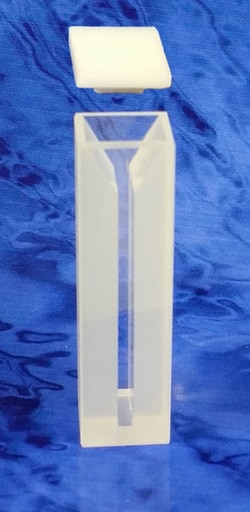

Fireflysci Type 18 Standard Micro Cuvette with PTFE Cover (Material: UV Quartz) (Lightpath: 10mm)
Type 18 Standard Micro Cuvette with PTFE Cover (Material: UV Quartz) (Lightpath: 10mm)• Cuvette has an open top with a PTFE lid which rests on the top• Material is UV Quartz (transmits over 80% between 190-2,500nm)• Two windows optically polished • Lightpath is 10mm• Outside dimensions 12.5x12.5x45mm• Inside Dimensions- 10x2x45mm• Capacity- 0.7mL

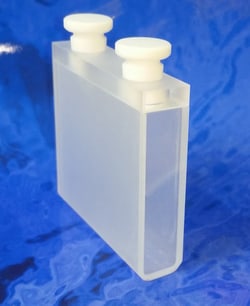

Fireflysci Type 21 Macro Cuvette with PTFE Stopper (Material: UV Quartz) (Lightpath: 50mm)
Type 21 Macro Cuvette with PTFE Stopper (Material: UV Quartz) (Lightpath: 50mm)• Cuvette has an airtight PTFE stopper which plugs into the top• Material is UV Quartz (transmits over 80% between 190-2,500nm)• Two windows optically polished• Lightpath is 50mm• Outside dimensions 52.5x12.5x55mm• Inside Dimensions- 50x10x45mm• Capacity- 17.5mL
Fireflysci Type 21FL Macro Fluorescence Cuvette with PTFE Stopper (Material: UV Quartz) (Lightpath: 10mm)
Type 21FL Macro Fluorescence Cuvette with PTFE Stopper (Material: UV Quartz) (Lightpath: 10mm)• Cuvette has an airtight PTFE stopper which plugs into the top• Material is UV Quartz (transmits over 80% between 190-2,500nm)• Four windows and the base optically polished• Lightpath is 10mm• Outside dimensions 12.5x12.5x49mm• Inside Dimensions- 10x10x45mm• Capacity- 3.5mL
Fireflysci Type 41 Macro Cuvette with Screw Cap (Material: UV Quartz) (Lightpath: 2mm)
Type 41 Macro Cuvette with Screw Cap (Material: UV Quartz) (Lightpath: 2mm)• Cuvette has an airtight cap, which screws onto the top of the cuvette• Each cell comes standard with one closed screw cap and one open screw cap with a self-healing injection disc (SEPTA)• Material is UV Quartz (transmits over 80% between 190-2,500nm)• Two windows optically polished• Lightpath is 2mm• Outside dimensions 12.5x12.5x55mm• Inside Dimensions- 10x2x45mm• Capacity- 0.7mL

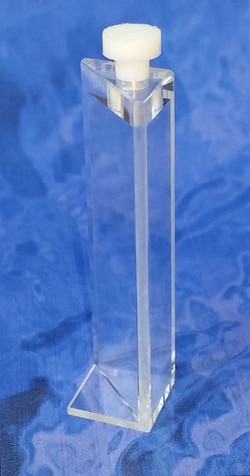

Fireflysci Type 82 Triangular Fluorescence Cell with PTFE Stopper (Material: UV Quartz) (Lightpath: 10mm)
Type 82 Triangular Fluorescence Cell with PTFE Stopper (Material: UV Quartz) (Lightpath: 10mm)• Cuvette has an airtight PTFE stopper which plugs into the top• Cuvette has a triangular shape• Material is UV Quartz (transmits over 80% between 190-2,500nm)• Three windows and the base optically polished• Lightpath is 10mm• Outside dimensions 12.5x12.5x49mm• Inside Dimensions- 10x10x45mm• Capacity- 1.75mL
Fireflysci Type 1P Disposable Macro Cuvettes (Lightpath: 10mm) (Material: UV Plastic)
Type 1P Disposable Macro Cuvettes (Lightpath: 10mm) (Material: UV Plastic)• Cuvette has an open top with optional push caps that fit into the top (part # for the caps is PLCAPS100)• Comes in a box of 100• Material is UV Plastic (transmits over 80% between 220-900nm)• Two windows optically polished• Lightpath is 10mm• Outside dimensions 12.5x12.5x45mm• Inside Dimensions- 10x10x45mm• Capacity- 3.5mL
