Electron Microscopy Sciences PS8 Micrometer Standard with Graticules Cert
These stage micrometers are available with a calibration certificate that provides traceability for the precise calibration and confirmation of accuracy of optical measuring instruments, necessary under ISO provisions. The glass discs are mounted in stainless steel slides with engraved serial numbers. Each slide is supplied in a polished wooden storage case. A Certificate of Comparison from Pyser-SGI, Graticules Division compares the scale to a NPL calibrated in-house standards. A statemen is provided on the accuracy of the item with respect to these standards.
Electron Microscopy Sciences Maxtaform 300 mesh, Gold
Maxtaform grids with clean and smooth edges, firm support, and a large open area. 3 mm diameter, 0.75 mil thickness.
Grid: Gold
Pitch: 84 µm
Hole: 61 µm
Bar: 23 µm
:
Electron Microscopy Sciences Maxtaform 400 mesh, Gold
Maxtaform grids with clean and smooth edges, firm support, and a large open area. 3 mm diameter, 0.75 mil thickness.
Grid: Gold
Pitch: 63 µm
Hole: 43 µm
Bar: 20 µm
:
Electron Microscopy Sciences Maxtaform 400 mesh, Nickel
Maxtaform grids with clean and smooth edges, firm support, and a large open area. 3 mm diameter, 0.75 mil thickness.
Grid: Nickel
Pitch: 63 µm
Hole: 43 µm
Bar: 20 µm
:

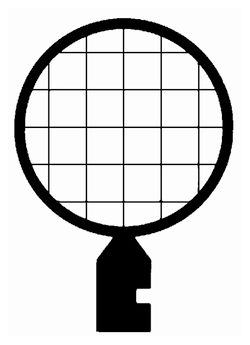

Electron Microscopy Sciences Veco Square Mesh Handle 150 mesh Copper Grid
Veco Grids offer superior handling characteristics. Plus, with a 0.8 mil thickness, Veco Grids are the most rigid grids available. 3.05 mm diameter.
Grid: Copper
Pitch: 167 µm
Hole: 117 µm
Bar: 50 µm
Electron Microscopy Sciences Squares Graticle NE38, 16mm, 10 mm, 7 mm and 4 mm squares
Combines three areas in one for convenience, giving area ratios A:B of 1:3 and B:C of 1:2.
Size: 16mm
Divisions: 10 mm, 7 mm and 4 mm squares
Surface: Chrome image
Electron Microscopy Sciences EMS Tungsten Loop Filament New, Philips, FEI
Our Electron microscope Tungsten filaments have a rigid attachment of the filament wire to the post with no possiblity of waving and a minimum tip radius for a coherent beam. The base assembly of all of our new filaments are guaranteed to be rebuildable for the lifetime of the electron beam instrument. Inspected for consistent quality and performance before being shipped to you. Return the base and we will rebuild the filament.
Use: Philips, FEI
Sigma Aldrich Fine Chemicals Biosciences TechneR immersion circulat1EA
These clip-on units will convert an ordinary water bath into a precision temperature-controlled bath. Each incorporates a thermostatted heater unit circulating pump connectors for optional external circulation and an adjustable over-temperature cutoff. Refrigeration required for operation below ambient (cooling coil available as an option if not supplied standard).All submerged parts are made of stainless steel or high-temperature self-extinguishing plastic.Supplied as circulator only (order bath separately).Thermoregulator bridge mounting plate recommended for use above 150 C.
Electron Microscopy Sciences Synaptek GILDED NOTCH-NUMBERED Grid with 2x1 mm slot, Be-Cu
Synaptek unflexible grids are made of a special Beryllium-Copper alloy and very reliable under the electron beam. Offer extreme stability for coating with support film. 4 mil thick (100um), 3.05 mm diameter. Contamination free and reusable after cleaning.
I.D.: 2x1 mm slot
Material: Beryllium-Copper
Electron Microscopy Sciences Thin Sample Holder, 8 mm Pin
Ideal for examination cross section of thin samples, such as wafers, multi-layer of capacitors, plastics, metals, etc. For most AMRAY: 1/2" diameter (12.7mm), 1/8" (3.1mm)dia. Pin (3.1mm) with split openings up to 1/4" (6.4mm), with 8mm (5/16") pin height
Electron Microscopy Sciences Thin Sample Holder, 15 mm Pin
Ideal for examination cross section of thin samples, such as wafers, multi-layer of capacitors, plastics, metals, etc. For ISI, JEOL, TOPCON: double set screw for a secure holding of the specimen during observation. 15mm(dia). X 10mm(H), 6.4mm split
Electron Microscopy Sciences Thompson Graticle G23, 21mm
For counting particles in any of three areas of known size. The graticule is calibrated in the same manner as a normal eyepiece scale. The result is then used to calculate the area of any square.
Size: 21mm
Divisions: 10 mm, 7 mm and 4 mm squares
Electron Microscopy Sciences Thompson Graticle G23, 19mm
For counting particles in any of three areas of known size. The graticule is calibrated in the same manner as a normal eyepiece scale. The result is then used to calculate the area of any square.
Size: 19mm
Divisions: 10 mm, 7 mm and 4 mm squares
Electron Microscopy Sciences SEM Tin On Carbon Medium Resolution Test Specimen, 12.5 mm Stub
Tin on Carbon is an alternate test specimen for medium resolution, and for the daily basic checking of your instrument performance. This specimen consists of a dispersion of tin spheres, within the size range 10 - 40 nm, on a carbon substrate. Ideal for astigmatism correction, it is also recommended for use in SEM's employed in the semi-conductor industry where the usual gold on carbon specimen cannot be used because of the risk of gold poisoning.
Type: 12.5 mm Stub
Electron Microscopy Sciences Veco Thin and Thick Bars GE200, Copper Grid
Veco Grids offer superior handling characteristics. Plus, with a 0.8 mil thickness, Veco Grids are the most rigid grids available. 3.05 mm diameter.
Material: Copper
Pitch: 125/145 µm
Hole: 80w/ Single slot 1000x500 µm
Bar: 45/65 µm
