Clamps
Adjustable devices designed to securely hold two objects together or to hold an object in place; used with standard-taper and ball-and-socket joints, glass and tubing assemblies, and with ring stands. Available as plastic joint clips, stainless steel pinch clamps, and taper clips.
A laboratory clamp is an essential piece of equipment used to support and secure labware and other laboratory apparatus such as flasks, reaction vessels, tubing, thermometers, probes, columns, funnels, and overhead stirrers.
Some laboratory clamps consist of a shaft and boss head, secured with hand-tightened thumbscrews, knurled nuts, or wingnuts onto a supporting rod, stand or scaffold. They may also include two- or three-pronged, adjustable closing jaws designed for gripping objects safely and securely.
Laboratory clamps are constructed of metals such as stainless steel, nickel-plated zinc, plated brass or diecast aluminum alloy for enhanced chemical, heat, and corrosion resistance. However, some components such as the adjusting screws may be made of plastic, and the prongs may also be lined or covered with cork, plastic, glass-fiber, or rubber for enhanced grip with minimal damage or breakage.
Laboratory Clamp Styles and Designs
• Universal, general-purpose clamps that are fully adjustable for accommodating and securing a wide range of items of different sizes such as columns and thermometers
• Retort clamps for securing round-bottom flasks and similar glassware
• Fork clamps for securing and supporting cone-and-socket ground glassware joints
• Three-prong extension clamps, sometimes available with spring-loaded jaws, for holding irregularly shaped or outsized objects
• Specialized clamps for securing burettes and condensers or reaction vessels
• Chain clamps, which incorporate a circular, adjustable chain loop to hold cylinders and beakers
World Precision Instrument Vessel Clip, Full Curve
WPI's Full Curve Vessel Clip is a surgical instrument for use in microvascular procedures, where extremely small blood vessels and delicate tissues are involved. WPI Vessel Clips are designed to occlude fine blood vessels with precise control. These clips are made of German stainless steel and have 1 x 6mm jaws. These ligating vessel clips can tie off blood vessels or other tissues. Vessel clips are durable and withstand the stresses of surgery, ensuring that they remain securely in place throughout the procedure. Pinch the handle to release pressure and position the vessel clip. Then, release the handles to clamp the tissue or vessel securely. The size of the vessel clip you need can vary depending on the size of the vessel or tissue being occluded. These vessel clips are manufactured from German grade stainless steel, and they are suitable for autoclaving or chemical sterilization. Always clean surgical instruments thoroughly and promptly.
World Precision Instrument Vessel Clip, Straight, 0.8 x 6mm Jaw, German
Micro Vessel Clips are a surgical instrument for use in microvascular procedures, where extremely small blood vessels and delicate tissues are involved. WPI Micro Vessel Clips are significantly smaller than standard surgical clips, because they are designed to occlude fine blood vessels with precise control. These clips are made of German stainless steel and come in a couple of sizes. These ligating vessel clips can tie off blood vessels or other tissues. Micro vessel clips are made to be durable and withstand the stresses of surgery, ensuring that they remain securely in place throughout the procedure. Pinch the handle to release pressure and position the vessel clip, or release the handles to clamp the tissue or vessel. The size of the vessel clip you need can vary depending on the size of the vessel or tissue being occluded. These are available with 0.8x6mm, and 0.75x4mm jaws.
World Precision Instrument Manipulator Mounting Clamp, 1/2-inch
Mount your manipulator
- Diameter: 1/2-inch clamp
- Interchangeable clamp allows manipulator to be mounted on a variety of supports

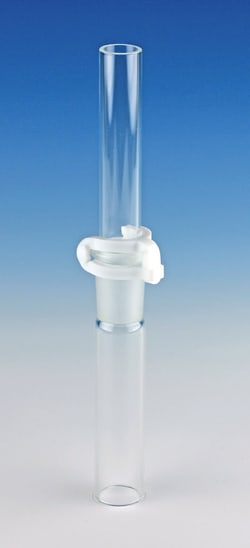

Chemglass Life Sciences Clamp, Keck, Green, Standard Taper, Fits Joint Sizes 10/13 & 10/29
Clamp, Keck, Green, Standard Taper, Fits Joint Sizes 10/13 & 10/29. Made of Delrin, the clamp is non-corrosive and will not scratch glass. Can be used to 140 C. Color coded for easy identification. SOLD IN PACKAGES OF 10.
Chemglass Life Sciences Arm, Flexible, 18"
Arm, Flexible, 18". Flexible arm replacement part for CG9214 series of flexible clamps.
Chemglass Life Sciences Flexible Clamp Kit, 12" Arm
Flexible Clamp Kit, 12" Arm. Flexible clamp for use in clamping laboratory apparatus that are normally difficult to hold due to their size, shape or odd angles. Unique flexible arm can be placed in virtually any position or angle. Available with a choice of a 12 or 18 inch long flexible arm. Complete item consists of a two-prong clamp head, three-prong clamp head, spring clamp head, flexible arm and a lab frame connector with utility wrench. Base plate and bench clamps are available as optional items.
Chemglass Life Sciences Large Universal Kwik Klamp II
Large Universal Kwik Klamp II. Universal Kwik Klamp II is constructed of aluminum that has a chemically resistant Hardcote and PTFE anodized finish. Versatile design can be used on 1/2” OD Rod. The large Klamp attaches to 2” pipe (2.375” OD). Useful in attaching temperature monitors or controllers, additional supports and clamps. The optional CG-3498-03 1/2” OD rod, bent 90° is necessary when supporting a temperature monitor or controller to a reactor stand or laboratory hood lattice.Features:• Heavy Duty Design• Corrosion Resistant• Large Clamping Knobs• Universal Design Securely Fastens To 10L Through 100L Reactor Frames And Stationary Or Mobile Benchtop Stands• 1/2" Diameter Rod Commonly Used For Lattice In Hoods• Clamps and Support Rods Can Be Mounted Horizontally Or Vertically• Secure Up To Four Different Rods, Clamps Or SupportsLarge Kwik Klamp II for use with: CG-1968-X Support Frame
Chemglass Life Sciences Clamp, PTFE, 14/20
Clamp, PTFE, 14/20. PTFE molded clamps with a steel core can withstand temperatures up to 250°C and are totally chemically resistant and inert.
Chemglass Life Sciences Universal Ridge Kwik Klamp II
Universal Ridge Kwik Klamp II. Universal Kwik Klamp II is constructed of aluminum that has a chemically resistant Hardcote and PTFE anodized finish. Versatile design can be used on 1/2” OD Rod. Useful in attaching temperature monitors or controllers, additional supports and clamps. The optional CG-3498-03 1/2” OD rod, bent 90° is necessary when supporting a temperature monitor or controller to a reactor stand or laboratory hood lattice.Features:• Heavy Duty Design• Corrosion Resistant• Large Clamping Knobs• Universal Design Securely Fastens To 10L Through 100L Reactor Frames And Stationary Or Mobile Benchtop Stands• 1/2" Diameter Rod Commonly Used For Lattice In Hoods• Clamps and Support Rods Can Be Mounted Horizontally Or Vertically• Secure Up To Four Different Rods, Clamps Or SupportsRidge Klamp for use with: CG-1968-X Support Frame
Chemglass Life Sciences Clamp, Pinch, Stainless Steel, #18
Clamp, Pinch, Stainless Steel, #18. Made entirely of stainless steel. Part numbers CG-150-01 and CG-150-03 are supplied WITHOUT a screw type locking device. All other sizes have the screw type locking device.Note: The size #102 Stainless Steel pinch clamp is available on a special order basis.
Chemglass Life Sciences Clamp, Horseshoe Style, #75
Clamp, Horseshoe Style, #75. Horseshoe shaped corrosion-resistant steel clamp for use with spherical ball and socket joints. Clamp has two machine bolts and thumbscrews 180º apart to apply uniform tension. NOTE: NOT FOR USE WITH CG-124 O-RING JOINTS.
Chemglass Life Sciences Clamp, Pinch, Stainless Steel, #12 without Locking Device
Clamp, Pinch, Stainless Steel, #12 without Locking Device. Made entirely of stainless steel. Part numbers CG-150-01 and CG-150-03 are supplied WITHOUT a screw type locking device. All other sizes have the screw type locking device.Note: The size #102 Stainless Steel pinch clamp is available on a special order basis.
Chemglass Life Sciences Clamp, Reactor Support, 150mm
Clamp, Reactor Support, 150mm. Similar to CG-1947, support clamp is designed to fit just below the flange of all Chemglass Reactors and permits Reactor lid to be detached without removing the Reactor body from the support clamp. Improved clamp is hinged on one side to swing open and allow complete access to install/remove reactor while clamp is still attached to lattice or benchtop support stand. Removable tightening knob holds Reactor secure. Clamps are constructed of stainless steel with a 1/2" OD X 9.5” long extension rod for connection to lattice and benchtop support stands. The inner portion of the clamp is lined with a high temperature red silicone rubber to prevent direct contact between the stainless steel and glass Reactor.PLEASE NOTE: IN ADDITION TO USING A CG-1947-A CLAMP, ALL REACTORS SHOULD BE SUPPORTED FROM BELOW USING THE CG-1948 SUPPORT RING.
