Distillation Labware
Glassware and replacement parts designed to carry out distillations in laboratory settings; includes condensers, distillation heads, receivers, etc. Products are available for various scales and for specialty distillations.
Distillation is a process used widely in the laboratory or in wider working environments for separating or purifying liquids or liquid mixtures based on the different boiling points of individual components.
Distillation Applications:
• Separation and purification of miscible liquid mixtures in organic chemistry
• Drying of solid residues and/or solvent removal
• Fractional distillation of liquids from polymers and petroleum products
• Removal of particulates or other solid contaminants
• As part of a water purification system for production of distilled water for laboratory use
• Specialist steam distillation-based applications such as Kjeldahl analysis of nitrogen and proteins in food, beverage, or environmental samples
What Types of Distillation Equipment Are Available?
Conventional distillation apparatus, typically comprising individual, jointed borosilicate glassware components assembled by the user (depending upon the application), using appropriate clamps, stands, and supports. Most conventional distillation assemblies combine a round-bottomed distilling flask to contain and heat the liquid(s) that require purification, fitted with a stoppered or jointed neck to which is attached a downward-sloping, inclined side-arm for connection to a condensing unit to cool the heated vapors back down to their liquid state. Heating mantles are the preferred heat source for improved temperature control. These conventional distillation units are also available supplied complete and ready-assembled for added convenience and ease of use.
Specialized automated distillation equipment, notably units designed for the determination of volatile acidity and alcoholic strength by volume in wines, musts, and alcoholic beverages, and units designed for Kjeldahl nitrogen or protein determinations.

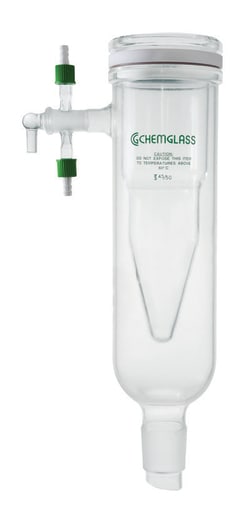

Chemglass Life Sciences Condenser, ''CR'' Assembly, For Rotary Evaporators, Plastic Coated
Condenser, ''CR'' Assembly, For Rotary Evaporators, Plastic Coated. Two piece cold trap style condenser for use with rotary evaporators. Condenser has a 45/40 lower inner drip joint, a 19/38 stopcock plug, and removable hose connections using GL-14 threads. Condenser is supplied complete with PTFE centering ring along with plastic caps and serrated hose connections. Plastic coating is on the outer portion of condenser only.

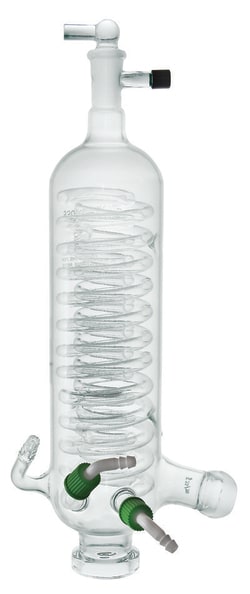

Chemglass Life Sciences Coil Condenser, "A" Assembly, Rotary Evaporator, Plastic Coated
Coil Condenser, "A" Assembly, Rotary Evaporator, Plastic Coated. Double coil condenser for use with rotary evaporators for cooling with tap water in a diagonal position. Condenser has a 50mm O.D. flange at the bottom, a 19/38 top valve, and removable hose connections using GL-14 glass threads. Condenser is supplied complete with plastic caps and serrated hose connections.
Chemglass Life Sciences Bump Trap, 100mL, Self Washing, Rotary Evaporator, 24/40 Top Outer, 29/26 Lower Inner
Bump Trap, 100mL, Self Washing, Rotary Evaporator, 24/40 Top Outer, 29/26 Lower Inner. Trap is designed to eliminate hold up common to the round style of rotary evaporator traps. Tapered sidewalls permit continuous washing with condensed solvent while preventing vapor cooling points along the path of the condenser. The upper stem has 4 large holes flush with the lower end, allowing solvent vapor to flow freely and making this portion of the trap easy to clean. The increased volume of the trap prevents “bumping” and keeps solvent out of the vapor tube.
Chemglass Life Sciences Condenser C, 55/50, 750mm
Condenser C, 55/50, 750mm. Condenser replacement part for the CG137303 extraction apparatus. Fits Size C apparatus.
Chemglass Life Sciences Extractor, Soxhlet, Micro, Condenser only
Condenser replacement part for the micro size Soxhlet extractor (CG137401). CONDENSOR ONLY.
Chemglass Life Sciences 45/50 14/20 Cold Finger Condenser (Gregar Extractor)
Cold finger condenser for the Gregar extractor (CG137501). 45/50 14/20.
Chemglass Life Sciences Adapter, Distillation, Claisen, 19/22 Joint Size, 10/18 Thermometer Joint For 25mm Immersion, 130mm H x 135mm W
Adapter, Distillation, Claisen, 19/22 Joint Size, 10/18 Thermometer Joint For 25mm Immersion, 130mm H x 135mm W. Distilling adapter having an outer member on the vertical side tube for use with a thermometer of the listed joint size and immersion. Sidearm has a standard taper inner drip tip joint while vertical tube has a top outer and lower inner joint, all being the same size. FOR THERMOMETERS SEE CG-3506-N.
Chemglass Life Sciences Adapter, Distillation, 19/22 Joint Size, Side Inner Joint At 75°
Adapter, Distillation, 19/22 Joint Size, Side Inner Joint At 75°, with standard taper outer joint at the top, and inner joints on the bottom and sidearm, all being the same size. Inner joints are at a 75º angle to one another.
Chemglass Life Sciences Adapter, Distillation, 105°, 19/22 Outer
Adapter, Distillation, 105°, 19/22 Outer. Distillation adapter with a top outer standard taper joint. Tapered delivery tube is bent at a 105º angle to the outer joint and extends into open receivers.
Ace Glass, Inc. Bent tube only, #5 O-ring joint, 1mm pulled tip, European Pharmacopeia Arsenic Limit Test
Bent tube only,#5 o-ring joint,1mm pulled tip,European Pharmacopeia Arsenic Limit Test.
Chemglass Life Sciences Distilling Bulb, 15mL, Kugelrohr, 14/20 Joint
Kugelrohr bulbs having 14/20 standard taper joints on both ends to connect to other bulbs or single neck round bottom flasks. CG-1012-14 adapter permits connection of Kugelrohr assembly to vacuum. For single neck 14/20 flasks see CG-1506.
