Dimensional Analyzers

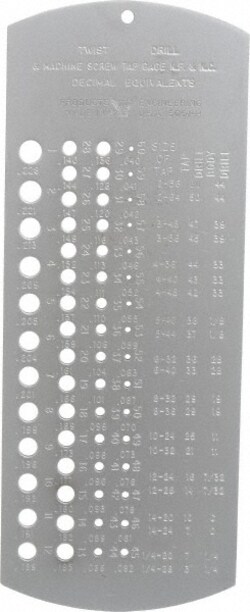

MSC PEC Tools Drill Gage, #60 Wire to #1 Wire Hole Size, 60 Holes
This drill gage is designed to accurately measure drill bit sizes from #60 wire to #1 wire. It features 60 holes and is constructed from steel, making it suitable for a wide range of drill bit measurement applications.
- Measures drill bit sizes from #60 wire to #1 wire.
- Includes 60 holes for precise measurement.
- Constructed from steel for durability.
- Utilizes wire gauge system of measurement.
- Ideal for various drill bit applications.
MSC Mitutoyo Gage Block Accessory Set, Rectangular, 14 Piece
This accessory set is designed for rectangular gage blocks, expanding their applications and facilitating the easy and quick assembly of precision measuring instruments. It is suitable for use with both steel and CERA rectangular gage blocks.
- Assortment of accessories for gage blocks
- Includes multiple holders of varying lengths
- Features half round jaws in different sizes
- Comes with scriber point, center point, and triangular straightness edge
- Total of 14 pieces in the set
- Compatible with steel and CERA rectangular gage blocks
MSC SPI Gage Ball, Chrome Steel, 63 HRC, 3/16 in Diameter, Accuracy Grade 25
This gage ball is constructed from chrome steel and heat-treated for a hardness of 63 HRC. It features a 3/16 inch diameter and an accuracy grade of 25, making it suitable for precise measurement applications.
- Chrome steel construction
- Hardness of 63 HRC
- Accuracy grade of 25
- AFBMA certified
- 3/16 inch diameter
- Heat treated and hardened for durability
MSC Vermont Gage Pin Gage, 0.3541 in, Class X, Go, Tool Steel
This pin gage is a precision measurement standard designed for calibrating equipment or directly gaging parts. Made from durable tool steel, it features a 0.3541 inch diameter and a 2 inch length. This Class X Go gage is accurate and cost-effective, suitable for both shop floor and metrology laboratory environments.
- Precision measurement standard for calibration or direct part gaging.
- Constructed from durable tool steel.
- 0.3541 inch diameter with a plus tolerance of +0.00004 "
- 2 inch length.
- Features a 4 microinch finish or better.
- Gage roundness maintained within half the diameter tolerance.
- Includes a certificate of accuracy with NIST traceability.

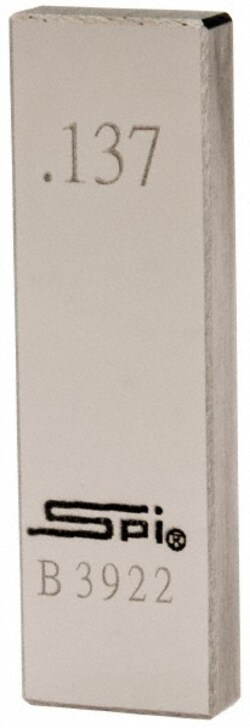

MSC SPI Gage Block, Rectangle, Steel, 0.137 Inch, Grade 0
This rectangle steel gage block is a precision measurement tool. It features a Grade 0 accuracy, making it suitable for applications requiring high precision. The block is made of steel and comes with NIST certification, ensuring its reliability and traceability for critical measurements.
- Rectangle shape
- Grade 0 accuracy
- Made from durable steel
- 0.137 inch size
- Includes NIST certification
MSC Starrett Gage Block, Rectangular, Steel, .900 Inch, Grade 0
This precision gage block serves as a primary standard for dimensional quality control in manufacturing. Essential characteristics for these blocks include accuracy, surface finish, wear resistance, and dimensional stability. Made from high-grade steel, this rectangular gage block is suitable for shop floor environments and the calibration of measuring equipment.
- Accuracy meets or exceeds known specifications, with excellent flatness, parallelism, and surface finish.
- Maintains size over time, changing only through normal wear.
- Steel blocks have a Rockwell "C" hardness of approximately 64-65.
- Constructed from high-grade steel, suitable for shop floor use.
- B89.1.9 Accuracy Grade is 0.
- Nominal size of .900 in.
- Designed for inspection applications.
MSC SPI Dial Drop Indicator, 0.2500 in, 0-100 Dial, 0.001 in
This dial drop indicator is designed to measure geometric tolerances and dimensional deviations of workpieces. It features a maximum measurement of 0.2500 in, a 0-100 dial reading, and an accuracy of 0.001 in.
- Measures geometric tolerances and dimensional deviations of workpieces.
- Maximum measurement of 0.2500 in.
- Dial reading of 0-100.
- Accuracy of 0.001 in.
- Dial graduation of 0.001 in.
- Flat and lug back types available.
- Jeweled bearing for smooth operation.
- Includes a short form calibration certificate.
- Equipped with a revolution counter.
- Features counter pointer, easy reading, and universal positioning capability.
- NIST traceability certification included.
- Complies with US Federal Specifications.
- White dial for clear visibility.
MSC Van Keuren Thread Measuring Wire, 72 TPI, 0.0139 in Pitch, 2 in Long
This 3-piece set of thread measuring wires is designed for accurate measurement of thread pitch diameter. Each wire features 72 threads per inch (TPI) and a 0.0139 inch pitch, with a length of 2 inches.
- Designed for thread pitch diameter measurement
- 72 threads per inch (TPI)
- 0.0139 inch pitch
- 2 inch wire length
- Nominal best wire diameter of 0.008 inch
- Nominal constant of 0.012 inch
- Supplied as a 3-piece set
MSC Vermont Gage Class X Plus Pin Gage, 0.1830 in, 2 in
This Class X Plus Pin Gage features a precise 0.1830 inch diameter and a 2 inch length, crafted from durable tool steel. It is designed for calibrating measuring equipment or directly gaging parts, and comes with a Certificate of Accuracy with NIST Traceability.
- Diameter of 0.1830 inch
- Length of 2 inch
- Made from tool steel
- 4 micro coated finish
- Tolerance of 0.00004 inch
- Includes certificate of accuracy with NIST traceability
- Suitable for calibration of measuring equipment
- Suitable for direct gaging of parts
MSC Mitutoyo Gage Block, Square, Steel, 0.45 inch, Grade 0
This Mitutoyo Gage Block is a precision measuring tool with an accuracy grade of 0. It is constructed from steel in a square shape, with a size of 0.45 " This gage block is designed for accurate measurements and includes a Certificate of Inspection.
- Accuracy grade 0
- Includes certificate of inspection
- Square shape
- Steel material
- 0.45 inch size
- Meets ASME standards
- Manufactured in Japan
MSC Vermont Gage Class ZZ Plus Plug Gage, 0.1595 in, 0.0002 in, 10 Microfinish
The Vermont Gage Class ZZ Plus Plug Gage is designed for precise measurement and inspection tasks. Made from durable tool steel with a 10 microfinish, this gage features a 0.1595 inch diameter and a 0.0002 inch tolerance, ensuring high accuracy for various applications.
- For Go inspection, set micrometers, verniers, and other measuring devices.
- Includes certificate of accuracy with NIST traceability.
- Meets ASME B89.1 standards.
- Constructed from tool steel.
- Features a 10 microfinish.
MSC Vermont Gage Class X Plus Pin Gage, 0.2501 in x 2 in, 4 Micro
This Class X Plus Pin Gage has a diameter of 0.2501 in and a length of 2 in. It features a 4 Micro Coated finish and is constructed from durable tool steel. This gage includes a Certificate of Accuracy with NIST Traceability, making it suitable for the calibration of measuring equipment or for direct part gaging.
- Diameter of 0.2501 in
- Tolerance of 0.00004 in
- Constructed from tool steel
- Features a 4 Micro Coated finish
- Includes certificate of accuracy with NIST traceability
- Ideal for calibration of measuring equipment or direct part gaging
- Made in the United States
- Length of 2 in
MSC SPI Small Hole Gage, Flat Bottom Type, 0.125-0.200 inch, Satin Chrome
This small hole gage, flat bottom type, is designed for precise measurement of shallow holes, slots, and grooves. It features a measurement range of 0.125 to 0.200 inch and a durable satin chrome finish.
- Full radius measuring faces with flat bottom, ideal for measuring shallow holes, slots, and grooves.
- Size adjustment by knurled knob.
- Final size is obtained by measuring over the contact points with a micrometer.
- Gaging surface is fully hardened.
- Satin chrome finish.
- Extra long for gaging deep holes and slots.
MSC Vermont Gage Pin Gage, Class X Plus, 0.2390 in Dia, 2 in Long
This precision pin gage is designed for the calibration of measuring equipment or for direct part gauging. It features a 0.2390 inch diameter and a 2 inch length, crafted from durable tool steel with a 4 Micro coating for enhanced performance.
- Designed for calibration of measuring equipment or to gage parts directly.
- Includes certificate of accuracy with NIST traceability.
- Constructed from tool steel for durability.
- Features a 4 Micro coating/finish.
- Class X Plus precision.
MSC Vermont Gage Class X Minus Pin Gage, 0.0765 Inch Diameter, 2 Inch Long
This Vermont Gage Class X minus pin gage features a precise 0.0765 inch diameter and a length of 2 inches. It is manufactured from durable tool steel and boasts a 4 micro coated finish. This pin gage is ideal for the calibration of measuring equipment or for directly gaging parts and comes with a Certificate of Accuracy that provides NIST Traceability.
- Precise 0.0765 inch diameter
- 2 inch length
- Durable tool steel material
- 4 micro coated finish
- Ideal for calibration of measuring equipment
- Suitable for directly gaging parts
- Includes a certificate of accuracy with NIST traceability
- Tolerance of -0.00004 decimal inches
