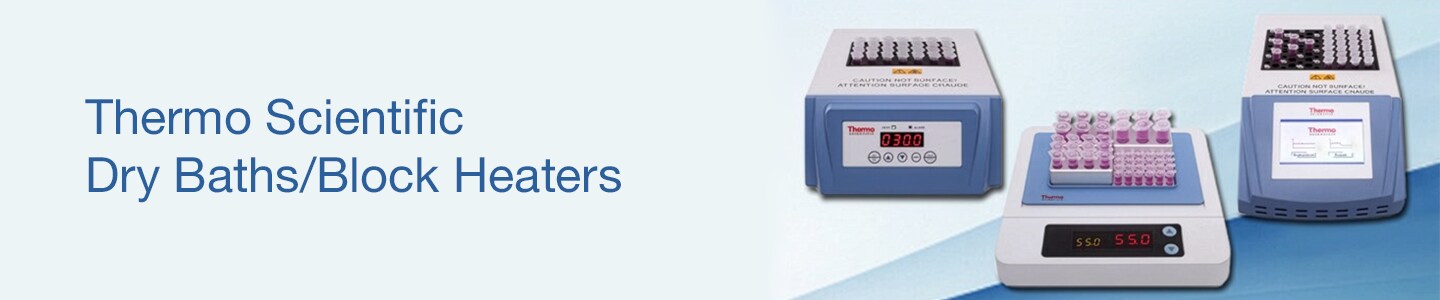

thermo-scientific-dry-bath-banner-d
Digital
Digital-dry-bath

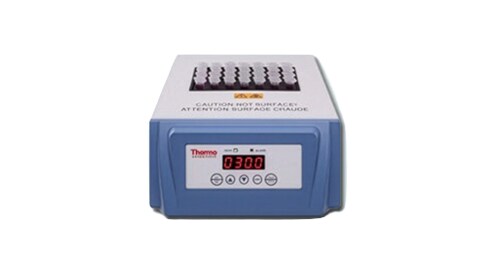

Digital Dry Bath/Block Heater

Increase lab versatility with Thermo Scientificâ„¢ Digital Dry Baths/Block Heaters, which offer a range of configurations with interchangeable modular blocks for a variety application needs.

Features Include:

  • Digital controls and display of time and temperature
  • Precise temperature control with PID circuit
  • Temperature calibration enables to offset the temperature to desired value
  • Timer allows the user to accurately monitor the heating time

Applications include:

  • Sample preparation
  • Enzyme preservation
  • Enzyme-substrate reactions
  • DNA amplification
  • Electrophoresis gel degeneration
  • Serum coagulation
thermo-scientific-dry-baths-block-heaters-brochure-thumbnail

Thermo Scientific Dry Baths/Block Heaters Brochure

Reliability you can depend on. Thermo Scientificâ„¢ versatile dry baths / block heaters offer a wide range of blocks to accommodate various tubes.

Thermo Scientific Dry Baths/Block Heaters Brochure (2.1 MB)

    Catalog Number Description Price Quantity & Availability
Success
88-870-005 Details

Thermo Scientificâ„¢ Digital Dry Baths/Block Heaters No. of Blocks: 2 (sold separately)

Add to Cart

Product Specifications
Height (English) 3.9 in.
Length (Metric) 318 mm
Type Dry Block Heater
Warranty 2 Year, Replacement
Material Powder-coated Steel
Lighting LED
Weight (Metric) 3.3 kg
Relative Humidity <80%
Includes Dry Bath, Block Lifter
Voltage 200/240 V
Length (English) 12.5 in.
Frequency 50/60 Hz
Controller Type PID digital
No. of Blocks 2 (sold separately)
Height (Metric) 100 mm
Temperature Accuracy ≤ ± 0.5°C
Temperature Range (Metric) Ambient +5° to 130°C (Ambient at 25°C)
Plug Type CN, EU, UK
Width (English) 7.9 in.
Fuse 250V 2.5A
Certifications/Compliance CE, cULus, RoHS
Timer 0 to 99:59 min or continuous
Heating Rate ≤ 20 min. 30° to 130°C
Weight (English) 7.28 lb.
Temperature Uniformity ≤ ± 1°C
Dimensions (L x W x H) 318 x 200 x 100 mm (12.5 x 7.9 x 3.9 in.)
Width (Metric) 200 mm
88-870-006 Details

Thermo Scientificâ„¢ Digital Dry Baths/Block Heaters No. of Blocks: 4 (sold separately)

Add to Cart

Product Specifications
Height (English) 3.9 in.
Length (Metric) 450 mm
Type Dry Block Heater
Warranty 2 Year, Replacement
Material Powder-coated Steel
Lighting LED
Weight (Metric) 4.7 kg
Relative Humidity <80%
Includes Dry Bath, Block Lifter
Voltage 200/240 V
Length (English) 17.7 in.
Frequency 50/60 Hz
Controller Type PID digital
No. of Blocks 4 (sold separately)
Height (Metric) 100 mm
Temperature Accuracy ≤ ± 0.5°C
Temperature Range (Metric) Ambient +5° to 130°C (Ambient at 25°C)
Plug Type CN, EU, UK
Width (English) 7.9 in.
Fuse 250V 3.15A
Certifications/Compliance CE, cULus, RoHS
Timer 0 to 99:59 min or continuous
Heating Rate ≤ 25 min. 30° to 130°C
Weight (English) 10.36 lb.
Temperature Uniformity ≤ ± 1°C
Dimensions (L x W x H) 450 x 200 x 100 mm (17.7 x 7.9 x 3.9 in.)
Width (Metric) 200 mm
88-870-001 Details

Thermo Scientificâ„¢ Digital Dry Baths/Block Heaters No. of Blocks: 1 (sold separately)

EDGE
Add to Cart

Product Specifications
Height (English) 3.9 in.
Length (Metric) 288 mm
Type Dry Block Heater
Warranty 2 Year, Replacement
Material Powder-coated Steel
Lighting LED
Weight (Metric) 2.9 kg
Relative Humidity <80%
Includes Dry Bath, Block Lifter
Voltage 100/120 V
Length (English) 11.3 in.
Frequency 50/60 Hz
Controller Type PID digital
No. of Blocks 1 (sold separately)
Height (Metric) 100 mm
Temperature Accuracy ≤ ± 0.5°C
Temperature Range (Metric) Ambient +5° to 130°C (Ambient at 25°C)
Plug Type US
Width (English) 7.9 in.
Fuse 250V 2.5A
Certifications/Compliance CE, cULus, RoHS
Timer 0 to 99:59 min or continuous
Heating Rate ≤ 20 min. 30° to 130°C
Weight (English) 6.39 lb.
Temperature Uniformity ≤ ± 1°C
Dimensions (L x W x H) 288 x 200 x 100 mm (11.3 x 7.9 x 3.9 in.)
Width (Metric) 200 mm
88-870-002 Details

Thermo Scientificâ„¢ Digital Dry Baths/Block Heaters No. of Blocks: 2 (sold separately)

EDGE
Add to Cart

Product Specifications
Height (English) 3.9 in.
Length (Metric) 318 mm
Type Dry Block Heater
Warranty 2 Year, Replacement
Material Powder-coated Steel
Lighting LED
Weight (Metric) 3.3 kg
Relative Humidity <80%
Includes Dry Bath, Block Lifter
Voltage 100/120 V
Length (English) 12.5 in.
Frequency 50/60 Hz
Controller Type PID digital
No. of Blocks 2 (sold separately)
Height (Metric) 100 mm
Temperature Accuracy ≤ ± 0.5°C
Temperature Range (Metric) Ambient +5° to 130°C (Ambient at 25°C)
Plug Type US
Width (English) 7.9 in.
Fuse 250V 5A
Certifications/Compliance CE, cULus, RoHS
Timer 0 to 99:59 min or continuous
Heating Rate ≤ 20 min. 30° to 130°C
Weight (English) 7.28 lb.
Temperature Uniformity ≤ ± 1°C
Dimensions (L x W x H) 318 x 200 x 100 mm (12.5 x 7.9 x 3.9 in.)
Width (Metric) 200 mm
88-870-003 Details

Thermo Scientificâ„¢ Digital Dry Baths/Block Heaters No. of Blocks: 4 (sold separately)

EDGE
Add to Cart

Product Specifications
Height (English) 3.9 in.
Length (Metric) 450 mm
Type Dry Block Heater
Warranty 2 Year, Replacement
Material Powder-coated Steel
Lighting LED
Weight (Metric) 4.7 kg
Relative Humidity <80%
Includes Dry Bath, Block Lifter
Voltage 100/120 V
Length (English) 17.7 in.
Frequency 50/60 Hz
Controller Type PID digital
No. of Blocks 4 (sold separately)
Height (Metric) 100 mm
Temperature Accuracy ≤ ± 0.5°C
Temperature Range (Metric) Ambient +5° to 130°C (Ambient at 25°C)
Plug Type US
Width (English) 7.9 in.
Fuse 250V 8A
Certifications/Compliance CE, cULus, RoHS
Timer 0 to 99:59 min or continuous
Heating Rate ≤ 25 min. 30° to 130°C
Weight (English) 10.36 lb.
Temperature Uniformity ≤ ± 1°C
Dimensions (L x W x H) 450 x 200 x 100 mm (17.7 x 7.9 x 3.9 in.)
Width (Metric) 200 mm
88-870-004 Details

Thermo Scientificâ„¢ Digital Dry Baths/Block Heaters No. of Blocks: 1 (sold separately)

Add to Cart

Product Specifications
Height (English) 3.9 in.
Length (Metric) 288 mm
Type Dry Block Heater
Warranty 2 Year, Replacement
Material Powder-coated Steel
Lighting LED
Weight (Metric) 2.9 kg
Relative Humidity <80%
Includes Dry Bath, Block Lifter
Voltage 200/240 V
Length (English) 11.3 in.
Frequency 50/60 Hz
Controller Type PID digital
No. of Blocks 1 (sold separately)
Height (Metric) 100 mm
Temperature Accuracy ≤ ± 0.5°C
Temperature Range (Metric) Ambient +5° to 130°C (Ambient at 25°C)
Plug Type CN, EU, UK
Width (English) 7.9 in.
Fuse 250V 2.5A
Certifications/Compliance CE, cULus, RoHS
Timer 0 to 99:59 min or continuous
Heating Rate ≤ 20 min. 30° to 130°C
Weight (English) 6.39 lb.
Temperature Uniformity ≤ ± 1°C
Dimensions (L x W x H) 288 x 200 x 100 mm (11.3 x 7.9 x 3.9 in.)
Width (Metric) 200 mm
Touch Screen
touch-screen-dry-bath

Touch Screen Dry Bath/Block Heater

Thermo Scientificâ„¢ Touch Screen Dry Bath /Block Heater is designed to achieve precise temperature stability and uniformity with an easy-to-use touch screen.

Features Include:

  • Temperature deviation adjustment
  • Precise temperature control with PID circuit
  • Temperature calibration enables to offset the temperature to desired value
  • Timer enables the user to accurately monitor the heating time
  • Optional temperature for better temperature accuracy
  • Programmable

Applications include:

  • Sample preparation
  • Enzyme preservation
  • Enzyme-substrate reactions
  • DNA amplification
  • Electrophoresis gel degeneration
  • Serum coagulation
thermo-scientific-dry-baths-block-heaters-brochure-thumbnail

Thermo Scientific Dry Baths/Block Heaters Brochure

Reliability you can depend on. Thermo Scientificâ„¢ versatile dry baths / block heaters offer a wide range of blocks to accommodate various tubes.

Thermo Scientific Dry Baths/Block Heaters Brochure (2.1 MB)

Heaters

Blocks

Blocks

    Catalog Number Description Price Quantity & Availability
Success
88-870-101 Details

Thermo Scientificâ„¢ Block, 46 x 6 mm dia. No. of Places: 46

Add to Cart

Product Specifications
For Use With (Equipment) Thermo Scientificâ„¢ Digital and Touch Screen Dry Baths/Block Heaters (No compact models)
No. of Places 46
Description 46 x 6mm dia. block
Type Block
Holds 46 x 6mm
Dimensions (L x W x H) 76 x 124 x 39 mm (3 x 4.9 x 1.5 in.)
Lighting LED
88-870-103 Details

Thermo Scientificâ„¢ Block, 28 x 1.5 mL No. of Places: 28

EDGE
Add to Cart

Product Specifications
For Use With (Equipment) Thermo Scientificâ„¢ Digital and Touch Screen Dry Baths/Block Heaters (No compact models)
Capacity (Metric) 1.5 mL
No. of Places 28
Description 28 x 1.5mL block
Type Block
Holds 28 x 1.5mL
Dimensions (L x W x H) 76 x 124 x 39 mm (3 x 4.9 x 1.5 in.)
Lighting LED
88-870-102 Details

Thermo Scientificâ„¢ Block, 28 x 10 mm dia. No. of Places: 28

EDGE
Add to Cart

Product Specifications
For Use With (Equipment) Thermo Scientificâ„¢ Digital and Touch Screen Dry Baths/Block Heaters (No compact models)
No. of Places 28
Description 28 x 10mm dia. block
Type Block
Holds 28 x 10mm
Dimensions (L x W x H) 76 x 124 x 39 mm (3 x 4.9 x 1.5 in.)
Lighting LED
88-870-105 Details

Thermo Scientificâ„¢ Block, 24 x 13 mm dia. No. of Places: 24

EDGE
Add to Cart

Product Specifications
For Use With (Equipment) Thermo Scientificâ„¢ Digital and Touch Screen Dry Baths/Block Heaters (No compact models)
No. of Places 24
Description 24 x 13mm dia. block
Type Block
Holds 24 x 13mm
Dimensions (L x W x H) 76 x 124 x 39 mm (3 x 4.9 x 1.5 in.)
Lighting LED
88-870-104 Details

Thermo Scientificâ„¢ Block, 28 x 2.0 mL No. of Places: 28

EDGE
Add to Cart

Product Specifications
For Use With (Equipment) Thermo Scientificâ„¢ Digital and Touch Screen Dry Baths/Block Heaters (No compact models)
Capacity (Metric) 2 mL
No. of Places 28
Description 28 x 2.0mL block
Type Block
Holds 28 x 2.0mL
Dimensions (L x W x H) 76 x 124 x 39 mm (3 x 4.9 x 1.5 in.)
Lighting LED
88-870-107 Details

Thermo Scientificâ„¢ Block, 12 x 18 mm dia. No. of Places: 12

Add to Cart

Product Specifications
For Use With (Equipment) Thermo Scientificâ„¢ Digital and Touch Screen Dry Baths/Block Heaters (No compact models)
No. of Places 12
Description 12 x 18mm dia. block
Type Block
Holds 12 x 18mm
Dimensions (L x W x H) 76 x 124 x 39 mm (3 x 4.9 x 1.5 in.)
Lighting LED
88-870-106 Details

Thermo Scientificâ„¢ Block, 15 x 16 mm dia. No. of Places: 15

EDGE
Add to Cart

Product Specifications
For Use With (Equipment) Thermo Scientificâ„¢ Digital and Touch Screen Dry Baths/Block Heaters (No compact models)
No. of Places 15
Description 15 x 16mm dia. block
Type Block
Holds 15 x 16mm
Dimensions (L x W x H) 76 x 124 x 39 mm (3 x 4.9 x 1.5 in.)
Lighting LED

Blocks

    Catalog Number Description Price Quantity & Availability
Success
88-870-109 Details

Thermo Scientificâ„¢ Block, 6 x 25 mm dia. No. of Places: 6

EDGE
Add to Cart

Product Specifications
For Use With (Equipment) Thermo Scientificâ„¢ Digital and Touch Screen Dry Baths/Block Heaters (No compact models)
No. of Places 6
Description Heat Block 6 x 25mm
Type Block
Holds 6 x 25mm
Dimensions (L x W x H) 76 x 124 x 39 mm (3 x 4.9 x 1.5 in.)
Lighting LED
88-870-108 Details

Thermo Scientificâ„¢ Block, 8 x 20 mm dia. No. of Places: 8

Add to Cart

Product Specifications
For Use With (Equipment) Thermo Scientificâ„¢ Digital and Touch Screen Dry Baths/Block Heaters (No compact models)
No. of Places 8
Description 8 x 20mm dia. block
Type Block
Holds 8 x 20mm
Dimensions (L x W x H) 76 x 124 x 39 mm (3 x 4.9 x 1.5 in.)
Lighting LED
88-870-110 Details

Thermo Scientificâ„¢ Block, 40 x 0.5 mL No. of Places: 40

EDGE
Add to Cart

Product Specifications
For Use With (Equipment) Thermo Scientificâ„¢ Digital and Touch Screen Dry Baths/Block Heaters (No compact models)
Capacity (Metric) 0.5 mL
No. of Places 40
Description 40 x 0.5mL block
Type Block
Holds 40 x 0.5mL
Dimensions (L x W x H) 76 x 124 x 39 mm (3 x 4.9 x 1.5 in.)
Lighting LED
88-870-113 Details

Thermo Scientificâ„¢ Block, 1.5 mL and 2.0 mL No. of Places: 18

EDGE
Add to Cart

Product Specifications
For Use With (Equipment) Thermo Scientificâ„¢ Digital and Touch Screen Dry Baths/Block Heaters (No compact models)
Capacity (Metric) 18 x 1.5 mL, 10 x 2 mL
No. of Places 18
Description Mixed block, 1.5mL and 2.0mL
Type Block
Holds 18 x 1.5mL and 10 x 2.0mL
Dimensions (L x W x H) 76 x 124 x 39 mm (3 x 4.9 x 1.5 in.)
Lighting LED
88-870-112 Details

Thermo Scientificâ„¢ Block, 6 mm and 10 mm dia. Dimensions (L x W x H): 76 x 124 x 39 mm

EDGE
Add to Cart

Product Specifications
For Use With (Equipment) Thermo Scientificâ„¢ Digital and Touch Screen Dry Baths/Block Heaters (No compact models)
Description Mixed block, 6mm and 10mm dia.
Type Block
Holds 32 x 6mm and 21 x 10mm
Dimensions (L x W x H) 76 x 124 x 39 mm
Lighting LED
88-870-111 Details

Thermo Scientificâ„¢ Block, 1 x 96-well Elisa No. of Places: 96

Add to Cart

Product Specifications

Blocks for Thermo Scientific&trade; Digital and Touch Screen Dry Baths/Block Heaters > 1 x 96-well Elisa block

Compact
compact-dry-bath

Compact Dry Bath/Block Heater

Maximize valuable bench space with the light weight Thermo Scientificâ„¢ Compact Dry Bath/Block Heater, available with multiple combinations of block sizes for tube size versatility.

Features Include:

  • Designed for precise temperature control
  • Fast heating rate
  • Multiple combination of different size of blocks allows for maximum tube size versatility during experimental procedure
  • 12V low voltage power input
  • Includes lid for improved temperature stability and uniformity
  • Small lightweight design to save valuable bench space

Applications include:

  • Sample preparation
  • Enzyme preservation
  • Enzyme-substrate reactions
  • DNA amplification
thermo-scientific-dry-baths-block-heaters-brochure-thumbnail

Thermo Scientific Dry Baths/Block Heaters Brochure

Reliability you can depend on. Thermo Scientificâ„¢ versatile dry baths / block heaters offer a wide range of blocks to accommodate various tubes.

Thermo Scientific Dry Baths/Block Heaters Brochure (2.1 MB)

Heaters

Blocks

Accessories

Special Offers
