Circulating Baths
Lauda Brinkmann Lp LAUDA Universa U 1645 M
LAUDA Universa U 1645 MCooling thermostat 200-240 V 50/60 HzTechnical FeaturesWorking temperature range -45 200 COperating temperature range -45 200 CAmbient temperature range 5 40 CTemperature stability 0 01 KHeating capacity range 2 8 3 7 kWCurrent max 16 ASize of bath (W x D x H) 200 x 300 x 200 mm Bath opening (WxT) 200 x 300 mmBath volume min / max 10 5 / 16 5 LPump Pressure max 0 7 barPump suction max 0 4 barPump flow rate max (pressure) 25 L/minPump Flow rate max (suction) 23 L/minIn / Outlet connection thread (outside) M16 x 1In / Outlet olives 13 mmOverall dimensions (WxDxH) 310 x 610 x 757 mmWeight 49 kgRefrigerant stage 1 R-1270 (GWP 3) 0 075 kg 0 0 t CO2-eqPower supply 200-240 V 50/60 HzPower plug Power cord with plug (NEMA 6-20P)Cooling Capacity20 C (8) Ethanol 16 kW (50 Hz) 16 kW (60 Hz)-45 C (4) Ethanol 0 07 kW (50 Hz) 0 07 kW (60 Hz)
Lauda Brinkmann Lp LAUDA Universa U 855 M
LAUDA Universa U 855 MCooling thermostat 200-240 V 50/60 HzTechnical FeaturesWorking temperature range -55 200 COperating temperature range -55 200 CAmbient temperature range 5 40 CTemperature stability 0 01 KHeating capacity range 2 8 3 7 kWCurrent max 16 ASize of bath (W x D x H) 150 x 150 x 200 mm Bath opening (WxT) 150 x 150 mmBath volume min / max 5 0 / 8 0 LPump Pressure max 0 7 barPump suction max 0 4 barPump flow rate max (pressure) 25 L/minPump Flow rate max (suction) 23 L/minIn / Outlet connection thread (outside) M16 x 1In / Outlet olives 13 mmOverall dimensions (WxDxH) 310 x 490 x 757 mmWeight 45 kgRefrigerant stage 1 R-1270 (GWP 3) 0 075 kg 0 0 t CO2-eqPower supply 200-240 V 50/60 HzPower plug Power cord with plug (NEMA 6-20P)Cooling Capacity20 C (8) Ethanol 16 kW (50 Hz) 16 kW (60 Hz)-55 C (4) Ethanol 0 02 kW (50 Hz) 0 02 kW (60 Hz)
Lauda Brinkmann Lp LAUDA Universa U 1645 M
LAUDA Universa U 1645 MCooling thermostat 100-125 V 50/60 HzTechnical FeaturesWorking temperature range -45 200 COperating temperature range -45 200 CAmbient temperature range 5 40 CTemperature stability 0 01 KHeating capacity range 1 4 2 0 kWCurrent max 16 ASize of bath (W x D x H) 200 x 300 x 200 mm Bath opening (WxT) 200 x 300 mmBath volume min / max 10 5 / 16 5 LPump Pressure max 0 7 barPump suction max 0 4 barPump flow rate max (pressure) 25 L/minPump Flow rate max (suction) 23 L/minIn / Outlet connection thread (outside) M16 x 1In / Outlet olives 13 mmOverall dimensions (WxDxH) 310 x 610 x 757 mmWeight 49 kgRefrigerant stage 1 R-1270 (GWP 3) 0 075 kg 0 0 t CO2-eqPower supply 100-125 V 50/60 HzPower plug Power cord with plug (NEMA 5-20P)Cooling Capacity20 C (8) Ethanol 16 kW (50 Hz) 16 kW (60 Hz)-45 C (4) Ethanol 0 07 kW (50 Hz) 0 07 kW (60 Hz)
Lauda Brinkmann Lp LAUDA Universa U 845 M
LAUDA Universa U 845 MCooling thermostat 100-125 V 50/60 HzTechnical FeaturesWorking temperature range -45 200 COperating temperature range -45 200 CAmbient temperature range 5 40 CTemperature stability 0 01 KHeating capacity range 1 4 2 0 kWCurrent max 16 ASize of bath (W x D x H) 150 x 150 x 200 mm Bath opening (WxT) 150 x 150 mmBath volume min / max 5 0 / 8 0 LPump Pressure max 0 7 barPump suction max 0 4 barPump flow rate max (pressure) 25 L/minPump Flow rate max (suction) 23 L/minIn / Outlet connection thread (outside) M16 x 1In / Outlet olives 13 mmOverall dimensions (WxDxH) 310 x 490 x 757 mmWeight 45 kgRefrigerant stage 1 R-290 (GWP 3) 0 080 kg 0 0 t CO2-eqPower supply 100-125 V 50/60 HzPower plug Power cord with plug (NEMA 5-20P)Cooling Capacity20 C (8) Ethanol 0 8 kW (50 Hz) 0 8 kW (60 Hz)-45 C (4) Ethanol 0 05 kW (50 Hz) 0 05 kW (60 Hz)
Lauda Brinkmann Lp LAUDA Universa U 1645 M
LAUDA Universa U 1645 MCooling thermostat 100-125 V 50/60 HzTechnical FeaturesWorking temperature range -45 200 COperating temperature range -45 200 CAmbient temperature range 5 40 CTemperature stability 0 01 KHeating capacity range 1 4 2 0 kWCurrent max 16 ASize of bath (W x D x H) 200 x 300 x 200 mm Bath opening (WxT) 200 x 300 mmBath volume min / max 10 5 / 16 5 LPump Pressure max 0 7 barPump suction max 0 4 barPump flow rate max (pressure) 25 L/minPump Flow rate max (suction) 23 L/minIn / Outlet connection thread (outside) M16 x 1In / Outlet olives 13 mmOverall dimensions (WxDxH) 310 x 610 x 757 mmWeight 49 kgRefrigerant stage 1 R-1270 (GWP 3) 0 075 kg 0 0 t CO2-eqPower supply 100-125 V 50/60 HzPower plug Power cord with plug (NEMA 5-20P)Cooling Capacity20 C (8) Ethanol 16 kW (50 Hz) 16 kW (60 Hz)-45 C (4) Ethanol 0 07 kW (50 Hz) 0 07 kW (60 Hz)
Lauda Brinkmann Lp LAUDA Universa U 855 P
LAUDA Universa U 855 PCooling thermostat 200-240 V 50/60 HzTechnical FeaturesWorking temperature range -55 200 COperating temperature range -55 200 CAmbient temperature range 5 40 CTemperature stability 0 02 KHeating capacity range 1 9 2 8 kWCurrent max 12 ASize of bath (W x D x H) 150 x 150 x 200 mm Bath opening (WxT) 150 x 150 mmBath volume min / max 5 0 / 8 0 LPump Pressure max 0 6 barPump flow rate max (pressure) 22 L/minIn / Outlet connection thread (outside) M16 x 1Overall dimensions (WxDxH) 310 x 490 x 736 mmWeight 43 kgRefrigerant stage 1 R-1270 (GWP 3) 0 075 kg 0 0 t CO2-eqPower supply 200-240 V 50/60 HzPower plug Power cord with plug (NEMA 6-20P)Cooling Capacity20 C (6) Ethanol 16 kW (50 Hz) 16 kW (60 Hz)-55 C (3) Ethanol 0 02 kW (50 Hz) 0 02 kW (60 Hz)
Lauda Brinkmann Lp LAUDA Universa U 4230 M
LAUDA Universa U 4230 MCooling thermostat 200-240 V 50/60 HzTechnical FeaturesWorking temperature range -30 200 COperating temperature range -30 200 CAmbient temperature range 5 40 CTemperature stability 0 01 KHeating capacity range 2 8 3 7 kWCurrent max 16 ASize of bath (W x D x H) 300 x 350 x 320 mm Bath opening (WxT) 300 x 350 mmBath volume min / max 19 0 / 47 0 LPump Pressure max 11 barPump flow rate max (pressure) 32 L/minIn / Outlet connection thread (outside) M16 x 1In / Outlet olives 13 mmOverall dimensions (WxDxH) 450 x 690 x 927 mmWeight 69 kgRefrigerant stage 1 R-290 (GWP 3) 0 080 kg 0 0 t CO2-eqPower supply 200-240 V 50/60 HzPower plug Power cord with plug (NEMA 6-20P)Cooling Capacity20 C (8) Ethanol 0 8 kW (50 Hz) 0 8 kW (60 Hz)-30 C (4) Ethanol 0 18 kW (50 Hz) 0 18 kW (60 Hz)
Lauda Brinkmann Lp LAUDA Universa U 630 P
LAUDA Universa U 630 PCooling thermostat 220-240 V 50/60 HzTechnical FeaturesWorking temperature range -30 200 COperating temperature range -30 200 CAmbient temperature range 5 40 CTemperature stability 0 02 KHeating capacity range 2 3 2 8 kWCurrent max 12 ASize of bath (W x D x H) 130 x 150 x 160 mm Bath opening (WxT) 130 x 150 mmBath volume min / max 3 2 / 5 7 LPump Pressure max 0 6 barPump flow rate max (pressure) 22 L/minIn / Outlet connection thread (outside) M16 x 1Overall dimensions (WxDxH) 215 x 460 x 616 mmWeight 28 kgRefrigerant stage 1 R-600a (GWP 3) 0 030 kg 0 0 t CO2-eqPower supply 220-240 V 50/60 HzPower plug Power cord with plug (NEMA 6-20P)Cooling Capacity20 C (6) Ethanol 0 3 kW (50 Hz) 0 3 kW (60 Hz)-30 C (3) Ethanol 0 02 kW (50 Hz) 0 02 kW (60 Hz)
Lauda Brinkmann Lp LAUDA Universa U 1245 P
LAUDA Universa U 1245 PCooling thermostat 200-240 V 50/60 HzTechnical FeaturesWorking temperature range -45 200 COperating temperature range -45 200 CAmbient temperature range 5 40 CTemperature stability 0 02 KHeating capacity range 1 9 2 8 kWCurrent max 12 ASize of bath (W x D x H) 200 x 200 x 200 mm Bath opening (WxT) 200 x 200 mmBath volume min / max 8 5 / 13 0 LPump Pressure max 0 6 barPump flow rate max (pressure) 22 L/minIn / Outlet connection thread (outside) M16 x 1Overall dimensions (WxDxH) 310 x 510 x 736 mmWeight 44 kgRefrigerant stage 1 R-290 (GWP 3) 0 080 kg 0 0 t CO2-eqPower supply 200-240 V 50/60 HzPower plug Power cord with plug (NEMA 6-20P)Cooling Capacity20 C (6) Ethanol 0 8 kW (50 Hz) 0 8 kW (60 Hz)-45 C (3) Ethanol 0 05 kW (50 Hz) 0 05 kW (60 Hz)
Julabo USA Inc CORIO CD-200F R290 EA 115V
Refrigerated/heating circulator, JULABO, CORIO CD-200F, 230V/60Hz, R290 Refrigerant. -20…+150C. 2kW heater. Cooling power 220W at 20C 170W at 0C 130W at -10C 60W at -20C. Pump 16LPM 4.8 PSI. USB plus data-logging. M16x1 pump fittings with 8 and 12mm barbs. 3...4L bath tank. 9.1 x 15.4 x 25.6 in. 57.3lbs
Julabo USA Inc CORIO CD-800F R1270 EA 115V
Refrigerated/heating circulator, JULABO, CORIO CD-800F, 115V/60Hz, R1270 Refrigerant. -40…+150C. 1kW heater. Cooling power 850W at 20C 750W at 0C 400W at -20C 250W at -30C 110W at -40C. Pump 16LPM 4.8 PSI. USB plus data-logging. M16x1 pump fittings with 8 and 12mm barbs. 5...7.5L bath tank. 13 x 18.5 x 27.6 in. 93lbs
Julabo USA Inc DD-200F refrigerated/heating circulator, -20…+200°C, 200W cooling, power, 2kW heating power, internal/external applications, 4L bath tank, adjustable pump 8-23L/min, 1.8-8.7 psi, 8/12 mm hose barbs, USB, Pt100 port, TFT display, 230V/50-60Hz, EA.
JULABO DYNEO™ DD-200F Refrigerated/heating circulator -20…+200 °C ±0.01 °C; 200W cooling @ 200 °C; 200W cooling @ 20 °C; 170W @ 10 °C; 150W @ 0 °C; 100W @ -10 °C; 20W @ -20 °C; 2 kW heater; 3-4 L bath tank; Bath opening (WxL/D): 5.1x5.9/5.9 inches; adjustable flow pump 8-23L/min; 1.5-8.7 psi with 8 and 12 mm hose barbs; for internal/external applications; Color TFT display with central rotary knob for input. Integrated programmer. Multi-lingual. USB port for PC communication; Pt100 port for external temperature control; Dimensions (WxLxH): 9.1x15.4x25.6 inches; 56.7 pounds. 230V/50-60Hz.
Polyscience 7L Space-Saving Refrigerated Circulator, Advanced Digital Controller (-40 to 200°C); 120V, 60Hz
PolyScience™ 7 Liter Space-Saving Refrigerated CirculatorAdvanced Digital Controller-40 to 200°C Working Temperature RangeTemperature Stability: ±0.01°Cooling Capacity at 20°C: 360W1100W HeaterMaximum Suction: 4.3 psi (0.30 bar)Flow Rate: 5.3 gpm (20.1 LPM)120V, 60HzFeatures:• Intuitive 3.75” (9.5 cm) display with touch-pad control• 4 languages: French, German, Spanish, English• Swivel 180™ Rotating Controller• On-board connectivity: USB-A & B, Ethernet, • RS-232/RS-485, and external temperature probe• On-screen prompts• Automatic performance optimization and specific heat tuning• Single-point calibration capability

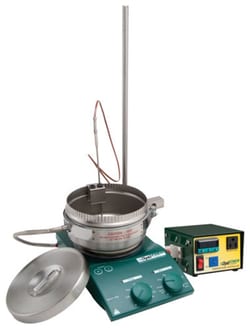

Ace Glass, Inc. Instatherm; oil bath, immerses 1L flasks and smaller, 140mm ID, 150mm OD, 155mm height, 120v/8amp max, includes 9698-20connecting controller cord
Instatherm; oil bath, immerses 1L flasks and smaller, 140mm ID, 150mm OD, 155mm height, 120v/8amp max, includes 9698-20connecting controller cord
