Graduated Cylinders
Used to measure the volume of a liquid, graduated cylinders feature a narrow cylindrical shape with markings along the cylinder that represent the amount of liquid being measured. Graduated cylinders are considered more accurate and precise for measurement purposes than flasks and beakers but should not be used for volumetric analysis.
Graduated cylinders are typically constructed from plastic or glass, with each providing different benefits. Plastic graduated cylinders are impact resistant, with polyethylene graduated cylinders noted for their transparency and polypropylene for its excellent chemical resistance. Glass graduated cylinders are chemically inert, while borosilicate glass offers greater resistance to thermal shock than regular glass.
Graduated cylinders have a solid base or foot for stability and a spout to facilitate pouring out the contents. Because they are somewhat unsteady, some glass cylinders also have a plastic bumper or ring to help prevent accidental breakage if the cylinder falls over.

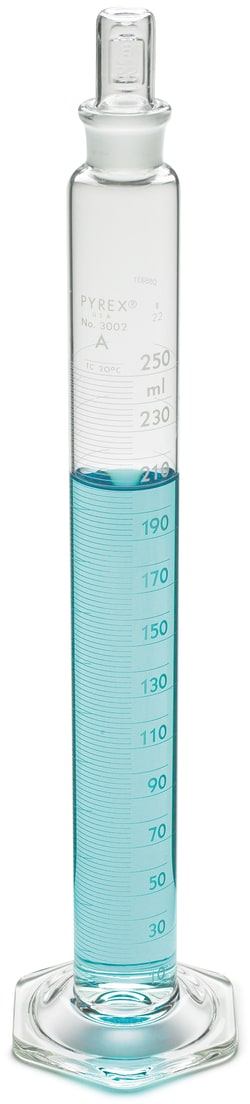

Mixing (graduated) cylinders have ground glass joints instead of a spout or are closed with a stopper. These are generally used to make dilutions.
Typical graduated cylinder capacities range from 10 to 4,000mL. Glass graduated cylinders may be manufactured to ASTM or other specific standards. Some are serialized and may come with certificates of traceability.
Andwin Scientific POLYPROPYLENE GRAD CYLINDER 1L
Polypropylene Graduated Cylinders 1000mL cylinders feature a single scale with raised numeral graduations in 10mL increments. Non-wetting polypropylene surface eliminates concave menisci. Flared top rim. Large spout. Hexagonal base. Chemically resista
Foxx Life Sciences Borosil® Class B TC Graduated Measuring Cylinder with Pour Spout, Hexagonal Base, and Permanent Amber Graduations, 500 mL, 4/CS
Each Borosil® Class B TC Cylinder is calibrated by automatic laser calibration. Certificates can be downloaded by visiting Borosil.com, or by downloading the Borosil app. Borosil® Cylinders are manufactured with hexagonal, spout-aligned bases for improved stability. Permanent amber graduations will not fade, even after years of use. Available from 5mL to 2L. Cylinders comply with ASTM E-1272. In collaboration with Borosil Glass Works, Foxx Life Sciences is proud to bring the outstanding quality of Borosil® Type 3.3 Borosilicate glassware to North America for the first time. Manufactured from the same USP Type 1 borosilicate glass that North American scientists have come to trust, Borosil® Laboratory Glassware offers unparalleled mechanical strength, clarity, and reliability at competitive prices. And thanks to a unique annealing process, Borosil® Glassware is stress-free and incredibly resistant to thermal shock.
Electron Microscopy Sciences Glass Cylinder with Double Metric Scale, 500 mL, 0.2 ml
These glass cylinders with pour spouts feature heavy uniform wall tubing and strong, stable, hexagonal bases. Double metric scale with 0.2 mL interval and tolerance. Cylinders come with bumper guards. Made from borosilicate glass.
Volume: 500 mL
Graduations: 0.2 ml
Bellco Glass, Inc. CL A Graduated Cylinder,500mL Double Metric Scale - TC
Manufactured from Type 1 Class A Borosilicate Glass. Used to contain and measure the volume of a liquid. Features hexagonal bumper guard and white double scale metric graduations. Size: 500ml Dimensions: 53x362mm Graduation interval ml: 0.50
Chemglass Life Sciences 500mL Cylinder, Graduated, Class B, Polypropylene, Blue Scale
500mL Cylinder, Graduated, Class B, Polypropylene, Blue Scale. Cylinders are manufactured from polypropylene. They meet Class B specifications per DIN 12681. Cylinders have ring molded graduations and have blue screening to simplify the measurements.
Chemglass Life Sciences 100mL Cylinder, Graduated, Class B, Polypropylene, Blue Scale
100mL Cylinder, Graduated, Class B, Polypropylene, Blue Scale. Cylinders are manufactured from polypropylene. They meet Class B specifications per DIN 12681. Cylinders have ring molded graduations and have blue screening to simplify the measurements.
Chemglass Life Sciences 1000mL Cylinder, Graduated, Class B, Polypropylene, Blue Scale
1000mL Cylinder, Graduated, Class B, Polypropylene, Blue Scale. Cylinders are manufactured from polypropylene. They meet Class B specifications per DIN 12681. Cylinders have ring molded graduations and have blue screening to simplify the measurements.
Chemglass Life Sciences Cylinder, Graduated, 500mL, Single Scale, To Contain
Cylinder, Graduated, 500mL, Single Scale, To Contain. Calibrated “To Contain”, with white enamel graduations. The 100mL capacity is in accordance with ASTM E-133 and E-1272 and is used in ASTM tests D-86, D-216 and D-447. The 10mL size has a funnel top. Bumper guards are supplied with 25mL thru 2L sizes inclusive.
Chemglass Life Sciences Cylinder, Graduated, 100mL, Single Scale, To Contain
Calibrated ¿To Contain¿, with white enamel graduations. The 100mL capacity is in accordance with ASTM E-133 and E-1272 and is used in ASTM tests D-86, D-216 and D-447.
Chemglass Life Sciences Cylinder, Graduated, 1000mL, Single Scale, To Contain
Cylinder, Graduated, 1000mL, Single Scale, To Contain. Calibrated “To Contain”, with white enamel graduations. The 100mL capacity is in accordance with ASTM E-133 and E-1272 and is used in ASTM tests D-86, D-216 and D-447. The 10mL size has a funnel top. Bumper guards are supplied with 25mL thru 2L sizes inclusive.
Chemglass Life Sciences Cylinder, Large Capacity, 2000mL, Polypropylene, Graduated
Cylinder, Large Capacity, 2000mL, Polypropylene, Graduated. The handle on the Holdfast™ graduated cylinder makes pouring safer and more convenient. The handle is generously sized for large hands but with a slender enough grip for smaller hands. Hand opening is 3 1/2” x 1 1/8”. Cylinders have a double scale and hex base for stability. Steam autoclavable at 121º C.
Chemglass Life Sciences Cylinder, Graduated, 25mL, 14/20 Outer Joint, "To Deliver"
Cylinder, Graduated, 25mL, 14/20 Outer Joint. Cylinders are calibrated to contain at 20¿ C. Supplied without stopper. For standard taper stoppers see CG-3000. Tolerances and subdivisions are the same as CG-8242.
Chemglass Life Sciences Chemglass Graduated Cylinder, Class B, 500 mL, Borosilicate Glass, With Bumper
The Chemglass Class B 500 mL graduated cylinder is a borosilicate glass measuring cylinder calibrated "to deliver" and supplied with a protective bumper to reduce breakage and improve handling.
- 500 mL capacity for routine laboratory measurements.
- Borosilicate glass (Type 3.3) for chemical resistance and thermal stability.
- Class B accuracy compliant with ASTM Specification E1272 for reliable measurements.
- White single metric scale with clear ring-molded graduations for easy reading.
- Protective bumper reduces breakage and improves grip during handling.
- Calibrated "to deliver" for accurate dispensing.
Chemglass Life Sciences Pack, Blue Bonded Closure and Vial, Glass, 2.0mL, 9mm Thread, Clear with Grad Spot, 12 x 32mm, PTFE/Silicone Septa, 3 Packs of 100
Pack, Blue Bonded Closure and Vial, Glass, 2.0mL, 9mm Thread, Clear with Grad Spot, 12 x 32mm, PTFE/Silicone Septa, 3 Packs of 100.• Convenience packs with 2.0mL, 12 x 32mm clear vials• I-D vials have marking spots and graduations (0.5, 1.0 and 1.5mL)• Proper fit assured - caps and vials made to the same specification• Supplied in two-compartment storage trays• Septa fallout common with pre-assembled closures is eliminated• Choose PTFE/red rubber or PTFE/silicone septa• Septa available with or without slitsEasy to Order, Easy to Save!We've made it as easy as possible for you to enjoy significant savings while experiencing the performance of a great little product. If you've never tried vials with bonded closures or if you're already a committed user, just specify the part number from the table below and you'll receive three convenience packs for the two-pack price.
