Stirrer Accessories
Chemglass Life Sciences 12.7mm Tru-Stir Stirrer Shaft Coupling, 5/16" Upper Male Coupling, For Use with CG-2047 Flex Shaft
12.7mm Tru-Stir Stirrer Shaft Coupling, 5/16" Upper Male Coupling, For Use with CG-2047 Flex Shaft. The design of our Tru-Stir stirrer shaft coupling eliminates the need to use rubber hose or universal adapters to attach your stirrer shafts to overhead stir motors. Coupling incorporates a unique helical S.S. spring permitting up to 1/4¿ of offset misalignment and 45¿ of angular misalignment. Coupling is rated for 24 in-lbs of torque without the backlash normally associated with common coil springs. Lower portion of coupling has a nylon adapter with a one piece collar for attachment to 12.7mm (OD) stirrer shafts. Upper adapters permit the coupling to be used with CG-2047 flexible drive shafts. Male Upper Coupling is 5/16". Overall length of the coupling is 4¿. Supplied complete with an allen wrench set.
Chemglass Life Sciences 19mm Chem-Vac Stirrer Bearing, PEEK/PTFE Stabilizer, PTFE, 45/50 Joint Size
19mm Chem-Vac Stirrer Bearing, PEEK/PTFE Stabilizer, PTFE, 45/50 Joint Size. Chem-Vac PTFE stirrer bearing provides a VACUUM TIGHT FLAKE-FREE SEAL. Two versions of the bearing are available, the standard series for 2L and smaller vessel capacities and the stabilizer series that incorporates a PEEK/PTFE stabilizing bushing that is molded to the lower portion of the inner joint. The stabilizer greatly reduces stirrer shaft whip on larger vessels. The bearing consists of a PTFE standard taper body, Glass filled polypropylene screw cap, PEEK Compression spring, PEEK/PTFE sleeve and a glass filled polypropylene loosening nut. The polymer blend sleeve provides a long lasting seal for use up to 500 RPM. Loosening nut above the standard taper inner joint allows easy and quick removal. PLEASE NOTE: PTFE STIRRER SHAFTS ARE NOT RECOMMENDED FOR USE WITH THIS BEARING.

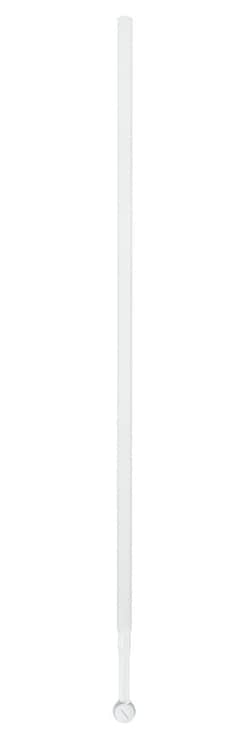

Chemglass Life Sciences Stirring Shaft, 10mm, Chem-Stir, 2L-12L Flasks, 538mm OAL, Complete with PTFE Nut and Bolt
Stirring Shaft, 10mm, Chem-Stir, 2L-12L Flasks, 538mm OAL, Complete with PTFE Nut and Bolt.¿ PTFE is the only contact in the lower radius of the flask, therefore breakage due to dropping the stirrer shaft has been eliminated.¿ Design permits the proper amount of tension to be applied to the blade, thereby preventing the blade from flipping over to the incorrect side during flask insertion.¿ Design permits use with any PTFE stirrer blade with the keyhole shaped cutout for 10mm or 19mm shafts.A 10mm OD stirrer shaft with our patented* Chem-Stir blade attachment system. Shaft has been manufactured w/ ring at the lower end to permit attachment of the blade with a PTFE nut and bolt. Shaft is supplied complete with PTFE nut and bolt. PLEASE NOTE: STIRRER BLADES MUST BE PURCHASED SEPARATELY.THESE SHAFTS ARE NOT TO BE USED WITH ANY TYPE OF PTFE BEARING. FOR POLISHED SHAFTS USED WITH PTFE BEARINGS SEE CG-2078.* US Patent Number 5,326,167
Chemglass Life Sciences Stirrer Blade, PTFE, 19mm, Heavy Duty, for 1000mL Flasks, 35mm Width x 74mm Length, 45/50 minimum joint clearance
Stirrer Blade, PTFE, 19mm, Heavy Duty, for 1000mL Flasks, 35mm Width x 74mm Length, 45/50 minimum joint clearance. Stirrer blade made of 3/16" thick solid PTFE for use with both Chem-Stir™ and button style stirring shafts having a 19mm OD.
Chemglass Life Sciences Brushless DC Motor Only, 1/4HP, 24V, 3/4” Shaft dia., 30-500 RPM, 25in-lb
Brushless DC Motor Only, 1/4HP, 24V, 3/4 Shaft dia.
Uline Wheel Bearing For SpringLoaded
Wheel Bearing For Spring-Loaded Pallet Positioner - 20 X 47 X 14mm
Chemglass Life Sciences Stirrer Turbine, Upper, PTFE, Pilot Plant, 100mm OD, fits 19mm Shaft, 13/64in Blade Thickness
Stirrer Turbine, Upper, PTFE, Pilot Plant, 100mm OD, fits 19mm Shaft, 13/64in Blade Thickness. PTFE six blade turbine style agitator for use with reactor stirrer shafts. Shaft opening is drilled straight through to permit positioning at any height on the shaft.
Chemglass Life Sciences Stirrer Blade, PTFE, Banana Shape, Solid, 10mm, for 2000mL Flasks, 40/50 minimum joint clearance
Stirrer Blade, PTFE, Banana Shape, Solid, 10mm, for 2000mL Flasks, 40/50 minimum joint clearance. Blade is shaped to resemble the contour of a round bottom flask. Blades are solid. Made of 1/8" PTFE to fit 10mm OD stirrer shafts. Minimum joint size listed is the size required to allow passage of the blade.
Chemglass Life Sciences Agitator, PTFE, Four Blade, 5in Diameter, Fits 19mm Shaft Size, 60° Impeller Angle
Agitator, PTFE, Four Blade, 5in Diameter, Fits 19mm Shaft Size, 60¿ Impeller Angle. Agitators are made entirely of PTFE and glass filled PTFE and are for use with 19mm OD stirrer shaft CG-2097 and have 60¿ impeller angles. The 60¿ impellers are set up to stir downwards in a clockwise direction and upwards when rotated counter-clockwise. Agitator hub is open so that it can be positioned anywhere along the shaft. Locks onto shaft with a collet hub and nut and has a glass filled PTFE safety screw. PLEASE NOTE: ANGLED IMPELLARS DESIGNED TO STIR UPWARDS IN A CLOCKWISE DIRECTION ARE AVAILABLE. PLEASE CALL FOR PRICING.
Arrow Engineering PHC-750 Power Hold Clamp
The Arrow Mixing Products PHC-750 fits support stands from 1/2″ to 3/4″ dia. (12 mm to 19 mm) and can be used with Stand ASE-750 for a quick, complete laboratory mixer setup. It is is engineered for precision and durability, making it an essential tool for securing various materials during mixing and processing applications.
