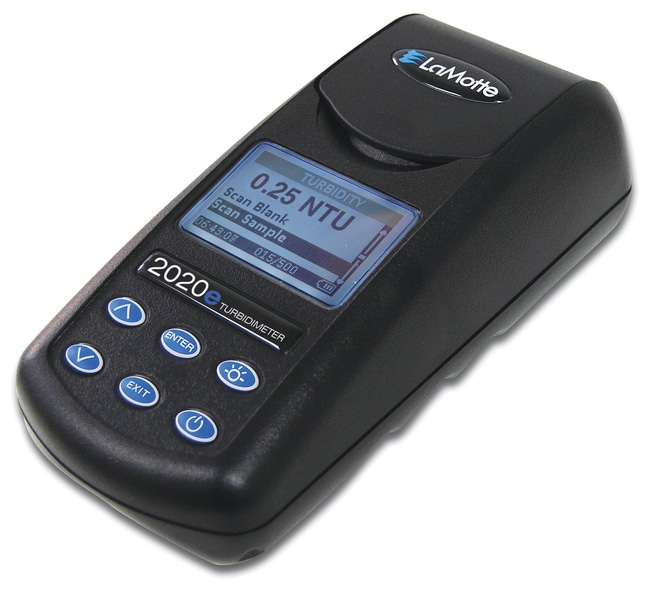

LaMotte™ 2020WE Portable Turbidity Meter
SDPSCI_ED

Catalog No. S02122 Shop All LaMotte Company Products
Change view
Click to view available options
Display Type:
LCD
Catalog No. Display Type
S02122 LCD
1 options

Catalog No. S02122

Supplier: LaMotte™ 1970EPA

Description

Includes

Lithium rechargeable 3.7V battery, four optically selected sample vials with screw caps, standardization package, USB cable and wall plug, instruction manual, waterproof carrying case

For regulatory monitoring, process water testing, and environmental analysis in the field or laboratory.

  • Multi-detector optical configuration assures stability and minimizes stray light and color interferences
  • Readings are determined by signal averaging to minimize fluctuations and have highly repeatable measurements
  • EPA compliance reading mode rounds the reading to meet EPA reporting requirements
  • Simple calibration procedure with microprocessor adjusting calibration curve accordingly
  • USB port interfaces with a datalogger or computer; cable included

  • Auto-Range: 0 to 4000 NTU
  • Readout: 0.01 from 0 to 10.99; 0.1 from 11 to 109.9; 1 from 110 to 4000 NTU
  • Response Time: 5 sec.
  • Accuracy: ±2%; ±3% over 100NTU
  • LCD Display: 6 lines with backlit display
  • Light Source: Tungsten filament lamp
  • Sample Chamber: Accepts 25mm diameter flat-bottom, screw-capped sample tubes
  • L x W x H: 7.5 x 3.5 x 2.5 in. (19.1 x 8.8 x 6.4cm)
  • Languages: English, French, Spanish, Japanese, Chinese, Italian, and Portugese

Compliance

Meets EPA design specifications for NPDWR and NPDES turbidity monitoring programs as specified by USEPA method 180.1 Standard

Specifications

Type Portable Turbidity Meter
Light Source Tungsten
Display Type LCD
Response Time 5 sec.
Includes Lithium rechargeable 3.7V battery, four optically selected sample vials with screw caps, standardization package, USB cable and wall plug, instruction manual, waterproof carrying case
For Use With (Application) Regulatory monitoring, process water testing and environmental analysis in the field or laboratory
Accuracy ±0.05, ±2%, ±3%
Resolution 0.01, 0.1, 1 NTU/FNU
Turbidity 0 to 4000 NTU/FNU, 0 to 10500 ASBC, 0 to 150 EBC
Dimensions (L x W x H) 7.5 x 3.5 x 2.5 in. (19.1 x 8.8 x 6.4 cm)
Length (English) 7.5 in.
Length (Metric) 19.1 cm
Width (English) 3.5 in.
Width (Metric) 8.8 cm
Height (English) 2.5 in.
Height (Metric) 6.4 cm
Battery Type Lithium rechargeable
Voltage 3.7 V
Certifications/Compliance NPDWR, NPDES, USEPA
