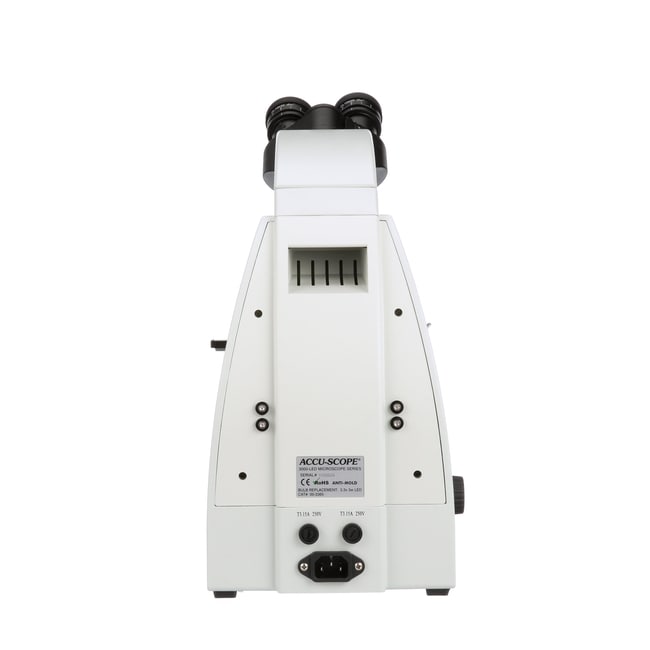

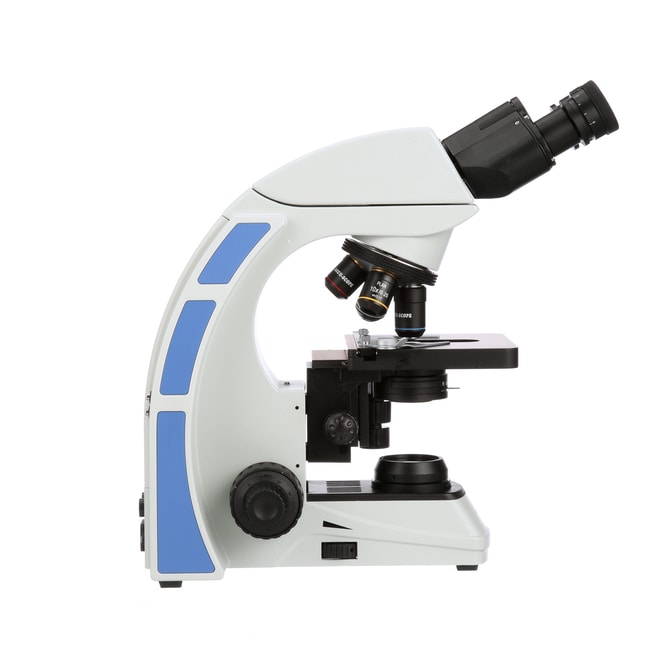

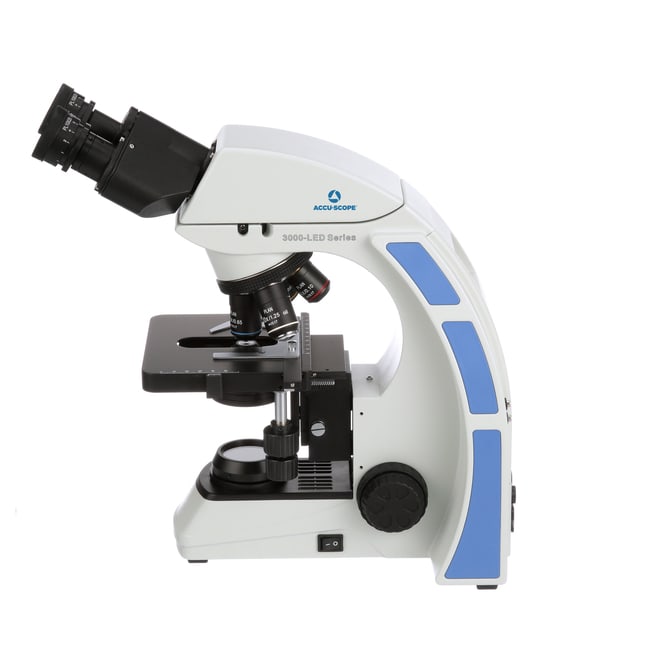

ACCU-SCOPE™ 3000-LED Series Binocular Microscope with Infinity Plan Achromat Objectives
SDP

Catalog No. 01189243 Shop All ACCU-SCOPE Products
Click to view available options
Head Style:
Binocular, 30° Inclined

Catalog No. 01-189-243

Supplier: ACCU-SCOPE™ 3000LED

Description

The ACCU-SCOPE™ 3000-LED Series provides high contrast images with outstanding resolution, precision design and enhanced illumination. This microscope features a binocular viewing head, HWF Plan 10x or 20 mm focusing eyepieces, and infinity plan achromat objectives.

  • Optical System: Infinity Optical System, f = 180 mm
  • Viewing Head: Binocular or Trinocular Siedentopf type, inclined 30° with interpupillary distance adjustable from 48 to 75 mm, 360° rotatable
  • Eyepieces: HWF Plan 10x eyepiece, 20 mm field of view with built-in diopter adjustment, a pointer is standard in one eyepiece, eyepieces are locked-in to prevent classroom tampering.
  • Nosepiece: Rear facing quadruple, ball bearing nosepiece with positive click stops to ensure parcentration
  • Objectives: Infinity plan achromat 4x, 10x, 40xR and 100xR oil
  • Stage: Mechanical stage
  • Condenser: N.A. 1.25 Abbe condenser (with a slot for phase contrast sliders) on a rack and pinion with iris diaphragm, glass lens in condensing system protects iris diaphragm from classroom tampering. Phase contrast (requires PH objectives to work), darkfield and diffuser sliders.
  • Stand: Cast alloy aluminum
  • Illumination: 3-watt LED with variable intensity control, LED bulb is rated for over 25,000 hours of continued use
  • Focusing System: Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides
  • Accessories: Dust cover, immersion oil and instruction manual, universal power supplyCertification: ISO 9001: 2018 and ISO 14001: 2018, UL approved, CE anti-mold Warranty: 5-year limited warranty for parts, labor, and electronic components, 1-year warranty on LED bulb

Specifications

Eyepiece HWF 10X/20 mm
Head Style Binocular, 30° Inclined
Lighting Type LED
Magnification Power 40X, 100X, 400X, 1000X
Model 3000-LED
Objective Types Infinity Plan Achromatic
Product Type Binocular LED Microscope
Voltage 110/240 V
