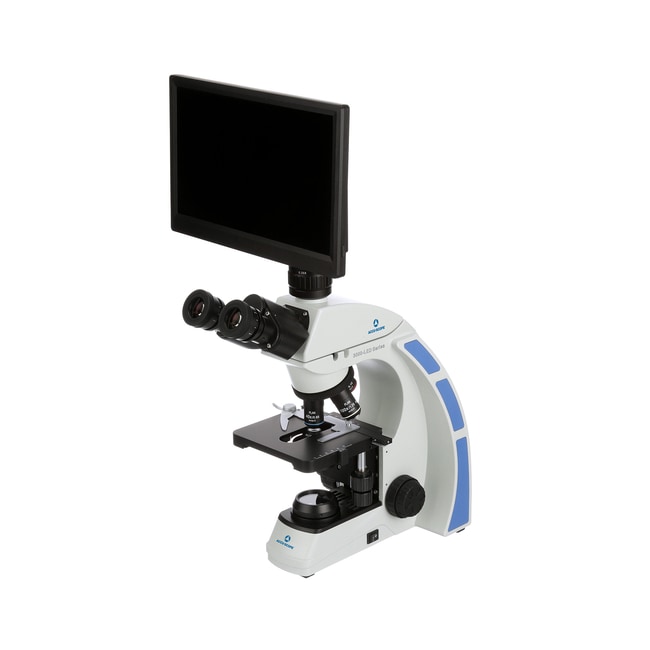

ACCU-SCOPE™ 3000-LED Series Trinocular Microscope with Excelis™ HD Lite Camera and Monitor
SDP

Catalog No. 01189241 Shop All ACCU-SCOPE Products
Change view
Click to view available options
Head Style:
Trinocular, 30° Inclined
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Head Style
01-189-241 Trinocular, 30° Inclined
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. 01-189-241 Supplier ACCU-SCOPE™ Supplier No. 3001LED6HDS

Description

The ACCU-SCOPE™ 3001-LED-6HDS delivers outstanding optical performance, value and resolution to meet the exacting standards of life science professionals and students. This 3001-LED-6HDS is a trinocular digital microscope with integrated Excelis™ HD camera and monitor.

  • Optical System: Infinity Optical System, f = 180 mm
  • Viewing Head: Binocular or Trinocular Siedentopf type, inclined 30° with interpupillary distance adjustable from 48 to 75 mm, 360° rotatable
  • Eyepieces: HWF Plan 10x eyepiece, 20 mm field of view with built-in diopter adjustment, a pointer is standard in one eyepiece, eyepieces are locked-in to prevent classroom tampering.
  • Camera: Excelis™ AU-300-HD camera and 0.50x c-mount with monitor
  • Nosepiece: Rear facing quadruple, ball bearing nosepiece with positive click stops to ensure parcentration
  • Objectives: Infinity plan achromat 4x, 10x, 40xR and 100xR oil
  • Stage: Mechanical stage
  • Condenser: N.A. 1.25 Abbe condenser (with a slot for phase contrast sliders) on a rack and pinion with iris diaphragm, glass lens in condensing system protects iris diaphragm from classroom tampering. Phase contrast (requires PH objectives to work), darkfield and diffuser sliders.
  • Stand: Cast alloy aluminum
  • Illumination: 3-watt LED with variable intensity control, LED bulb is rated for over 25,000 hours of continued use
  • Focusing System: Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides
  • Accessories: Dust cover, immersion oil and instruction manual, universal power supplyCertification: ISO 9001: 2018 and ISO 14001: 2018, UL approved, CE anti-mold Warranty: 5-year limited warranty for parts, labor, and electronic components, 1-year warranty on LED bulb

Specifications

Eyepiece HWF 10X/20 mm
Head Style Trinocular, 30° Inclined
Lighting Type LED
Magnification Power 40X, 100X, 400X, 1000X
Model 3000-LED
Objective Types Infinity Plan Achromatic
Product Type Digital Microscope System Package
Voltage 110/240 V
