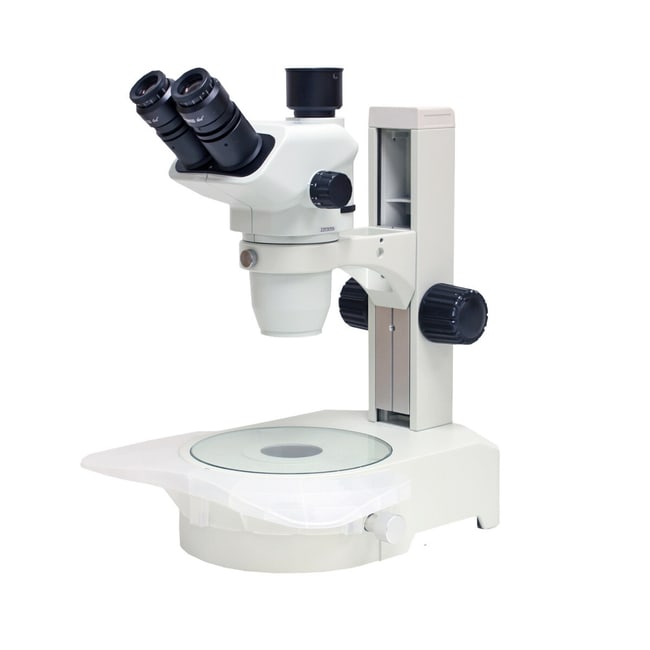

ACCU-SCOPE™ 3076-DIA Trinocular Microscope with LED Diascopic Stand
SDP

The ACCU-SCOPE™ 3076-DIA features a trinocular viewing head, inclined 45°, rotatable 360° WF10x or 22 mm eyepieces with built in diopter adjustments, diascopic focusing stand for brightfield and oblique illumination observation methods, 360° rotatable mirror, and an integrated LED.

Supplier:  ACCU-SCOPE™ 3076DIA

Catalog No. 01-189-227


Only null left
Add to Cart

Description

Description

  • Optical System: Greenough
  • Viewing Head: Binocular or Trinocular viewing head, inclined 45°.
  • Interpupillary Distance Adjustment: 54 to 76 mm, diopter adjustment ± 5 mm.
  • Eyepieces: WF10x focusable eyepieces, 22 mm field of view. Eyeguards included.
  • Objectives: Zoom magnification objective 0.67x to 4.5x.
  • Anti-fungal treatment protects the optical system in hot, humid environments.
  • Focusing System: Dual focusing knobs with adjustable tension control.
  • Stage: Diffused stage plate in the base provides even illumination.
  • Stand: Cast aluminum alloy. LED diascopic stand, 360° rotatable mirror with polished mirror on one side, silver metallic on the other. Plastic arm rest. Variable transmitted coarse focus stand, 100 mm focusing travel, pod holder, 180 mm glass stage plate, and external control pad,
  • Accessories: Dust cover and instruction manual.
  • Certification: ISO 9001: 2018 and ISO 14001: 2018
  • Warranty: 5-year limited warranty for parts, labor, and electronic components.1 year warranty on LED bulb
Specifications

Specifications

110/120 V
Zoom Stereo
LED
6.7X to 45X
Trinocular, 45° Inclined
10X/22 mm
