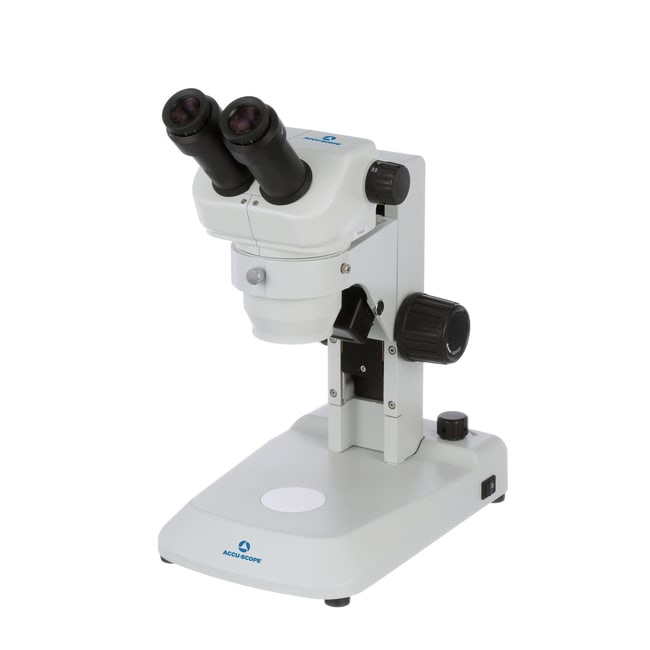

ACCU-SCOPE™ 3078-LED Binocular Zoom Stereo Microscope on LED Stand

The ACCU-SCOPE™ 3078-LED microscope incorporates a newly designed optical system which provides sharp, high resolution, 3-dimensional views of image samples. The 3078-LED features a binocular viewing head, WF10x or 20 mm, 0.8x to 3.5x zoom range (8x to 35x with 10x eyepieces).

Supplier:  ACCU-SCOPE™ 3078LED

Catalog No. S012478

Description

• Optical System: Greenough
• Viewing Head: Binocular or Trinocular viewing head, inclined 45°.
• Interpupillary Distance Adjustment 54 to 75 mm, diopter adjustment ± 5 mm.
• Eyepieces: WF10x focusable eyepieces, 20 mm field of view. Eyeguards included.
• Objectives: Zoom magnification objective 0.8x to 3.5x (8x to 35x with 10x eyepieces). 1x glass shield included.
• Focusing System: Dual focusing knobs with adjustable tension control.
• Stage: Diffused stage plate in the base provides even illumination.
• Stand: Variable LED incident and transmitted illumination, coarse focusing stand, 100 mm focusing travel, 5 w variable LED transmitted and reflected illuminators, pod holder, and universal power supply (110 V to 240 V).
• Accessories: Dust cover and instruction manual.
• Certification: ISO 9001: 2018 and ISO 14001: 2018
• Warranty: 5-year limited warranty for parts, labor, and electronic components. 1-year warranty on LED bulb.

Specifications

• Voltage: 110/240 V
• Objective Types: Zoom Stereo
• Lighting Type: LED

• Magnification Power: 8X to 35X
• Head Style: Binocular, 45° Inclined
• Eyepiece: WF 10X/20 mm
