3B Scientific™ Control Unit for Critical Potential Tubes
SDPSCI_ED

Catalog No. S08152 Shop All 3B Scientific Products
Change view
Click to view available options
:

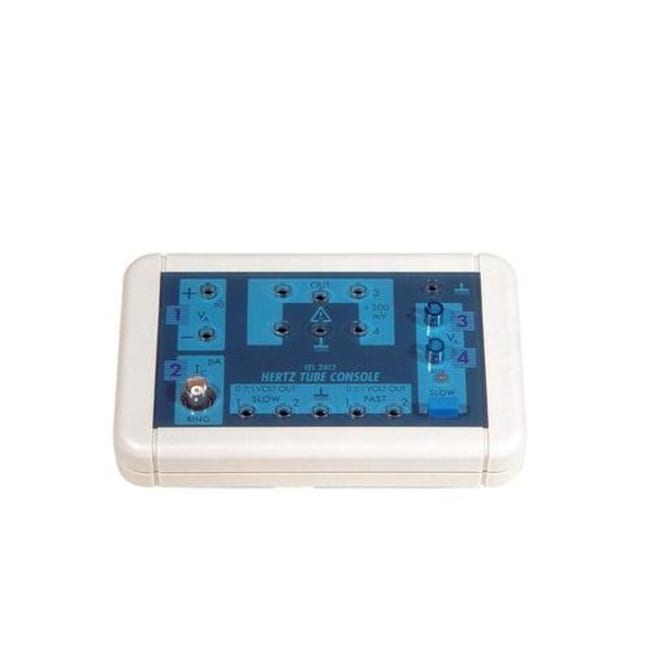

Control unit for critical potential tubes; 12VAC; 115V 50/60Hz
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No.
S08152 Control unit for critical potential tubes; 12VAC; 115V 50/60Hz
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. S08152 Supplier 3B Scientific™ Supplier No. U186501115

Description

Allows recording of acceleration voltage as function of anode current.

  • Equipped with output for sawtooth acceleration voltages, adjustable upper and lower limits of acceleration voltage
  • Integrated pico-ammeter amplifier for anode current measurement
  • Slow sawtooth voltage (∽6 seconds per cycle) is available with interface or XY-recorder
  • Sawtooth voltage with repetition rate of 20Hz is available for oscilloscopic observations

  • Input: anode current measurement via BNC jack
Outputs:
  • Tube: Saw tooth acceleration voltage of 0 to 60V 20Hz
  • Fast: voltage signal of 0 to 1V proportional to acceleration voltage, for oscilloscopic observations
  • Slow: voltage signal of 0 to 1V proportional to acceleration voltage, for recording data with XY-recorder or interface
  • Anode current: voltage signal of 0 to 1V proportional to anode current (1V/nA)
  • Supply voltage: 12VAC
  • Dimensions: 17 x 10.5 x 4.5cm3

Specifications

Product Type Control unit for critical potential tubes
