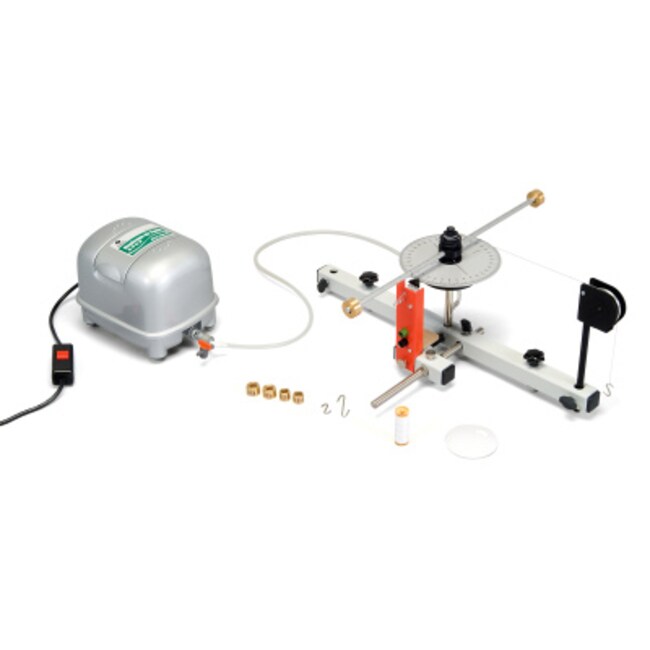

3B Scientific™ Rotating System on Air Bed
SDPSCI_ED

Catalog No. S05510 Shop All 3B Scientific Products
Change view
Click to view available options
115V; 50/60Hz
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No.
S05510 115V; 50/60Hz
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. S05510 Supplier 3B Scientific™ Supplier No. U8405680115

Description

Includes

  • 1 Air bed
  • 1 Rotating disc with cross bar
  • 1 Multiple pulley
  • 1 Release mechanism
  • 2 S-shaped hooks 1.00g
  • 1 S-shaped hook 2.00 g
  • 1 Set of weights (2 12.5g, 2 25g, 2 50g)
  • 1 Compressor for connection to mains
  • 1 Silicon tubing with by-pass valve (not illustrated)
  • 1 Pulley
  • 1 Stand rod with 3 securing screws and 2 screws for levelling
  • 1 Stand rod with 2 securing screws
  • 1 Stand rod, 250 mm
  • 1 Levelling disc
  • 1 Roll of cotton thread

Apparatus for investigating frictionless rotation.

  • Protractor scale: 0 to 360°
  • Scale divisions: 1°
  • Length of cross bar: ca. 440mm
  • Radii of perforations: 30 to 210mm
  • Separation of perforations: 20mm
  • Radii of multiple pulley: 5.0mm/10.0mm/15.0mm
  • Moment of inertia of disc with cross bar: 0.16g/m2
  • Maximum moment of inertia: 7.1g/m2
  • Minimum driving torque: 0.05mN m
  • Maximum driving torque: 0.60mN m

Specifications

Product Type Rotating System
For Use With (Application) For investigating frictionless rotation
Includes 1 Air bed, 1 rotating disc with cross bar, 1 multiple pulley, 1 release mechanism, 2 S-shaped hooks 1g, 1 S-shaped hook 2g, 1 Set of weights (2x 12.5g, 2x 25g, 2x 50g), 1 compressor for connection to mains, 1 Silicon tubing with by-pass valve (not illustrated), 1 pulley, 1 Stand rod with 3 securing screws and 2 screws for leveling, 1 stand rod with 2 securing screws, 1 stand rod, 250mm, 1 leveling disc, 1 roll of cotton thread
Weight (English) 18.08 lb.
Weight (Metric) 8.2 kg
Voltage 115 V
