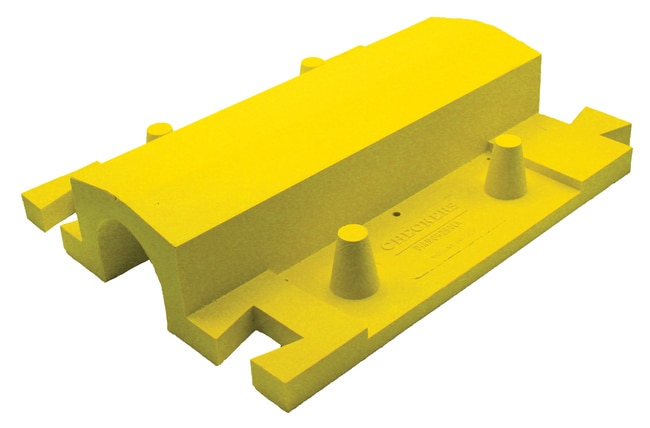

Checkers 6.5 in. Custom Diamondback™ Rubber Hose Ramp Systems Tunnel

With tunnels, ramps and tunnel connectors available, Diamondback™ hose bridge systems allow the ability to connect any number of tunnel options as required by the task at hand.

Supplier:  Checkers UHB5060T

Catalog No. 17-005-585

Description

• Checkers Diamondback 6.5 in. hose bridge system provides protection for valuable cable and hose lines while ensuring a safer method of passage for vehicles.
• They replace wooden and metal fabricated ramps and can be used to protect lines up to 6.5 in. in diameter.
• High density, all-weather polyurethane construction protects from damage by physical pressure and reduces cable and hose maintenance and replacement costs.
• The lightweight, modular design of interlocking sections provides multi-length flexibility.
• Checkers Hose Bridge Systems are intended for temporary installations only.

Specifications

• Color: Yellow
• Size: Standard
• For Use With (Equipment): Ideal for creating a pedestrian/vehicle bridge where large diameter hoses/cables are needed
• Quantity: 1
• Dimensions (L x W x H): 17.5 in. x 18.25 in. x 8.5 in.
• Length (Metric): 0.4445 m
• Width (Metric): 0.46355 m
• Height (Metric): 0.2159 m
• Diameter (Metric) Interior: 0.1778 m
• Weight (Metric): 6.8 kg

• Product Type: Connector
• For Use With (Application): Hose Bridges are for rubber tired vehicles only (not for equipment with metal tracks)
• IP Rating: None
• Dimensions (L x W): 17.5 in. x 18.25 in.
• Length (English): 17.5 in.
• Width (English): 18.25 in.
• Height (English): 8.5 in.
• Diameter (English) Interior: 7 in.
• Weight (English): 32 lbs.
