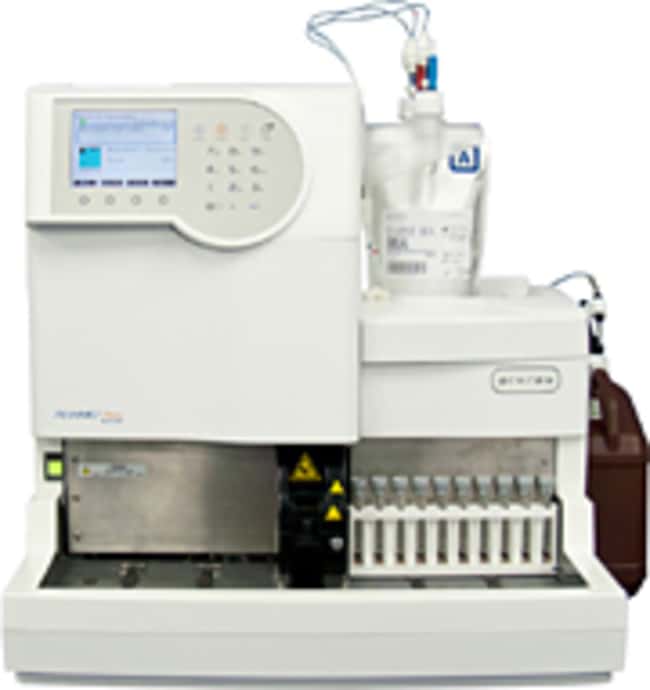

Arkray Adams HA 8180V Analyzer

Catalog No.	Sample Type
21-377-286	Urine

Catalog No. 21-377-286 Supplier Arkray Supplier No. 100675

Description

The Adams HA-8180V Analyzer delivers fast, precise HbA1c results with minimal operator intervention. The HA-8180V enhances workflow efficiency, improves patient turnaround, and offers reliable accuracy to support diabetes monitoring in any clinical lab.

• Fully-automated HPLC glyco‐hemoglobin analyzer: The ADAMS A1c HA‐8180V uses high‐performance liquid chromatography (HPLC) – the gold standard for HbA1c measurement – ensuring highly accurate and reliable detection of glycohemoglobin levels in whole blood or hemolysate samples
• Dual modes for flexible workflows (Fast Mode and Variant Mode):
  • Fast Mode: Provides rapid turnaround at roughly 48 seconds per test – ideal for high-throughput environments or routine monitoring. :contentReference[oaicite:2]{index=2}
  • Variant Mode: Processes samples in about 90 seconds per test and supports hemoglobin variant detection (e.g. HbS, HbC, and flags for HbD/HbE), enabling accurate HbA1c measurement even in patients with hemoglobin variants.
• Broad measurement scope – HbA1c plus HbF detection: The unit measures stable HbA1c (S‐A1c) and fetal hemoglobin (HbF), and in Variant Mode can detect variants such as HbS and HbC (plus flagging HbD/HbE), helping avoid misinterpretation of HbA1c due to variant interference.
• Exceptional precision and accuracy: The analyzer delivers low coefficient of variation (CV ≤ 1%), giving clinicians confidence in the reliability and reproducibility of results – critical for diagnosis and long‐term monitoring of diabetes.
• Low sample volume requirement: Only ~14 μL of whole blood is needed per test, minimizing patient burden and allowing efficient use of scarce samples.
• High throughput and capacity: The system can process up to roughly 37 tests/hour, making it suitable for busy labs. It supports sample racks with one‐way (50 samples) or loop (100 samples) loading, enabling continuous, walk‐away operation.
• User‐friendly design and automation reduces workload:
  • Cap‐piercing sampler: allows capped blood collection tubes to be loaded directly, eliminating manual sample preparation and improving biosafety.
  • Large color LCD display: shows reagent levels and chromatogram graphs, providing intuitive monitoring and status feedback.
  • Built‐in thermal printer (58 mm width): enables on‐the‐spot printing of results for record‐keeping or reporting.
  • Memory capacity: can store up to 900 measurement results (including calibration data), facilitating data management and traceability.
  • Flexible connectivity: supports RS‐232C serial communication (bi‐directional) or Ethernet (optional), enabling integration with lab information systems (LIS).
• Minimal maintenance and lower operating cost: The integrated column design eliminates the need for frequent pre-filter changes. Combined with efficient aluminium reagent supply, this reduces reagent and maintenance costs while ensuring consistent performance.
• Compact, benchtop footprint suitable for clinical labs: The unit measures 530 mm x 530 mm x 530 mm and weighs roughly 39 kg (plus ~4 kg for the sampler) – compact enough for typical lab benches while still offering full automation and high performance.
• Regulatory clearance and clinical diagnostic use: The HA‐8180V is cleared (FDA 510(k)) for use as an aid in the diagnosis and monitoring of diabetes mellitus – making it suitable for professional diagnostic labs.
• Reliable long-term glucose monitoring support: By measuring HbA1c – a widely accepted marker for long-term glycemic control – the analyzer helps clinicians track patient blood glucose over time, guide treatment, and assess risk of diabetes-related complications.

Specifications

• Type: Hemoglobin Analyzer
• Sample Type: Urine

The ADAMS A1c HA‐8180V Analyzer offers rapid, fully automated HbA1c testing with variant detection, designed to streamline workflows in busy clinical laboratories.
