Brandtech™ Benchtop LHS Pipet Robot

Catalog No.	Volume (Metric)
03-840-317	202.93 L
03-840-316	152.93 L

Catalog No. 03-840-317 Supplier Brandtech™ Supplier No. LHSPKG2

Description

Built for efficiency and reproducibility, they reduce hands-on time for PCR, ELISA, serial dilution, and sample preparation workflows.

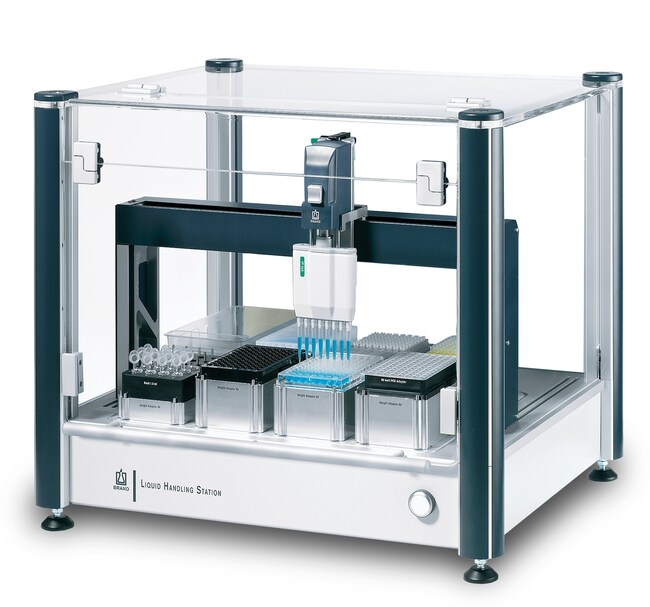

• The Liquid Handling Station Flow (LHS Flow) are compact benchtop automated liquid handling systems designed to simplify repetitive pipetting workflows while improving consistency and efficiency.
• Intuitive software enables users to create and modify methods quickly, without requiring programming experience, making automation accessible for a wide range of laboratory applications.
• Key Features and Benefits:Automates routine pipetting tasks, freeing laboratory personnel for Higher-value work User-friendly software allows method creation in minutes with no programming experience required compact benchtop footprint fits easily into Space-constrained laboratories quiet operation with adjustable settings to accommodate various workflows.
• Cost-effective automation solution for Small- to Medium-volume sample processing reduces manual pipetting errors and improves reproducibility across experiments flexible worktable configuration supports a variety of labware formats and applications responsive technical support, installation assistance, and training available.
• Performance Specifications:Single-channel volume ranges: 150 L, 10200 L, 401000 L8-channel volume ranges: 150 L, 20300 L, 401000 L working positions: Seven configurable work positions (P2P8) plus P1 dedicated for waste disposal Applications:PCR and qPCR setup ELISA preparation enzyme assays serial dilutions cherry picking plate replication aliquoting general sample preparation.
• Versatile design:Seven configurable working positions support microplates (24-, 96-, and 384-well), tubes, vials, reservoirs, and other laboratory vessels supports diverse assay and sample preparation workflows easily adapts to changing laboratory requirements compact Footprint:Approximate dimensions with door closed (Width x Depth x Height): LHS: 24 x 20 x 21 in.; LHS Flow: 24 x 21 x 27 in. Approximate dimensions with door open (Width x Depth x Height): LHS: 24 x 20 x 28 in.; LHS Flow: 24 x 21 x 28 in.

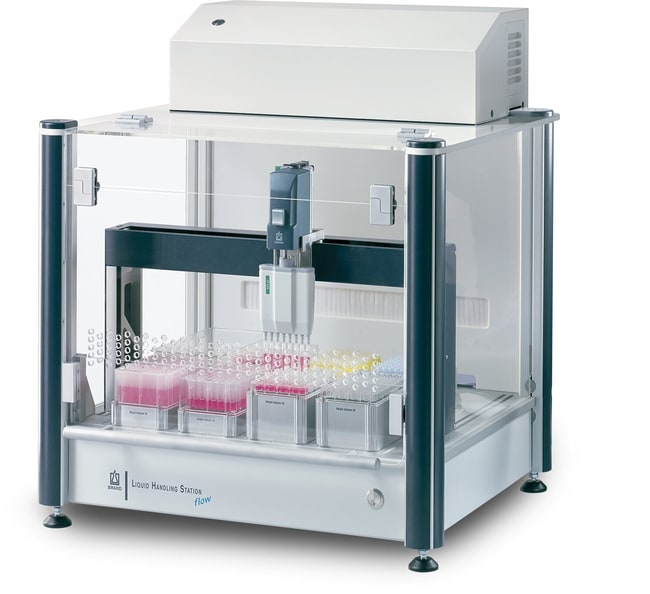

• One of the smallest footprints in its class fits conveniently on laboratory benches and under overhead cabinets available configuration for applications requiring a controlled environment, the LHS Flow model incorporates a built-in horizontal laminar flow enclosure to help maintain contamination-free liquid handling conditions.
• The system is designed to meet ISO 14644-1 Class 5 and GMP Annex 1 Class A requirements.Designed for reliability, flexibility, and ease of use, the LHS and LHS Flow systems help laboratories improve productivity, enhance reproducibility, and streamline everyday liquid handling workflows.
• Automate repetitive pipetting tasks with intuitive software, flexible configurations, and a compact benchtop footprint.

Specifications

• Product Type: Automated Pipetting System
• Channels: 1, 8
• Material: Stainless Steel
• Volume (Metric): 202.93 L
• For Use With (Application): Automated Liquid Handling and Pipetting
• For Use With (Equipment): LHS and LHS Flow Systems
• Includes: Motor Control Unit, FlowBox Filtration Unit, Operating Software, Operating Manual, Power Cable, USB cable, 24 V DC Power Adapter for FlowBox, Protective Screen, Documentation, and On-site Training
• Interface: 2 x USB
• Sterility: Non-sterile
• Dimensions (L x W x H): 51.5 x 59.5 x 66.2 cm (20.28 x 23.43 x 26.06 in.)
• Width (English): 23.43 in.
• Width (Metric): 59.5 cm
• Height (English): 26.06 in. (door closed), 27.17 in. (door open)
• Height (Metric): 66.2 cm (door closed), 69 cm (door open)
• Depth (English): 20.28 in.
• Depth (Metric): 51.5 cm
• Weight (English): 78 lb.
• Weight (Metric): 35 kg
• Voltage: 100/240 V
• Frequency: 50/60 Hz
