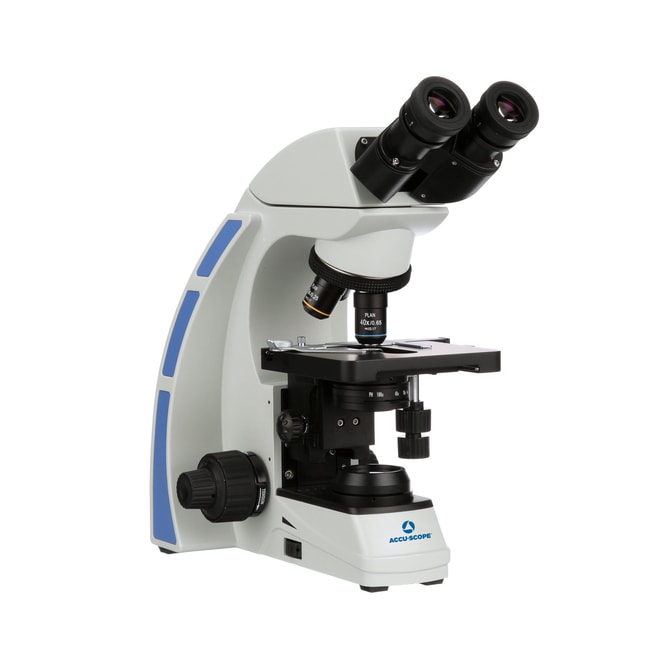

ACCU-SCOPE™ Binocular Microscope with Infinity Plan Achromat 4x, 10x and 40xR Objectives
SDP

Catalog No. 01000946 Shop All ACCU-SCOPE Products
Change view
Click to view available options
Head Style:
Binocular Digital, 30° Inclined, 360° Rotating
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Head Style
01-000-946 Binocular Digital, 30° Inclined, 360° Rotating
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. 01-000-946 Supplier ACCU-SCOPE™ Supplier No. 3000LED40

Description

The 3000-LED Microscope Series delivers outstanding optical performance. 3000-LED-40 features binocular viewing head, Infinity Plan achromat 4x, 10x, and 40xR objectives, Mechanical stage.

  • Binocular viewing head, inclined 30°, rotatable 360°
  • HWF Plan 10x/20 mm focusing eyepieces (paired - one w/pointer), with eyeguards
  • Reversed quadruple nosepiece
  • Infinity Plan achromat 4x, 10x, 40xR and 100xR oil objectives
  • Mechanical stage, 140 X 132 mm
  • Abbe condenser, N.A. 1.25 with iris diaphragm (with slot for sliders)
  • Coaxial coarse and fine focusing controls
  • 3 watt LED variable illuminator
  • Dust cover, power cord, immersion oil and instruction manual

Specifications

Eyepiece HWF 10X/20 mm
Head Style Binocular Digital, 30° Inclined, 360° Rotating
Lighting Type LED
Magnification Power 40X, 100X, 400X
Model ACCU-SCOPE
Objective Types Infinity Plan Achromatic
Product Type Binocular LED Microscope
Voltage 110/240 V
