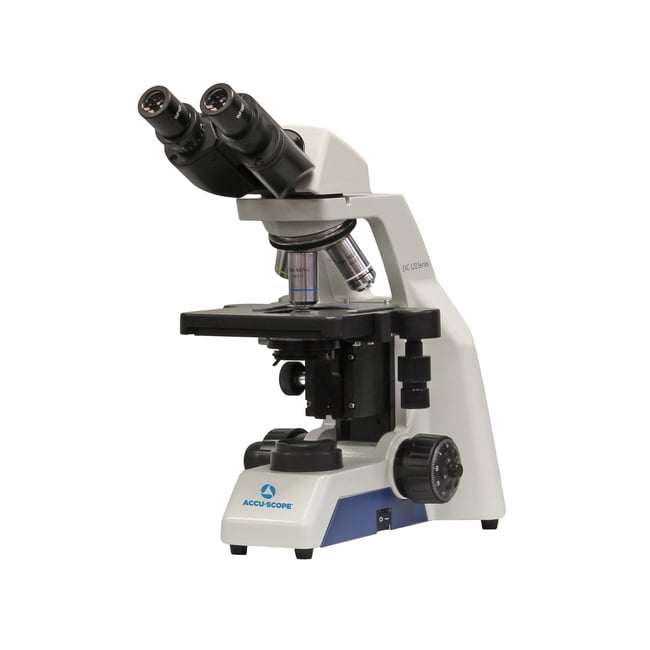

ACCU-SCOPE™ Binocular Microscope with Plan Achromat Objectives
SDPSCI_ED

Catalog No. S00162 Shop All ACCU-SCOPE Products
Change view
Click to view available options
Objective Types:
Plan Achromatic
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Objective Types
S00162 Plan Achromatic
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. S00162 Supplier ACCU-SCOPE™ Supplier No. EXC120PL
Only null left
Add to Cart
Add to Cart

Description

The EXC-120-PL features DIN Plan 4x, 10x, 40xR and 100xR oil objectives, Rackless Mechanical stage w/ low position coaxial controls.

  • Binocular viewing head, inclined 30°, rotatable 360°
  • WF10x/18.5 mm eyepiece (paired - one w/pointer), diopter adjustment
  • Reversed quadruple nosepiece
  • DIN Plan Achromat 4x, 10x, 40xR and 100xR oil objectives
  • Rackless mechanical stage w/ low position coaxial controls
  • Abbe condenser, N.A. 1.25 with iris diaphragm and filter holder
  • Coaxial coarse and fine focusing controls
  • Variable LED illuminator, UL Listed
  • Dust cover, power cord and manual

Specifications

Eyepiece WF 10X/18.5 mm
Head Style Binocular, 30° Inclined, 360° Rotating
Lighting Type LED
Magnification Power 40X, 100X, 400X, 1000X
Model ACCU-SCOPE
Objective Types Plan Achromatic
Product Type Binocular LED Microscope
Voltage 110/240 V
