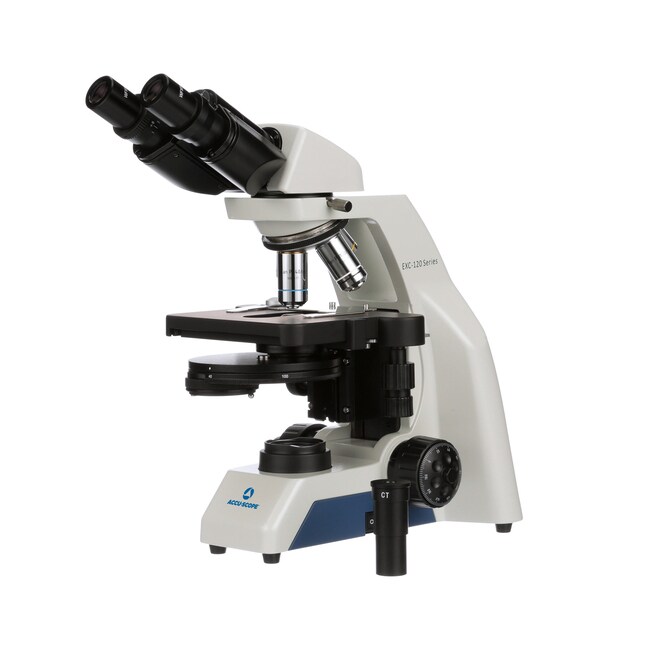

ACCU-SCOPE™ Binocular Microscope with Turret Phase System
SDPSCI_ED

Catalog No. S00161 Shop All ACCU-SCOPE Products
Change view
Click to view available options
Head Style:
Binocular Digital, 30° Inclined, 360° Rotating
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Head Style
S00161 Binocular Digital, 30° Inclined, 360° Rotating
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. S00161 Supplier ACCU-SCOPE™ Supplier No. EXC120PH
Only null left
Add to Cart
Add to Cart

Description

The EXC-120-PH features DIN Plan Phase Achromat 10x, 20x, 40xR and 100xR oil objectives.

  • Binocular viewing head, inclined 30°, rotatable 360°
  • WF10x/18.5 mm eyepiece (paired - one w/pointer), diopter adjustment
  • Reversed quadruple nosepiece
  • DIN Plan Achromat 4x, 10x, 40xR and 100xR oil objectives
  • Rackless mechanical stage w/ low position coaxial controls
  • Abbe condenser, N.A. 1.25 with iris diaphragm and filter holder
  • Coaxial coarse and fine focusing controls
  • Variable LED illuminator, UL Listed
  • Dust cover, power cord and manual

Specifications

Eyepiece WF 10X/18.5 mm
Head Style Binocular Digital, 30° Inclined, 360° Rotating
Lighting Type LED
Magnification Power 100X, 200X, 400X, 1000X
Model ACCU-SCOPE
Objective Types Plan Achromatic Phase
Product Type Binocular LED Microscope
Voltage 110/240 V
