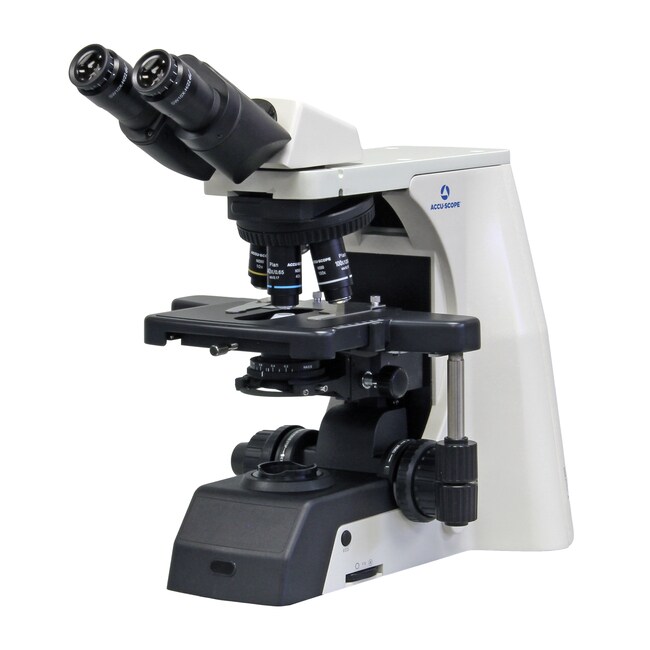

ACCU-SCOPE™ Binocular with NIS Infinity Plan Objectives

Catalog No.	Head Style
01-000-981	Binocular, 30° Inclined, 360° Rotating

Catalog No. 01-000-981

Supplier: ACCU-SCOPE™ EXC500

Description

The EXC-500 is a versatile microscope designed for clinical, academic, and research environments. It features advanced optics, ergonomic design, and multiple contrast methods, ensuring high-quality imaging for a variety of applications.

• Programmable LCD includes Light Intensity Memory (LIM) and Color Temperature Memory

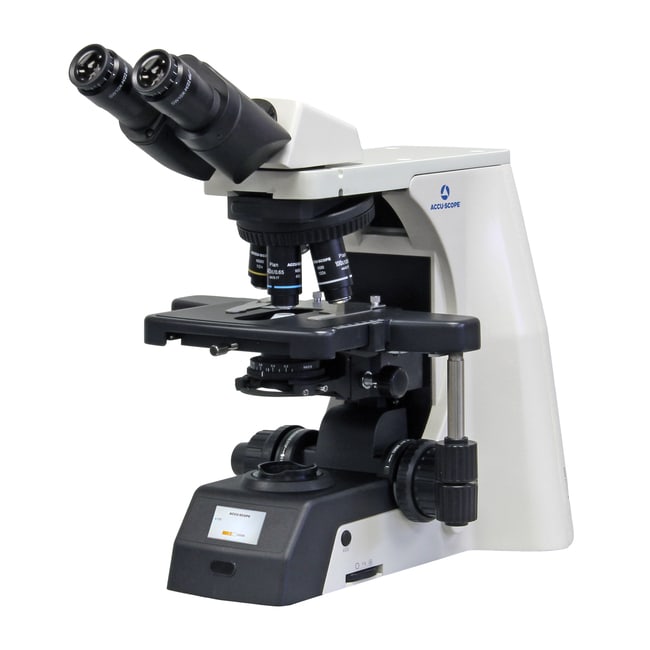

• Front-mounted LCD displays current objective status, light intensity, and time to auto-Sleep
• Binocular viewing head, inclined 30°, IPD 47 - 78 mm, rotatable 360°
• NIS Infinity Corrected PLAN 4x, 10x, 40xR, and 100xR oil objectives
• Reversed sextuple nosepiece
• WF 10x/22 mm focusing eyepieces with eyeguards
• Coaxial coarse and fine focusing controls
• Stand: Cast aluminum alloy
• Hard coat mechanical stage, tension adjustable controls
• N.A. 0.9 Abbe Condenser with iris diaphragm
• Koehler illumination - 3 watt variable S-LED illuminator
• Power Input: 100/240 V 0.5 A
• Weight (approx.) 30 lb. (standard configuration with fixed binocular viewing head)
• Dust cover, power cord, instruction manual, UL Approved

Specifications

• Eyepiece: WF 10X/22 mm
• Head Style: Binocular, 30° Inclined, 360° Rotating
• Lighting Type: LED
• Magnification Power: 40X, 100X, 400X, 1000X
• Model: ACCU-SCOPE
• Objective Types: Infinity Corrected Plan
• Product Type: Binocular LED Microscope
• Voltage: 100/240 V
