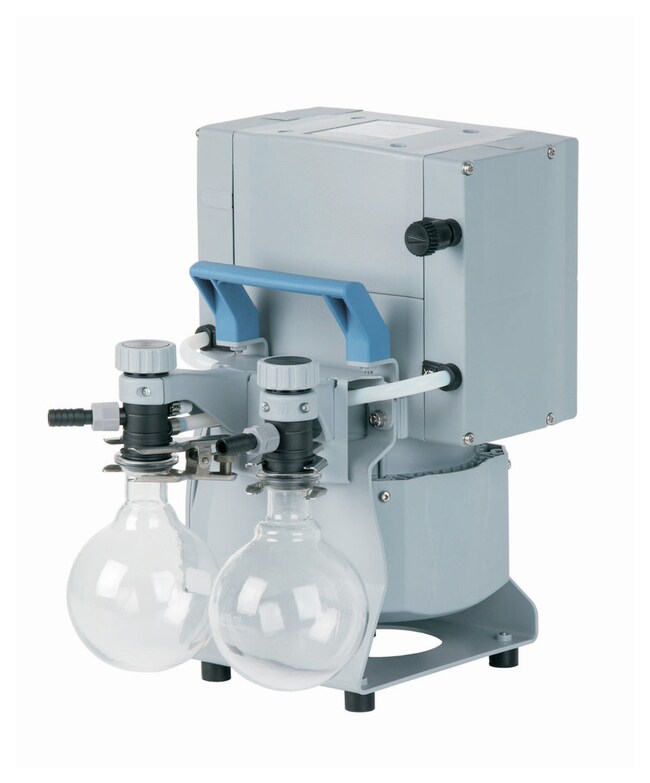

BRANDTECH™ VACUUBRAND™ MD 4C NT + 2 AK Chemistry Diaphragm Vacuum System

Well proven for high vacuum requirements with high boiling solvents

Supplier:  BRANDTECH™ VACUUBRAND™ 736603

Catalog No. 13-889-130

Includes: One phase motor, on/off switch, cable with plug, operating manual

Description

• Glass separator at inlet with protective coating, retains particles and liquid droplets
• Catchpot at outlet collects condensate, avoids condensate backflow towards pump and reinforces whisper-quiet operation of pump
• High chemical resistance and superior vapor tolerance
• High performance even at low vacuum
• Ideal applications are vacuum concentrators, rotary evaporators and drying ovens

Specifications

• Max. Vacuum: Without gas ballast - 1.1 Torr; With gas ballast - 2.6 Torr
• Amperage: 5.7 A
• Motor Speed: 1500 to 1800
• Electrical Requirements: 100/115 V 50/60 Hz
• Model: MD 4C NT +2AK
• Temperature (Metric) Storage: -10°C to +60°C
• Weight (Metric): 16.7 kg
• Temperature (Metric) Max: 40°C
• Flow Rate: 38 L/min.
• Overall Height (English): 14.72 in.
• Overall Length (English): 12.55 in.
• Overall Width (English): 9.56 in.
• Enclosure Rating: IP40
• Voltage: 100/115 V

• Horsepower: 0.25 hp
• Includes: One phase motor, on/off switch, cable with plug, operating manual
• Certifications/Compliance: CE
• Material: ETFE pump head, PTFE diaphragm, PTFE tubing, FFKM valve
• Plug Type: US
• Weight (English): 36.8 lb.
• Temperature (English) Max.: 104°F
• Temperature (Metric) Min.: 10°C
• Frequency: 50/60 Hz
• Overall Height (Metric): 37.4 cm
• Overall Length (Metric): 31.9 cm
• Pump Type: Chemistry Diaphragm Pump
• Maximum Pressure: 16 psi (1.1 bar)
