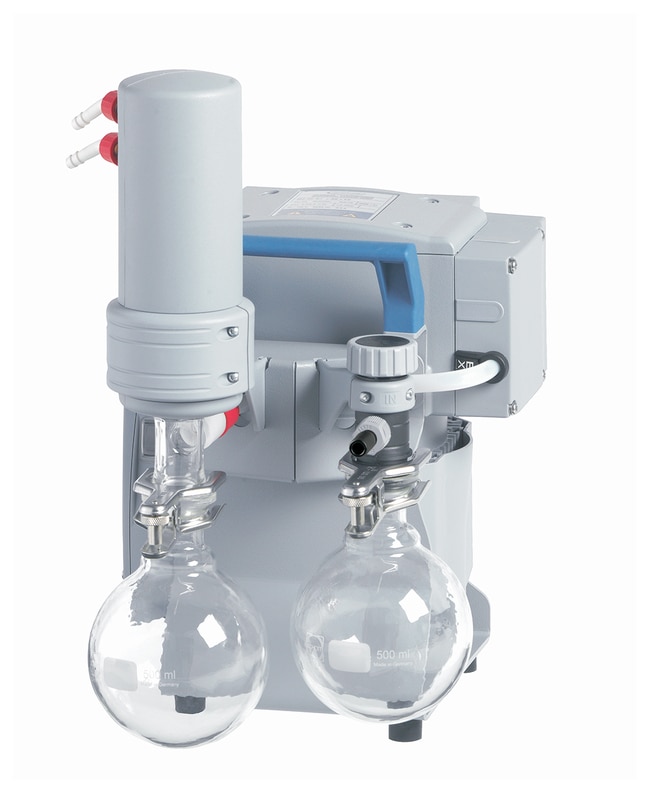

BRANDTECH™ VACUUBRAND™ MZ 2C NT + AK + EK Chemistry-Design Diaphragm Pump

An excellent choice for smaller vacuum ovens and gel dryers

Supplier:  BRANDTECH™ VACUUBRAND™ 20732603

Catalog No. 13-889-128

Description

A powerful diaphragm pump with a 7 millibar (2 torr) ultimate vacuum, featuring an inlet catchpot to maintain performance with condensable vapors and an outlet condenser to help protect the laboratory environment. With a free-air capacity of 38 L/min (1.4 cfm), it provides the necessary power for a wide range of bench-scale applications.

Specifications

• Max. Vacuum: 9 Torr (12 mbar)
• Motor Speed: 1500 to 1800
• Electrical Requirements: 120 V 60 Hz
• Plug Type: US
• Weight (English): 31.3 lb.
• Temperature (English) Max.: 104°F
• Temperature (Metric) Min.: 10°C
• Frequency: 60 Hz
• Overall Height (Metric): 40.2 cm
• Overall Length (Metric): 32.6 cm
• Overall Width (Metric): 24.2 cm
• Enclosure Rating: IP40
• Temperature (English) Min: 50°F
• Maximum Pressure: 16 osi (1.1 bar)

• Horsepower: 0.18 hp
• Certifications/Compliance: CE
• Model: MZ 2C NT +AK+EK
• Temperature (Metric) Storage: -10°C to +60°C
• Weight (Metric): 14.2 kg
• Temperature (Metric) Max: 40°C
• Flow Rate: 1.4 cfm (39.6 L/min.)
• Overall Height (English): 15.82 in.
• Overall Length (English): 12.8 in.
• Overall Width (English): 9.56 in.
• Pump Type: Chemistry Diaphragm Pump
• No. of Pump Heads: 2
• No. of Stages: 2
• Voltage: 120 V

Safety and Handling

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
