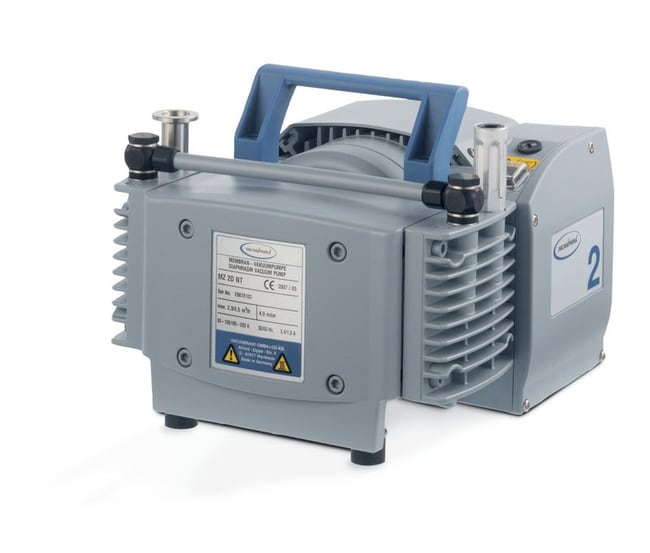

BRANDTECH™ VACUUBRAND™ MZ 2D NT Diaphragm Pump

Catalog No.	Flow Rate
13-889-127	42.5 L/min

Catalog No. 13-889-127 Supplier BRANDTECH™ VACUUBRAND™ Supplier No. 20732203

Description

For a wide variety of non-corrosive and non-evaporative applications. MZ-series pumps have an ultimate vacuum of 5 Torr.

Utilizes diaphragm vacuum technology for totally dry operation; there is no oil to change or monitor.

• Minimizes downtime and service costs
• Unique design eliminates tedious, trial-and-error stroke length recalibration
• Individually accessible diaphragms and valves simplify servicing
• Feature specially engineered pump heads for high flow rates at working vacuum

Specifications

• Max. Vacuum: 3 Torr (4 mbar)
• Horsepower: 0.24 hp
• Amperage: 1.8 A
• Motor Speed: 1500 to 1800
• Certifications/Compliance: CE, NRTL
• Electrical Requirements: 120 V 50/60 Hz
• Dimensions (L x W x H): 9.5 x 9.5 x 7.7 in. (24.3 x 24.1 x 19.8 cm)
• Material: Aluminum Alloy housing/head cover, Aluminum Alloy diaphragm clamping disc, FPM/PTFE diaphragm/valve, Aluminum Alloy connection tube, PBT Hose Nozzle, PVC Seal rings, Aluminum fittings, Polyethylene tubing
• Model: MZ 2D
• Noise Level: 45 dB (A)
• Plug Type: US
• Temperature (Metric) Storage: -10°C to +60°C
• Weight (English): 25.1 lb.
• Weight (Metric): 11.4 kg
• Temperature (English) Max.: 104°F
• Temperature (Metric) Max: 40°C
• Temperature (Metric) Min.: 10°C
• Flow Rate: 42.5 L/min
• Frequency: 50/60 Hz
• Overall Height (English): 7.7 in.
• Overall Height (Metric): 19.8 cm
• Overall Length (English): 9.5 in.
• Overall Length (Metric): 24.3 cm
• Overall Width (English): 9.5 in.
• Overall Width (Metric): 24.1 cm
• Pump Type: Vacuum Pump
• Enclosure Rating: IP40
• No. of Pump Heads: 2
• Temperature (English) Min: 50°F
• No. of Stages: 2
• Maximum Pressure: 16 psi (1.1 bar)
• Voltage: 120 V

Safety and Handling

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
