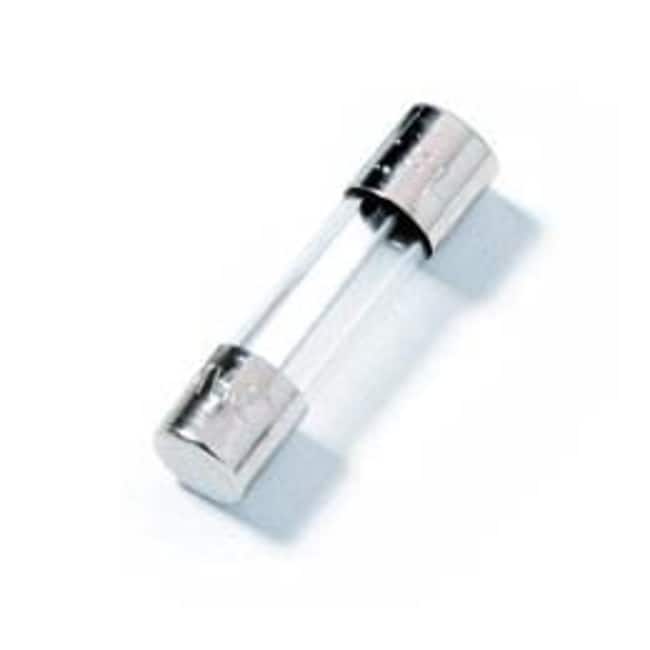

MOUSER ELECTRONICS Cartridge fuse, time-delay (slow-blow), 10 A, 250 V AC, 5 mm x 20 mm glass body, nickel-plated brass end caps, breaking capacity 100 A, IEC 60127-2, requires holder

Supplier:  MOUSER ELECTRONICS 5760218010.HXP

Encompass

This 10 A, 250 V time-delay (slow-blow) cartridge fuse in a 5 mm x 20 mm glass body provides supplementary overcurrent protection for appliance and utilization equipment. Designed to meet IEC 60127-2, it delivers reliable interruption of faults with a high breaking capacity and low voltage drop, and is rated for operation from -55 to 125°C. The fuse is RoHS compliant and requires a holder for mounting.

  • 10 A time-delay characteristic provides surge tolerance and short-duration overload protection.

  • 250 V AC rating suitable for appliance and equipment applications.

  • 5 mm x 20 mm glass body allows visual inspection of the fuse element.

  • High breaking capacity reduces risk of damage during fault conditions.

  • Low voltage drop and low cold resistance help minimize power loss.

  • RoHS compliant for environmental and regulatory conformity.

  • Requires holder for secure and replaceable mounting.

    • Catalog No. NC0762306
