OHAUS Centrifuge Multi 120 V FC5718R

Catalog No.	Capacity
02-112-153	4 x 200 mL

Catalog No. 02-112-153 Supplier OHAUS Supplier No. 83042046

Description

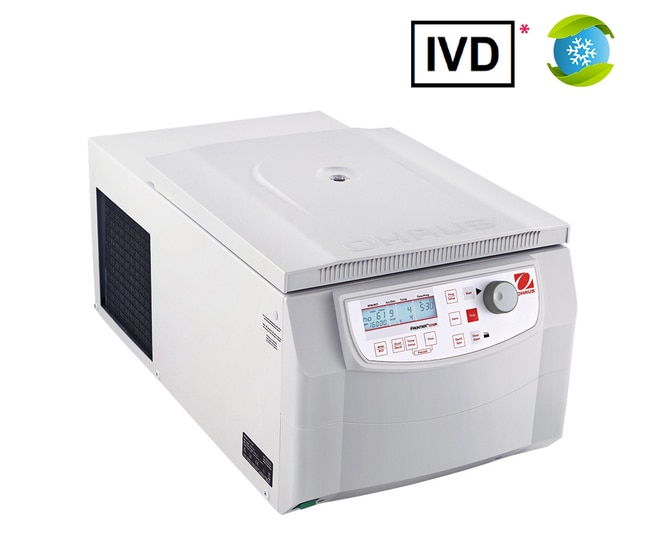

Frontier FC5718R Refrigerated Centrifuge - Compact, High-Speed Performance for Every Lab Application

• The Frontier FC5718R is a high-speed refrigerated centrifuge designed for multipurpose use across research, industrial, and clinical laboratory environments.
• Maximum capacity of 4 x 200 mL and maximum relative centrifuge force of 23,542 x g.
• Speed range of 200 to 18,000 rpm delivers outstanding centrifugation performance in a compact, bench-friendly footprint.
• Part of the Frontier 5000 Multi-Pro series - a modular, scalable centrifugation platform designed to adapt to evolving laboratory needs.
• Compatible with a wide variety of rotors and accessories to accommodate different tube types, sizes, and volumes.
• The Frontier 5000 series spans 11 models with capacities from 0.2 mL to 4 x 1000 mL.
• Supported applications include centrifugal separation, general sample preparation, cell pelleting, protein separation, nucleic acid separation, cell concentrating, chemical separation, diagnostics, environmental sample preparation, and blood sample processing.
• User-friendly design features a backlit LCD display for clear visibility of run parameters.
• Automatic rotor recognition detects the installed rotor and configures compatible operating parameters automatically.
• Ten selectable acceleration and deceleration rates provide precise control for a wide range of applications.
• Stores up to 99 programs for fast and efficient method recall.
• Constructed with a corrosion-resistant stainless steel chamber for durability and protection against harsh reagents.
• Polycarbonate/ABS plastic lid provides structural durability and visibility into the chamber.
• Weighs 60 kg, offering stability while remaining lighter than comparable high-capacity models.
• CFC-free refrigeration system cools from room temperature to 4°C in under 10 mins.
• Operating temperature range from -20°C to +40°C (-4°F to +104°F) using environmentally responsible R290 refrigerant.
• Continuous sample temperature indication enables monitoring during operation.
• Rated for ambient operating conditions of 5°C to 35°C at up to 80% relative humidity, non-condensing.
• Motor-driven lid-locking system ensures safe and secure operation.
• Dual imbalance sensing protects both the instrument and samples from unbalanced loads.
• Over-speed protection automatically enforces rotor speed limits.
• Operates at a low noise level of ≤60 ±2 dB(A), suitable for noise-sensitive environments.
• Power consumption is rated at 660 W, with AC power included.
• Programmable run time from 10 sec. to 99 hr., 59 min., and 59 sec., with continuous operation capability.
• Quick spin function enables rapid short-duration centrifugation.
• CE and FCC certified for compliance with international safety and electromagnetic compatibility standards.
• Dimensions: 731 mm (W) x 407 mm (D) x 359 mm (H) - 28.78 in. x 16.02 in. x 14.13 in.
• Manufactured in Germany, delivering reliable high-speed refrigerated centrifugation for demanding laboratory workflows.

Specifications

• Certifications/Compliance: CE, FCC
• Capacity: 4 x 200 mL
• Max. RCF: 23,542 x g
• Max. Speed: 18,000 rpm
• Refrigerated: Yes
• Green Features: CFC-free refrigeration system, R290 refrigerant
• Memory: 99 Programs
• Type: Centrifuge
• Amperage: 5.5 A
