Vernier™ Vernier Circuit Board 2

Description

Includes

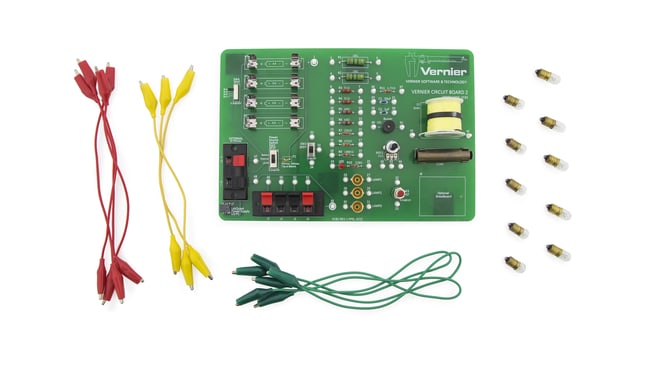

One circuit board, Ten insulated jumper wires fitted with mini-alligator clips, Five #48 lamps rated 0.06 A at 2.0 V (cylindrical body), Five #50 lamps rated 0.220 A at 7.5 V (round body)

The Vernier Circuit Board 2 is a convenient platform for circuit labs, from basic series and parallel circuits to RLC circuits. Many components are provided for experimentation, and additional components can be added to expand the capability of this useful board.

Size: 10 in. x 6.5 in. (25.5 cm x 16.5 cm) Mass: ∼0.44 kg Optional power sources: up to 4 AA batteries, not included LabQuest Power Supply, not included (or other 5 VDC adapter with center-positive ⅛ inch connector) DC power supply such as Extech Digital DC power supply Vernier Power Amplifier Maximum voltage: 10 V Resettable fuse opens at 0.8 A, but 0.3 A or less is recommended All parts ROHS compliant

Warranty and Services

5-year limited warranty

Specifications

• For Use With (Equipment): Current Probe, Differential Voltage Probe
• Length (English): 6.5 in.
• Length (Metric): 16.5 cm
• Voltage: 10 V
• For Use With (Application): Educational use only
• Weight (Metric): 0.44 kg
• Width (English): 10 in.
• Width (Metric): 25.5 cm
