Motic™ Clinical Package: PA53BIO Trino Upright Microscope w/ Moticam S6 and Image-Pro Life Science (2D) Software, and Accessories

Catalog No.	Head Style
01-673-131	Siedentopf Trinocular, 30° Inclined

Catalog No. 01-673-131 Supplier Motic™ Supplier No. MBPA53PS6MC1

Description

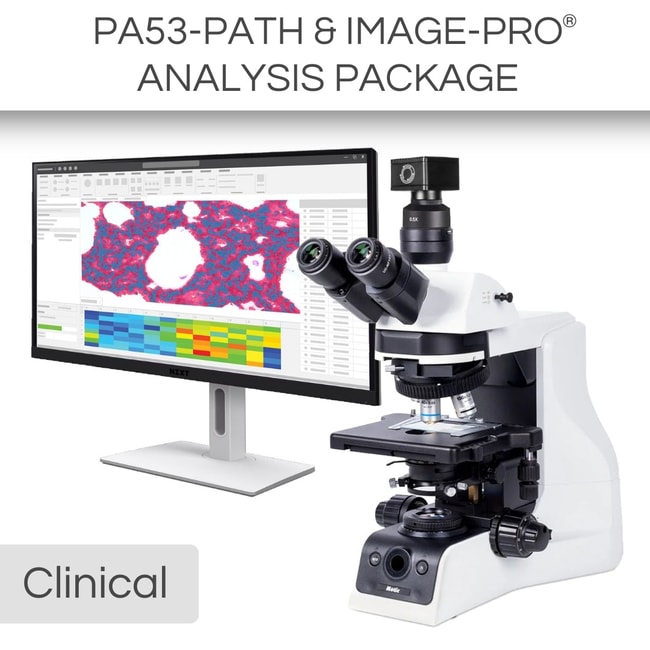

This Clinical Package includes PA53BIO Trinocular w/ 100W Halogen Illumination Upright Microscope, Moticam S6 USB Camera, Image-Pro - Life Science Package for Motic (2D), 0.5X C-Mount camera adapter, Tilting Trino Inverted Image Tube Head - FN: 23; Inclination Angle: 15 - 45 degrees; IPD: 55-75 mm; Light Path Selection: 100/0, 50/50, 0/100

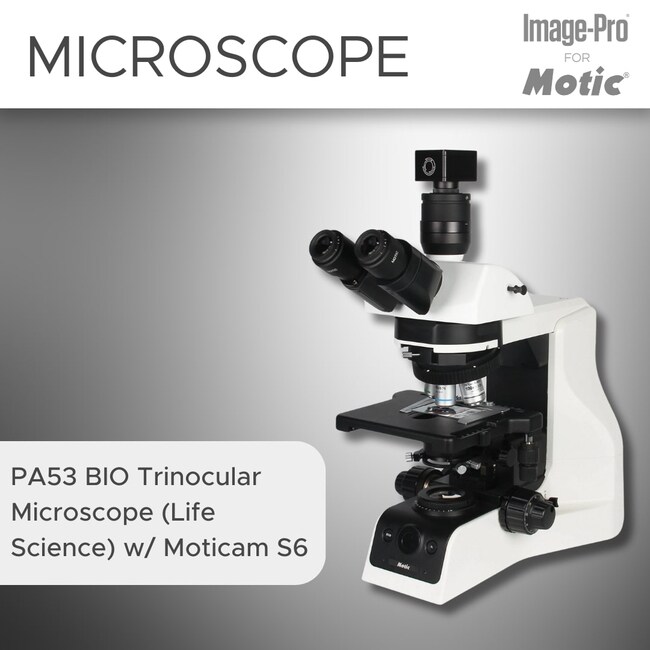

• Microscope: PA53BIO Trinocular w/ 100W Halogen Illumination Upright Microscope The PA53BIO Trinocular is an upright laboratory microscope designed for research work in hospitals and life science laboratories.
• It features powerful Köhler Quartz Halogen 100W transmitted illumination and a 1μ fine focus precision. The IL Function, together with the quintuple coded nosepiece, memorizes the brightness level for each objective position.
• Digital Camera: Moticam S6 USB Camera The Hi-Res Partner - Moticam S6 is designed for those application fields which need higher resolution. Presentations to a greater audience through video projector and reports in hardcopy are performed with ease. With 6 million pixels and a fast data readout, the performance is remarkable!

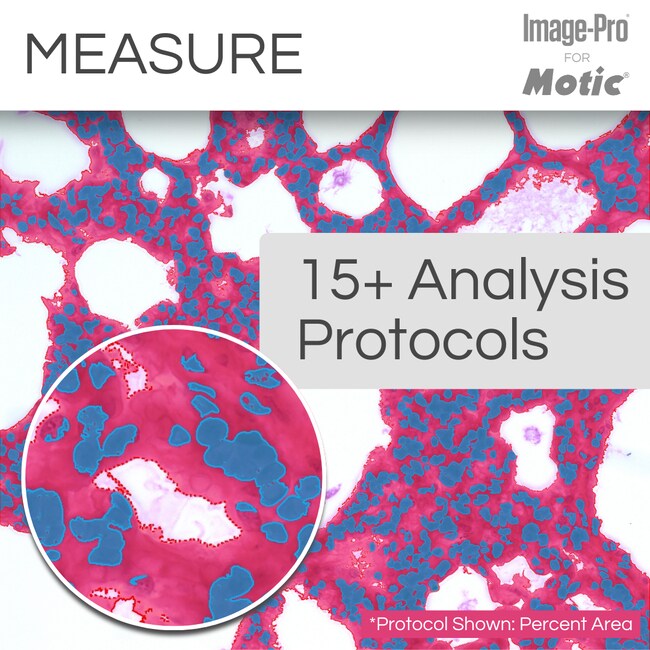

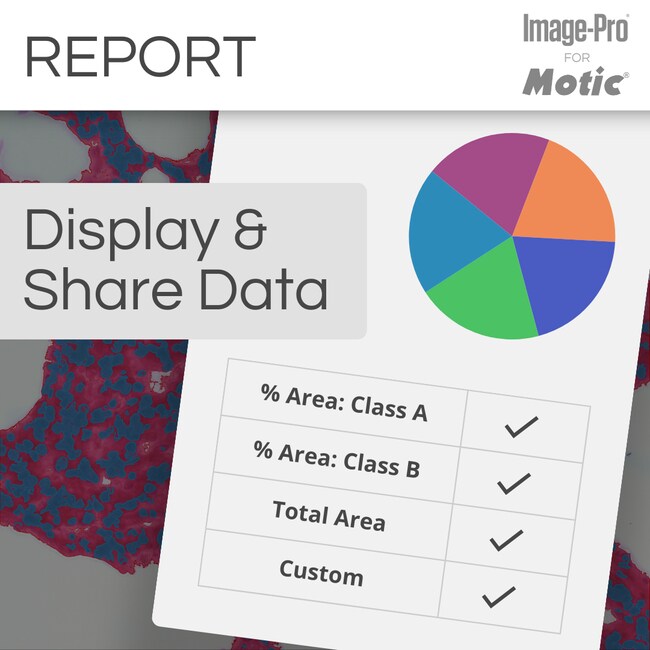

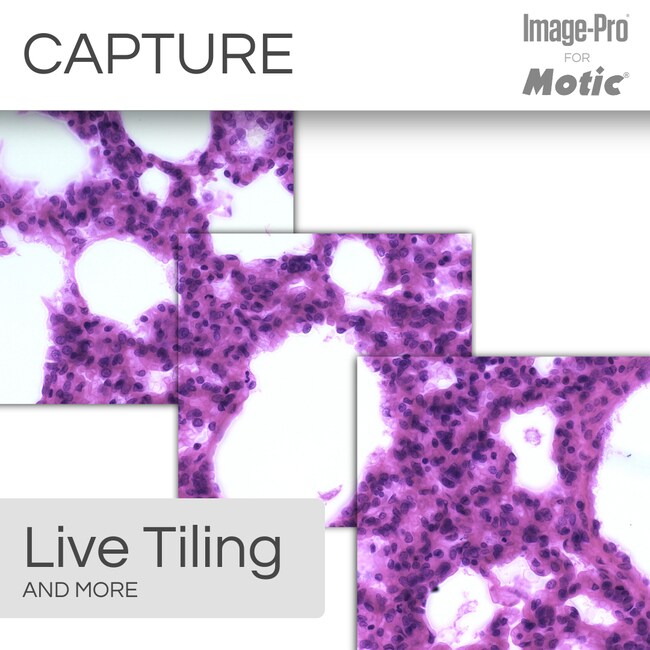

• Software: Image-Pro - Life Science Package for Motic (2D) Transform your life sciences research with the Image-Pro - Life Science Package for Motic, developed in partnership with Media Cybernetics. This versatile solution combines advanced Machine Learning technology with a comprehensive suite of protocols to provide precise segmentation, classification, and automated measurements from 2D images.
• Perfect for a wide range of life science applications, this package enhances your analytical capabilities with efficiency and accuracy.
• Key Features:
• Machine Learning-Powered Analysis Leverage sophisticated Machine Learning algorithms for accurate segmentation and classification, ensuring automated and reliable measurements from 2D images.
• Cell Biology Protocol Collection Optimize your research with an extensive suite of protocols for analyzing complex cell biology-based measurements, including Cell Apoptosis, Cell Autophagy, Cell Confluence, Cell Count, Cell Morphology, Cell Proliferation, Cell Transfection, Lipid Droplet, Live/Dead Cell Viability, and Ring Region.
• Versatility and Precision Achieve high precision in your life science research across diverse applications with automated processes and detailed measurement capabilities.
• This package also includes a 12-month subscription to a Standard Success Plan from Media Cybernetics, providing ongoing technical assistance and software onboarding so you can focus on the work that truly matters.

Specifications

• Camera Type: Moticam S6
• Eyepiece: WF 10X/25 mm, with ±4 diopter adjustment on both
• Head Style: Siedentopf Trinocular, 30° Inclined
• Lighting Type: Quartz Halogen, LED
• Magnification Power: 4X, 10X, 40X, 100X
• Model: PA53BIO (BASIC)
• Objective Types: CCIS UC Plan Achromatic (Pb free)
• Product Type: Trinocular Biological Microscope
• Nosepiece: Reversed quintuple, coded
• Dimensions (L x W x H): 576 x 247 x 457 mm
• Voltage: 110/240 V
