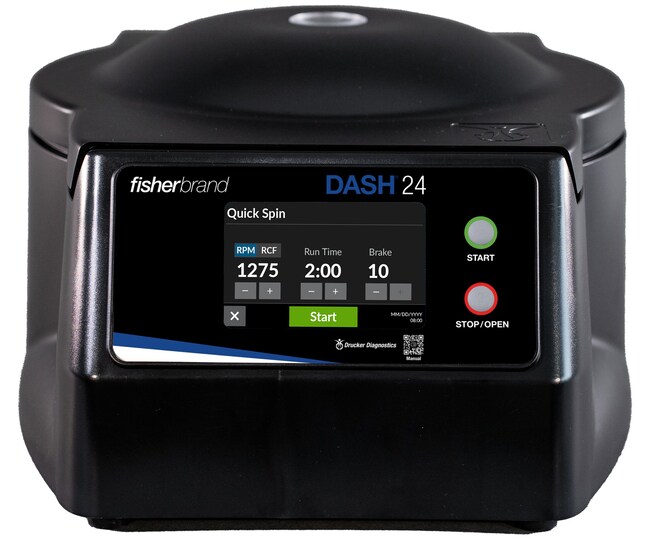

Fisherbrand™ DASH 24 STAT Centrifuge

Catalog No.	Max. RCF
22-010-133	4,000 x g

Catalog No. 22-010-133 Supplier Fisherbrand™ Supplier No. 00784018000

Description

Create and save custom protocols for applications or select from pre programmed presets using the advanced touchscreen interface.

• Max speed of 4850 RPM/4000 x g and a 24-tube capacity
• Max Speed (RCF): Up to 4000 x g
• DASH 24 is equipped to handle your STAT workloads and deliver fast results.
• Out of Box Capacity: 12 samples up to 2 mL, 24 samples up to 10 mL, 12 samples up to 15 mL, 6 samples up to 50 mL
• Tube Sizes: Up to 10 x 46 mm or 2 mL, Up to 16 x 100 mm or 10 mL, Up to 16 x 125 mm or 15 mL, Up to 30 x 115 mm or 50 mL
• Configurable Capacity: 24 samples up to 2 mL, with adapters sold separately
• Drucker Diagnostics patented Swing-out horizontal rotor design produces ideal horizontally separated samples
• Reinforced Guard Bowl: Provides maximum safety and durability
• Electrical Certifications: Certified to US, Canadian, and European safety regulations and standards
• Dimensions (WxDxH): 16 x 20 x 10 in. (40.6 x 50.8 x 25.4) cm
• Weight: 35 lbs (16 kg)
• Factory Settings Range: 1 to 30 Minutes (plusmn 1%)
• Voltage: 100 to 240 (plusmn 10%) VAC

Specifications

• Capacity: 12 x 2 mL, 24 x 10 mL, 12 x 15 mL, 6 x 50 mL
• Max. RCF: 4,000 x g
• Max. Speed: 4,850 rpm
• Refrigerated: No
• Noise Level: 62 dBA
• Warranty: 2 years
• Rotor: Swing-out
• Model: DASH 24
• Weight (English): 35 lb.
• Quantity: 1 Ea.
• Rotor Included: Yes
• Dimensions (HWD): 18 x 20 x 11 in.
• Drive System: 0.5 H.P.Brushless DC
• Program Storage: Store up to 10 Settings
• Run Time: 30 sec to 99 min 30 sec (±2%)
• Height (English) Exterior Lid Open: 24 in. (61 cm)
• Frequency: 50/60 Hz
• Voltage: 110/240 V
• Product Type: Centrifuge
• Display Type: Touch Screen
• Temperature Range (Metric): 16°C to 32°C.
