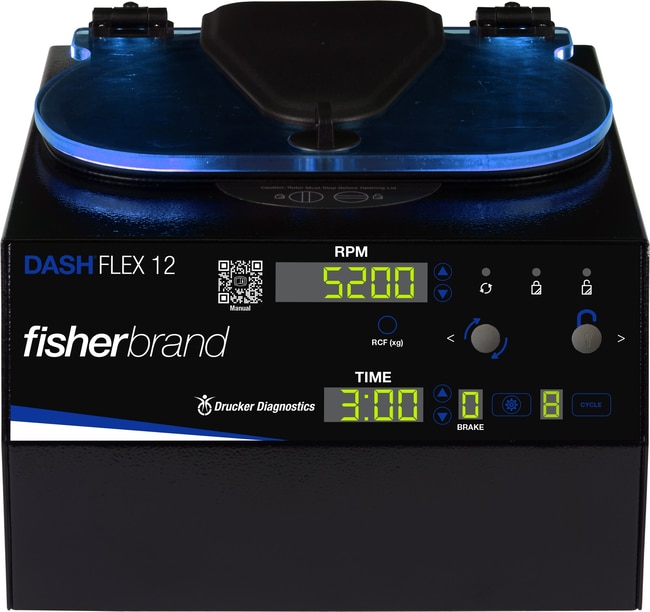

Fisherbrand™ DASH Flex 12 STAT Centrifuge

Catalog No.	Capacity
22-029-678	12 x 3 to 10 mL

Catalog No. 22-029-678

Description

DASH Flex 12 STAT Centrifuge for high performance STAT processing for the most demanding, lean laboratories. Easy to monitor progress with LED lighting.

• High RPM: up to (5200 RPM) and high g-force capability (4000 x g). 12 Capacity, Up to to 16 x 100 mm or 10 mL
• Patented swing-out 2-stage horizontal rotor design incorporates a unique test tube holder that produces the ideal horizontally separated samples.
• First three (3) cycles are conveneiently pre-set and labeled for your lab's most common applications. Use the default cycles or settings can be customized.
• Cycle Lock: the control panel can be temporarily lock on one cycle for error-free reproducibility.
  • Preset Lock can be turned on to prevent changes being made to the programmed cycles.
• Up to 10 cycles can be programmed for time, speed, and braking and labeled with a custom name.
• Lid lighting indicates the centrifuge's status (ready, running, done) that can be viewed by the technicians from across the room.
• Clear Shatterproof Lid: Allows for safe sample observation, optical calibrations, and access for phototachometer.
  • Made from high strength polycarbonate.
• Automatic Lid Lock: Centrifuge will not run with lid open, and lid cannot be opened while samples are spinning.
• Reinforced Guard Bowl: Provides maximum safety and durability.
• Push-button operation.
• Tube holders are made from carbon fiber reinforced composite materials for high strength and durability.
• Removable rotor core for easy cleaning.
• Cool-Flow air flow design that prevents overheating of samples.
• Brushless DC motor: years of operation with no routine maintenance.
• Includes: 12-place Horizontal Rotor, universal tube holders, and 2 year warranty.

Specifications

• Description: 12-place, 10 Custom Cycles
• Includes: Rotor, Tube Holders 75 to 100 mm (3 to 10 mL)
• Type: STAT Clinical Centrifuge, Swing Out Rotor
• Capacity: 12 x 3 to 10 mL
• Max. RCF: 4,000 x g
• Max. Speed: 5,200 rpm
• Refrigerated: No
• Profile (Acceleration/Braking): Max Accel: 35 sec., Max Decel: 40 sec.
• Noise Level: 61 dB
• Dimensions (L x W x H) Exterior: 14.75 x 12.5 x 9 in. (37.5 x 31.8 x 22.9 cm)
• Electrical Requirements: 110-230 W
• Warranty: 2 Years
• Product Line: Fisherbrand
• Height (English) Exterior: 9 in.
• Height (Metric) Exterior: 23 cm
• Length (English) Exterior: 14.75 in.
• Length (Metric) Exterior: 37 cm
• Memory: 10 Programmable Settings
• Safety Features: Automatic Lid Lock, Clear Shatter Proof Lid, Reinforced Guard Bowl
• Timer: Digital
• Width (English) Exterior: 12.5 in.
• Width (Metric) Exterior: 32 cm
• Rotor: 12-place Horizontal
• Wattage: 415 W
• Model: DASH Flex 12
• Ventilated: Yes
• Weight (English): 30 lb.
• Weight (Metric): 13.7 kg
• For Use With (Application): Clinical, Stat Samples
• Quantity: 1 Ea.
• Rotor Included: Yes
• Net Weight: 30 lb. (13.7 kg)
• Program Storage: 10 Settings
• Run Time: 1 to 30 min.
• Frequency: 50/60 Hz
• Voltage: 100/240 V
