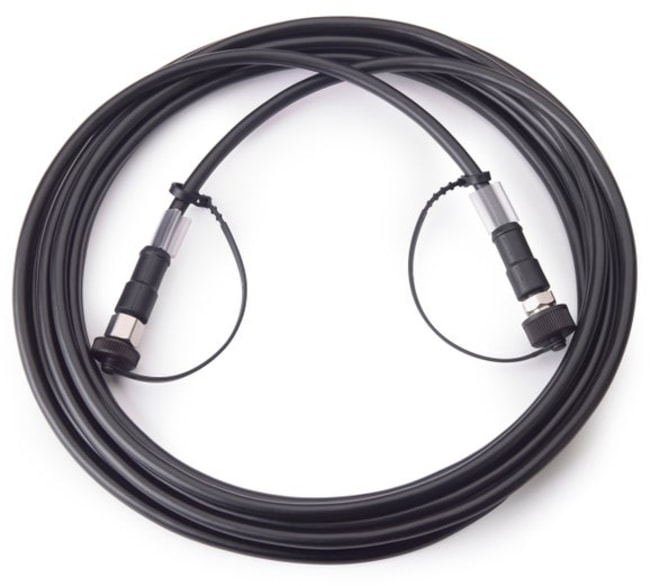

Hach Company Digital Extension Cable for SC Sensors, 10 m (LZX849)

Catalog No. NC3779872 Shop All Hach Company Products
Encompass

Hach digital extension cable designed to extend the connection between SC sensors and controllers or sensor hubs; provides a shielded, PUR-sheathed 10 m link for field and process installations requiring an extended sensor reach.

  • Cable length: 10 m.
  • Diameter: 6.8 mm ± 0.3 mm.
  • Normal voltage: 250 V Vpp.
  • Test voltage: 1200 V Vrms (wire to wire) and 750 V Vrms (wire to shield).
  • Insulation resistance: ≥ 20 MΩ x km at 20 °C.
  • Conductor: copper conductors (AWG 22: 19x0.15 mm; AWG 26: 18x0.10 mm).
  • Sheath: outside coat PUR (Elastoplan 1185), RoHS-conformal.
  • Shielding: tinned copper netting.

Catalog No. NC3779872 Supplier Hach Company Supplier No. LZX849
May include imposed supplier surcharges.
Add to Cart
Add to Cart

missing translation for 'validMainframeMsg'

Hach digital extension cable designed to extend the connection between SC sensors and controllers or sensor hubs; provides a shielded, PUR-sheathed 10 m link for field and process installations requiring an extended sensor reach.

  • Cable length: 10 m.
  • Diameter: 6.8 mm ± 0.3 mm.
  • Normal voltage: 250 V Vpp.
  • Test voltage: 1200 V Vrms (wire to wire) and 750 V Vrms (wire to shield).
  • Insulation resistance: ≥ 20 MΩ x km at 20 °C.
  • Conductor: copper conductors (AWG 22: 19x0.15 mm; AWG 26: 18x0.10 mm).
  • Sheath: outside coat PUR (Elastoplan 1185), RoHS-conformal.
  • Shielding: tinned copper netting.
