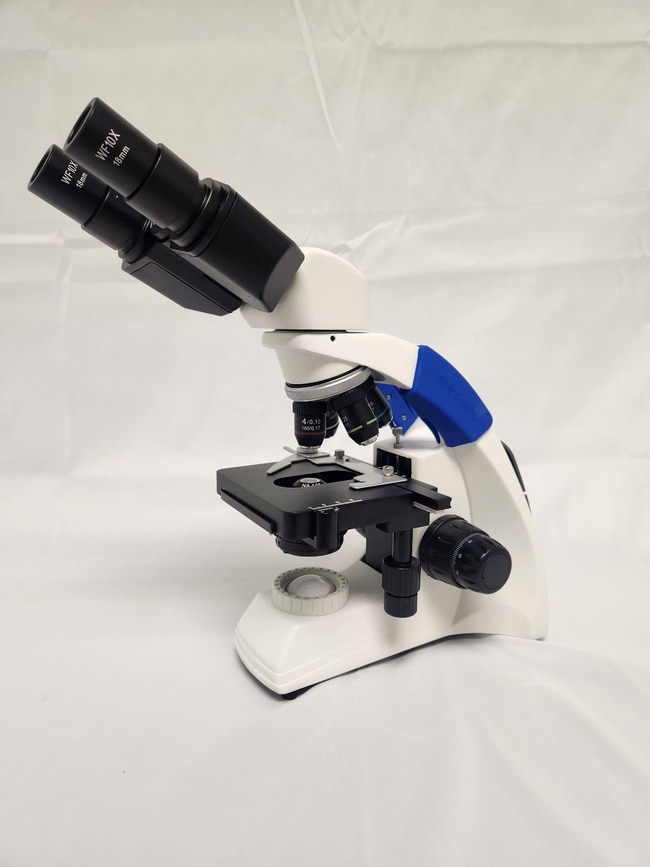

Fisher Science Education™ Entry Level High School Series Upright Microscope

Upright Microscope with compact, lightweight design is ideal for entry level high school classrooms

Catalog No. S72530

Description

OPTICAL SYSTEM

• Finite optical system
• Inward facing 4 position turret nosepiece w/ click stops
• 10X, 20x, 40X, 100x(oil) objectives
• 10X WF w/ 18mm FOV eyepiece

FOCUSING

• Coaxial coarse & fine focusing adjustment
• Tension adjustments
• Fine focus drive movement of 0.002mm divisions
• Rack stop adjustment for protecting objective and specimen slides from accidental breakage

STAGE

• Double layer X/Y mechanical stage
• Size: 110mm x 125mm
• Movement Range: 35mm x 50mm

CONDENSER

• Fixed Condenser w/ filter holder
• NA 1.25 with iris diaphragm

FRAME

• Rugged, durable metal frame construction
• Lightweight design makes it easy for students to move it around
• Convenient rubberized carrying handle
• Power cord storage
• Rocker on/off switch

ILLUMINATION

• Eco-friendly and energy efficient 3W LED illumination
• Dimmer control for light intensity

Warranty and Services

Limited Lifetime Warranty

Specifications

• Head Style: Seidentopf Binocular, 30° inclined, 360° rotating
• Magnification Power: 40X, 100X, 400X, 1000X
• Objective Types: Plan Phase Contrast
• Includes: Eyepieces, Stand, Dust Cover, Objectives, Power Cord, Immersion Oil
• Warranty: 5 years optical and mechanical, 1 year electrical from date of purchase
• Frequency: 50/60 Hz

• Lighting Type: LED
• Model: Finite Optical System
• Product Type: Microscope
• Material: Brass, Glass, Aluminum, Plastic
• Voltage: 110/220 V

For the specifics on a particular model, see the specification table located at the bottom of the page of that individual model
