Laxco™ Entry Level High School Series Upright Microscope
SDP

Catalog No. S001283 Shop All Laxco Inc Products
Change view
Click to view available options
Lighting Type:
LED, Adjustable
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Lighting Type
S001283 LED, Adjustable
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. S001283 Supplier Laxco™ Supplier No. EDU200
Only null left
Add to Cart
Add to Cart

Description

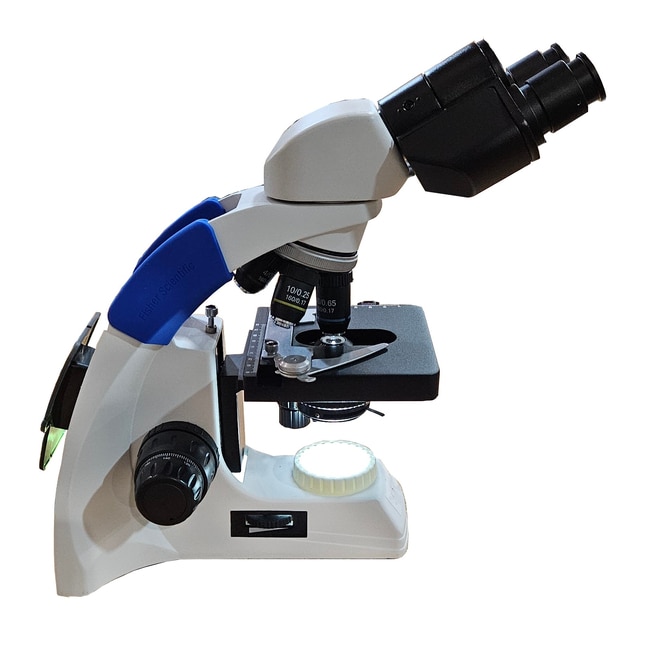

Binocular Upright Microscope with compact, lightweight design ideal for any school classroom. Budget friendly high image quality system enhances instructional clarity, enabling students to learn more effectively.

  • OPTICAL SYSTEM:
  • Binocular, Coaxial Coarse/Fine Focus
  • Finite Optical System
  • Inward-facing 4-position turret nosepiece with click stops
  • 4X, 10X, 40X, and 100X (oil) brightfield achromat objectives
  • 20X WF 11 mm FOV eyepieces with pointer
  • FOCUSING:
  • Coaxial coarse and fine focus adjustment
  • Tension adjustments
  • Fine focus drive movement of 0.002 mm divisions
  • Rack stop adjustment for protecting objectives and specimen slides from accidental breakage
  • STAGE:
  • Double-layer X/Y mechanical stage
  • Size: 110 x 125 mm
  • Movement Range: 35 x 50 mm
  • CONDENSER:
  • Fixed condenser with filter holder
  • 1.25 NA with iris diaphragm
  • FRAME:
  • Rugged, durable metal frame construction
  • The lightweight design makes it easy for students to move it around
  • Convenient rubberized carrying handle.
  • Power cord storage.
  • Rocker on/off switch
  • ILLUMINATION:
  • Eco-friendly and energy-efficient 3W LED Illumination
  • Dimmer control for light intensityDimmer control for light intensity
  • Warranty and Services: 2 Years optical and mechanical, 1 Year electrical from date of purchase
  • Greener Choice Claims: Environmental benefits include, free of a substance that causes environmental harm, non-toxic, Ozone-safe, recyclable, recycled content, renewable energy and renewable materials

Specifications

Eyepiece 10X/20 mm, with pointer
Head Style Binocular
Lighting Type LED, Adjustable
Objective Types DIN Achromatic
Product Line Laxco
Product Type Student Microscope
Voltage 100/115/220/230 V
