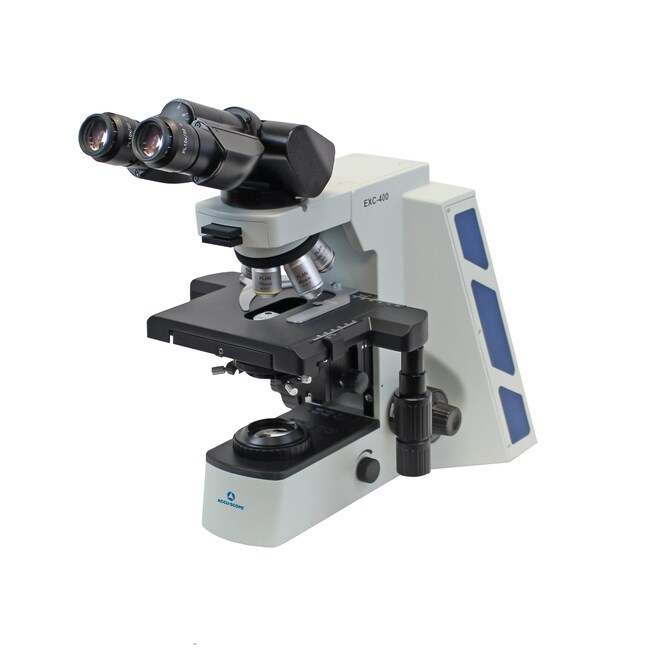

ACCU-SCOPE™ Ergo Binocular with Plan Objectives

Catalog No.	Head Style
01-000-975	Binocular, Tilting

Catalog No. 01-000-975

Supplier: ACCU-SCOPE™ EXC400BE

Description

The EXC-400-BE is designed for a broad range of microscopy applications in clinical, academic, and research environments.

• Optical System: Infinity optical system, f = 180 mm, anti-mold
• Ergo tilting binocular viewing head (5° to 35°)
• Infinity plan achromat 4x, 10x, 40xR and 100xR oil objectives
• WF10x/22 mm focusable eyepieces with eyeguards
• Reversed quintuple ball bearing nosepiece with positive click stops
• Coaxial focusing, variable 3w LED illumination with field iris, dust cover
• Stand: Cast aluminum alloy
• Rackless mechanical stage with low-position coaxial controls; 175 x 153 mm with X-Y movement range of 76 X 50 mm
• N.A 1.2 swing-out achromatic condenser
• 3 Watt variable LED illuminator with variable intensity control and field iris diaphragm; LED bulb is rated for over 20,000 hours of continued use; universal power supply 110-240V
• Warranty:5 Year limited warranty for parts, labor and electronic components 1 Year warranty on LED bulb

Specifications

• Eyepiece: WF 10X/22 mm
• Head Style: Binocular, Tilting
• Lighting Type: LED
• Magnification Power: 40X, 100X, 400X, 1000X
• Model: ACCU-SCOPE
• Objective Types: Infinity Plan Achromatic
• Product Type: Trinocular LED Microscope
• Voltage: 110/240 V
