ACCU-SCOPE™ EXAMET-5 Metallurgical Microscope Series
SDP

Catalog No. 01189259 Shop All ACCU-SCOPE Products
Change view
Click to view available options
:
ACCU-SCOPE™ EXAMET-5 Metallurgical Microscope Series
Catalog No.
01-189-259 ACCU-SCOPE™ EXAMET-5 Metallurgical Microscope Series
1 options

Catalog No. 01-189-259

Supplier: ACCU-SCOPE™ 14350

Only null left
Add to Cart
Add to Cart
Request a Quote

Description

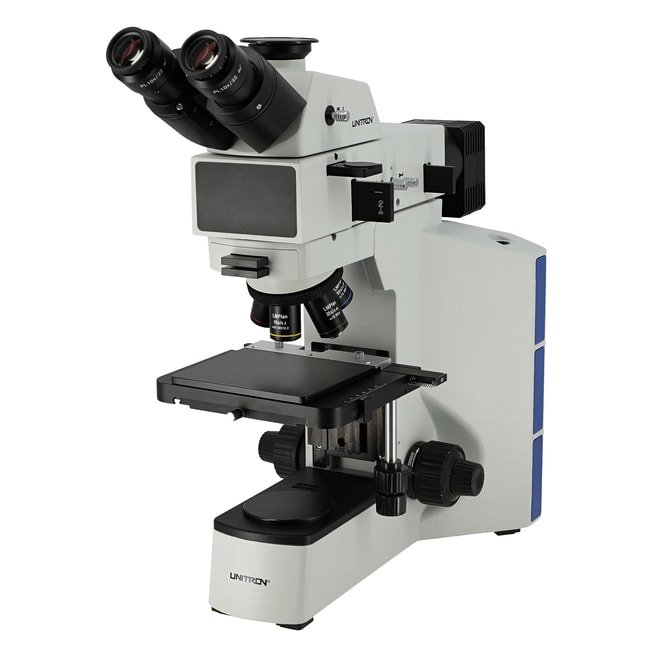

The UNITRON™ Versamet 5 features a trinocular viewing head. Features long working distance M infinity plan achromat 5x, 10x and 20x objectives, long working distance M Infinity Semi-Plan Apochromat 50x objective, low position coaxial focusing system with tension adjustment.

  • Trinocular viewing head, inclined 30°
  • Viewing split 100% binocular, or 50% binocular / 50% trinocular
  • Widefield 10x eyepieces with a 23 mm field of view
  • Infinity LWD M plan achromat 5x, 10x, 20x objectives, Infinity LWD M Plan semi-Apo 50x objective
  • Reversed quintuple nosepiece
  • Interpupillary distance adjustment 54 mm to 75 mm
  • Mechanical Stage (175 x 145 mm), 76 mm (X) x 42 mm (Y) movement range
  • Slide holder not included
  • Low position coaxial focusing system with tension adjustment
  • Observation height of up to 50 mm
  • 5-watt variable LED reflected illuminator with field and aperture diaphragm
  • Universal power supply (90 to 240 v)
