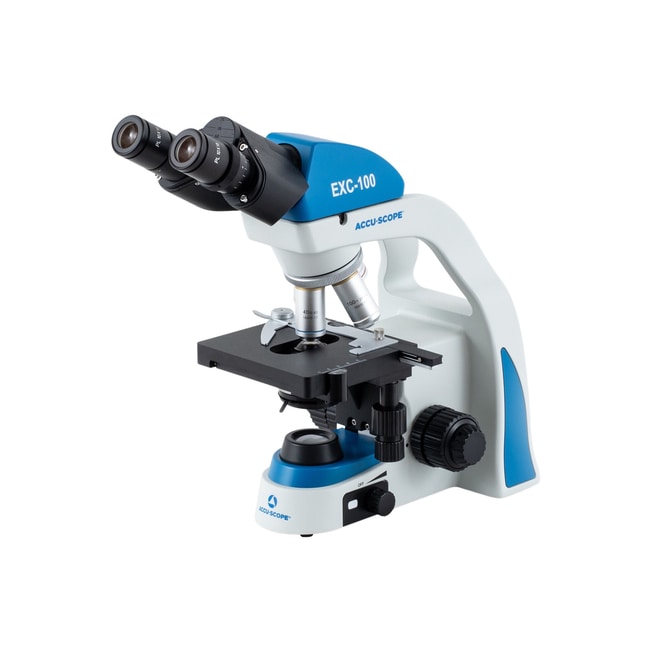

ACCU-SCOPE™ EXC-100 Microscope Series Brightfield and Darkfield Binocular Microscope with Achromat Objectives

The ACCU-SCOPE™ EXC-100-DF microscope supports brightfield and darkfield observation methods designed to illuminate translucent water organisms, built on a rugged, die-cast aluminum frame designed for years of use. Featuring ergonomic focusing controls, all metal focusing gears.

Supplier:  ACCU-SCOPE™ EXC100DF

Catalog No. S012473

Description

• Optical System: DIN Optical System, f = 160 mm, anti-mold
• Viewing Head: Binocular, inclined 30° and rotatable 360°
• Single diopter adjustment
• Interpupillary distance adjustment: 50 to 75 mm
• Eyepieces: WF10x/18 mm field of view; a pointer is standard in one eyepiece; eyepieces are locked in to prevent tampering
• Nosepiece: Rear facing, quadruple, ball bearing with positive click stops to ensure parcentration
• Objectives: Achromat objectives; 4x, 10x, 40xR and 100xR oil
• Stage: Double-layer mechanical stage, size: 115 x 125 mm
• Right hand control, Vernier scale
• Condenser: N.A. 1.25 Abbe condenser with iris diaphragm and filter holder.
• Stand: Cast alloy aluminum. Built in fixed focus stop allows for rapid focusing while protecting specimens. Built-in carry handle and cord hanger.
• Illumination: Variable LED illumination, 0.2 W. Bulb life rated for 20,000 hours, rechargeable
• Focusing System: Coaxial coarse and fine focus with adjustable tension control, 13 mm focus travel, focus travel lock. All metal gears
• Power: Power adapter delivers 5V1A to microscope from 100 to 240 V input
• Accessories: Dust cover and instruction manual included
• Certification: ISO 9001: 2018 and ISO 14001: 2018, UL listed, CE
• Warranty: 5-year limited warranty for parts, labor, and electronic components. 1-year warranty on LED bulb

Specifications

• Eyepiece: WF 10X/18 mm, with pointer, lockable
• Lighting Type: LED
• Model: EXC-100
• Product Type: Darkfield Microscope

• Head Style: Binocular, 30° Inclined
• Magnification Power: 40X, 100X, 400X, 1000X
• Objective Types: DIN Achromatic
• Voltage: 100/240 V
