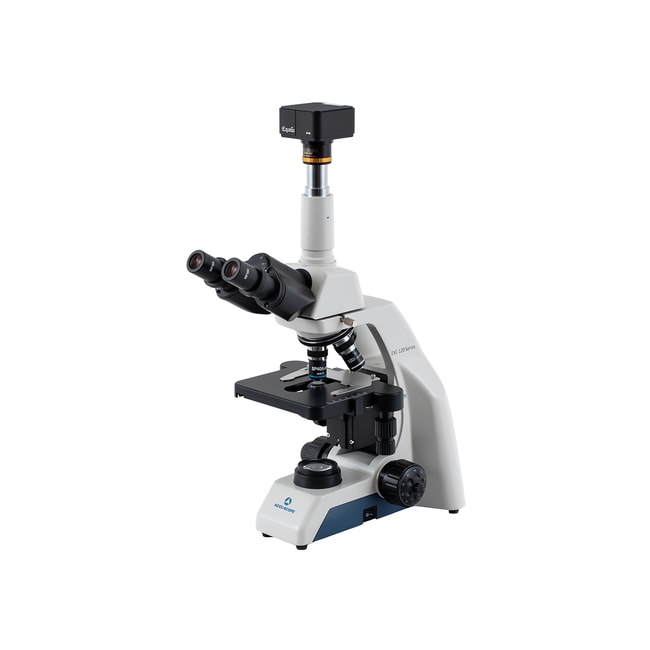

ACCU-SCOPE™ EXC-120 Trinocular Microscope with Excelis™ EC50 Camera System
The ACCU-SCOPE™ EXC-123-EC50 delivers exceptional value and performance for an entry level clinical microscope. The digital trinocular microscope paired with our Excelis™ EC50 5 MP camera USB2.0 with adapter, DIN 4x, 10x, SP40xR and 100xR oil objectives, coaxial, course and fine focus controls.
Supplier: ACCU-SCOPE™ EXC123EC50
Description
- Optical System: DIN Optical System, f = 160 mm, anti-mold
- Viewing Head: Trinocular, inclined 30° and rotatable 360°
- Single diopter adjustment
- Interpupillary Distance Adjustment: 48 to 75 mm
- Camera: Includes Excelis™ EC50 (AU-EC50) 5 MP, USB2.0 camera system and 0.5x c-mount adapter (monitor not included), CaptaVision+ advanced image acquisition, processing, and measurement software (downloadable)
- Eyepieces: WF10x/18.5 mm field of view; a pointer is standard in one eyepiece, eyepieces are locked-in to prevent classroom tampering and accept 19 mm reticles
- Nosepiece: Rear facing, quadruple, ball bearing with positive click stops to ensure parcentration
- Objectives: Achromat objectives: 4x, 10x, Semi-Plan 40xR and 100xR oil
- Stage: Rackless mechanical stage, size: 150 x 139 mm. Travel area: 75 mm (X) x 32 mm (Y) movement with right hand control
- Vernier scale reading to 0.1 mm
- Condenser: N.A. 1.25 Abbe condenser on rack and pinion with iris diaphragm and swing-out filter holder
- Stand: Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens. Built-in carry handle and cord hanger
- Illumination: Variable LED illumination: bulb life rated for 20,000 hours, UL approved
- Focusing System: Coaxial coarse and fine focus controls with an adjustable tension control; all metal gears
- Accessories: Dust cover, immersion oil and instruction manual included
- Certification: ISO 9001: 2018 and ISO 14001: 2018, UL approved, CE anti-mold
- Warranty: 5-year limited warranty for parts, labor, and electronic components, 1-year warranty on LED bulb
Specifications
| WF 10X/18.5 mm | |
| LED | |
| EXC-120 | |
| Microscope with Digital Camera |
| Trinocular, 30° Inclined, 360° Rotating | |
| 40X, 100X, 400X, 1000X | |
| DIN Achromatic | |
| 110/240 V |
