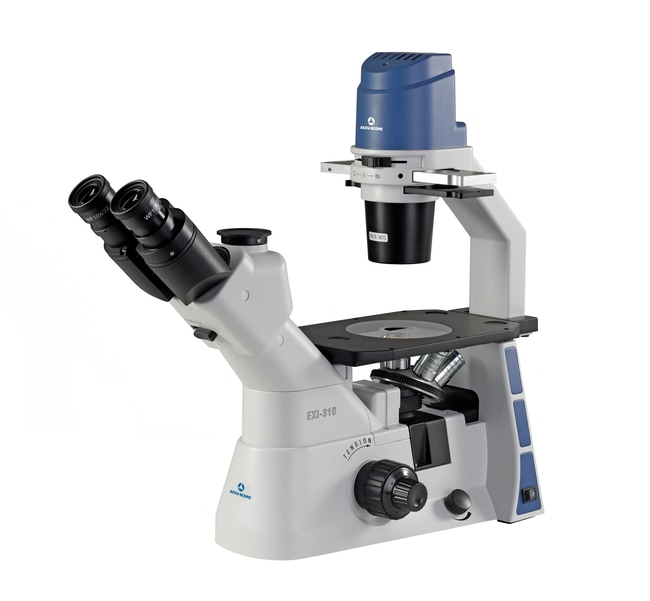

ACCU-SCOPE™ EXI-310-PH Inverted Microscope Series Trinocular with Plan Phase Objectives

The ACCU-SCOPE™ EXI-310-PH is your trusted and dependable inverted trinocular microscope for routine tissue culture, clinical laboratory observations and teaching applications.The EXI-310-PH features WF10x/22 mm eyepieces, infinity corrected plan achromat 4x, Plan Phase 10x and 20x objectives.

Supplier:  ACCU-SCOPE™ EXI310PH

Catalog No. 01-189-198

Description

• Optical System: AIS Infinity Optical System, anti-fungal.
• Observation Method: Brightfield, Phase Contrast.
• Viewing Body: Trinocular, inclined 45°, Interpupillary distance: 54 to 75 mm, Siedentopf type
• Eyepiece/camera port (standard): 100/0: 80/20.
• Eyepieces: WF10x/22 mm field of view focusable eyepieces with eye cushions. Optional 15x/16 mm, 20x/12.5 mm.
• Nosepiece: Side facing quintuple nosepiece.
• Objectives: LWD plan achromat 4x, LWD Plan Phase 10x and 20x.
• Stage: Fixed, plain stage, 160 x 250 mm with glass and aluminum insert plates
• (Optional attachable mechanical stage right hand coaxial control, movement range 120 x 78mm).
• Condenser: ELWD Condenser N.A. 0.3, W.D. 72 mm.
• Slider: Pre-centered phase slider 4x/10x, 20x/40x annuli and BF position. Secondary slider for filters for enhanced illumination techniques.
• Stand: Cast alloy aluminum
• Illumination: 5-watt LED with variable intensity control; LED bulb is rated for over 25,000 hours of continued use. Universal power supply 110 to 240 V
• Focusing: Coaxial coarse and fine focus with adjustable tension control; all brass gears.
• Accessories: Green 550 nm interference and ground glass, dust cover and instruction manual.
• Certification: ISO 9001: 2018 and ISO 14001: 2018, UL approved, CE anti-mold.
• Warranty: 5-year limited warranty for parts, labor and electronic components, 1-year warranty on LED bulb

Specifications

• Voltage: 100/240 V
• Objective Types: Infinity Corrected Plan Achromatic, Phase Contrast
• Lighting Type: LED
• Camera Type: None
• Model: EXI-310

• Magnification Power: 4X, 10X, 20X
• Eyepiece: WF 10X/22 mm
• Head Style: Trinocular, 45° Inclined
• Display Type: None
• Product Type: Inverted Trinocular Microscope
