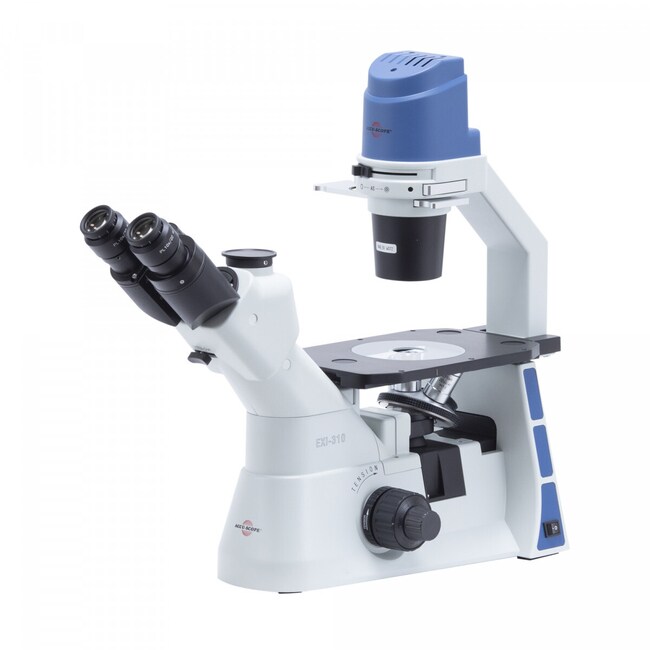

ACCU-SCOPE™ EXI-310-PL Inverted Microscope Series Trinocular Microscope with Plan Achromat Objectives
SDP

Catalog No. 01189196 Shop All ACCU-SCOPE Products
Click to view available options
Head Style:
Trinocular, 45° Inclined

Catalog No. 01-189-196

Supplier: ACCU-SCOPE™ EXI310PL

Description

The ACCU-SCOPE™ EXI-310-PL is your trusted and dependable inverted microscope for routine tissue culture, clinical laboratory observations and teaching applications. The EXI-310 is available in three standard configurations (phase contrast, 2-channel fluorescence, 3-channel fluorescence).

  • Optical System: AIS Infinity Optical System, anti-fungal.
  • Observation Method: Brightfield.
  • Viewing Body: Trinocular, inclined 45°
  • Interpupillary distance: 54 to 75 mm, Siedentopf type
  • Eyepiece/camera port (standard): 100/0: 80/20.
  • Eyepieces: WF10x/22 mm field of view focusable eyepieces with eye cushions; Optional 15x/16 mm, 20x/12.5 mm
  • Nosepiece: Side facing quintuple nosepiece.
  • Objectives: LWD plan achromat 4x, 10x and 20x.
  • Stage: Fixed, plain stage, 160 x 250 mm with glass and aluminum insert plates. Optional attachable mechanical stage right hand coaxial control, movement range 120 x 78 mm
  • Condenser: ELWD Condenser N.A. 0.3, W.D. 72 mm.
  • Slider: Slider for filters for enhanced illumination techniques.
  • Stand: Cast alloy aluminum
  • Illumination: 5-watt LED with variable intensity control, LED bulb is rated for over 25,000 hours of continued use. Universal power supply 110 to 240 V
  • Focusing: Coaxial coarse and fine focus with adjustable tension control. All brass gears.
  • Accessories: Ground glass filter, dust cover and instruction manual.
  • Certification: ISO 9001: 2018 and ISO 14001: 2018, UL approved, CE anti-mold.
  • Warranty: 5-year limited warranty for parts, labor and electronic components. 1-year warranty on LED bulb

Specifications

Voltage 100/240 V
Magnification Power 4X, 10X, 20X
Objective Types Plan Achromatic, Plan Phase
Eyepiece WF 10X/22 mm
Lighting Type LED
Head Style Trinocular, 45° Inclined
Camera Type None
Display Type None
Model EXI-310
Product Type Inverted Trinocular Microscope
