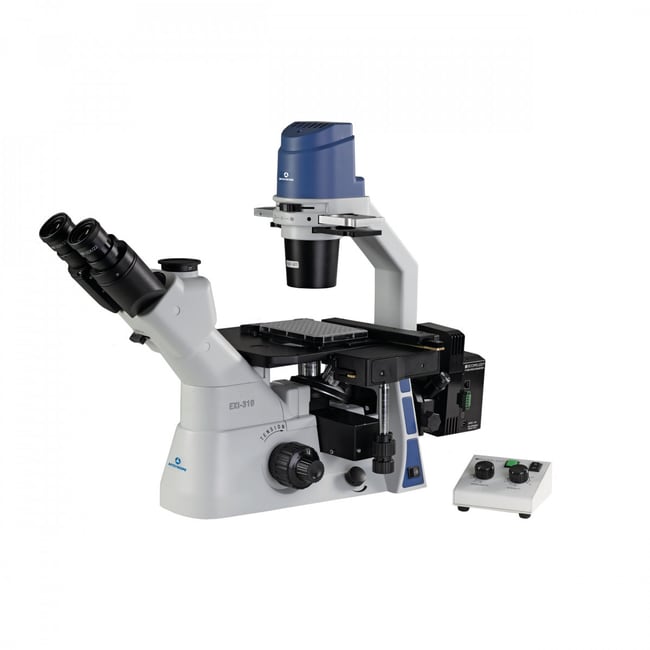

ACCU-SCOPE™ EXI-310 Trinocular with Epi-Fluorescence Attachment (no illuminator)

EXI-310-FL3 is an inverted trinocular microscope with a fluorescence attachment featuring a field iris and a 4-position filter slider (3 fluorescence, 1 brightfield) plus a UV protection plate.

Supplier:  ACCU-SCOPE™ EXI310FL3

Catalog No. 01-000-985

Description

• Optical System Infinity Optical System, f = 180 mm
• Trinocular viewing head, inclined 45°, light distribution binocular 100% or trinocular tube 100%
• Plan 4x, Plan Phase 10x and 20x objectives, pre-centered phase slider with 4x/10x annuli, 20x/40x annulli and BF position
• pre-centered phase slider with 4x/10x annuli
• 20x/40x annulli and BF position
• WF10x/22 mm focusing eyepieces with roll down eyeguards
• Nosepieces: Side facing quintuple nosepiece
• Objectives, filter sets and fluorescence illuminator must be ordered separately
• Stage Fixed plain stage size 160 x 250 mm with glass insert plate
• ELWD condenser, N.A. 0.3, Working Distance = 72 mm
• Fluorescence attachment with field iris, filter slider DAPI, FITC/GFP filter and TRITC, Cy3, mOrange, Alexa 532 filter sets and Brightfield position, UV protection plate, Excelitas Mini+ LED fluorescence illuminator (365 nm - 700 nm) with adapter.
• Filter set specifications: DAPI: EX: 350/50x, BS: 400DC, EM: 460/50 m, FITC/GFP: EX: 470/40x, BS: 505DC, EM: 535/50 m, Texas Red: EX: 560/40x, BS: 600DC, EM: 630/60 m
• Stand Cast alloy aluminum
• Illumination 5 watt LED with variable intensity control; LED bulb is rated for over 25,000 hours of continued use; universal power supply 110-240V
• Warranty 5 year limited warranty for parts, labor and electronic components 1 year warranty on LED bulbs

Specifications

• Voltage: 100/240 V
• Lighting Type: LED
• Camera Type: None
• Model: ACCU-SCOPE

• Eyepiece: WF 10X/22 mm
• Head Style: Trinocular, 45° Inclined
• Display Type: None
• Product Type: Inverted Fluorescent Microscope
