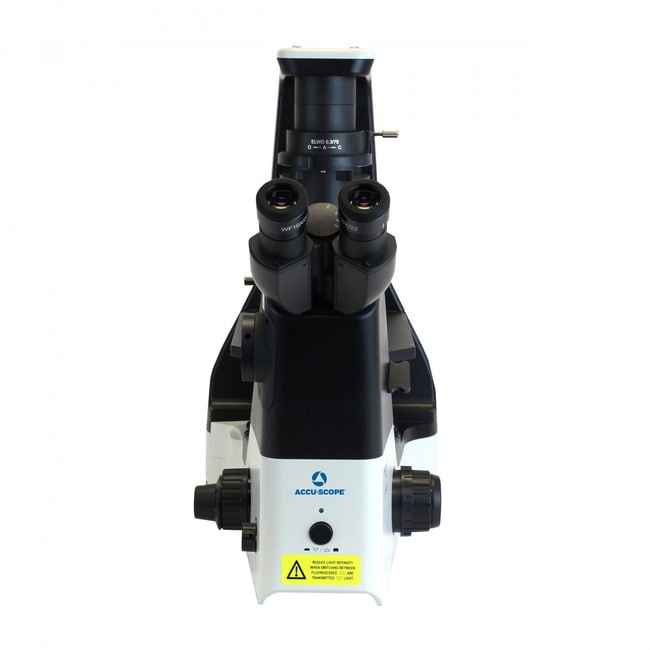

ACCU-SCOPE™ EXI-410-FL Inverted Microscope Series Trinocular with Plan Phase Objectives and FITC/GFP Fluorescence

The ACCU-SCOPE™EXI-410-FL-470 inverted microscope with FITC/GFP Fluorescence delivers outstanding optical performance, convenience, flexibility and value to researchers, educators, and clinicians. Ideal for the daily rigors of tissue culture applications and more advanced observation methods.

Supplier:  ACCU-SCOPE™ EXI410FL470

Catalog No. 01-189-195

Description

• EXI-410 Inverted Fluorescence Microscope
• Trinocular viewing head, inclined 45°, with attachable side mounted camera port
• Trinocular viewing head can be rotated to raise/lower eyetubes by 35 mm
• Eyepiece/Camera Port: 100/0 or 0/100
• WF10x/22 mm eyepieces with roll down eyeguards
• Rear-facing quintuple nosepiece
• Infinity corrected plan4x, Plan Phase 10x and 20x objectives
• Additional Objectives, and filter sets, LED Episcopic components can be added (up to two additional)
• Fixed plain stage, 170 x 250 mm with metal and glass insert plates
• ELWD condenser, N.A. 0.3, working distance = 75 mm
• Variable LED diascopic illuminator
• Dust cover, power cord, Universal power supply 100 to 240 V
• Phase Slider with 10x/20x/40x phase annulli, phase centering telescope
• FITC/GFP filter set for EXI-410 Series, EX: 470/40x, BS: 505DC, EM: 535/50m
• Epi-fluorescence illumination configurable with up to 3 different fluorescence LED units
• Epi-fluorescence filter turret with 3 filter cube positions
• Contrast shield for enhanced fluorescence illumination

Specifications

• Voltage: 100/240 V
• Objective Types: Infinity Corrected Plan Achromatic, Phase Contrast
• Lighting Type: LED
• Camera Type: None
• Model: EXI-410

• Magnification Power: 4X, 10X, 20X
• Eyepiece: WF 10X/22 mm
• Head Style: Trinocular
• Display Type: None
• Product Type: Inverted Phase-contrast Fluorescent Microscope
