ACCU-SCOPE™ EXI-410 Inverted Microscope Series

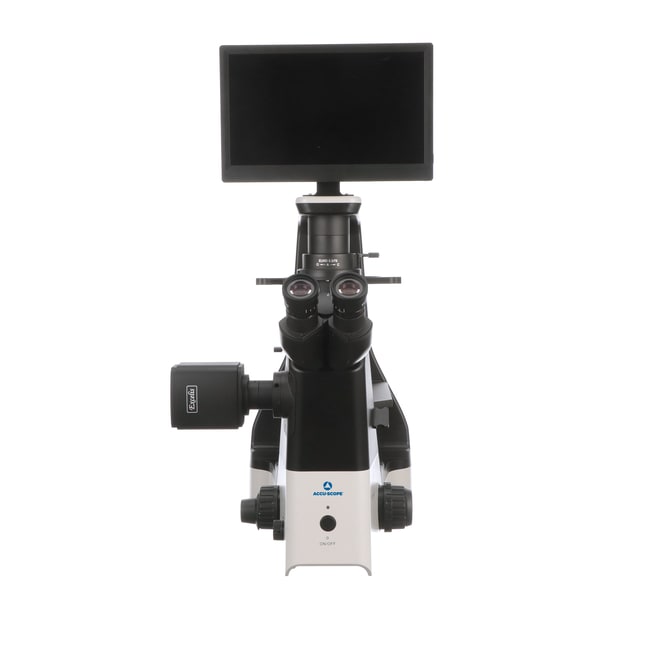

EXI-410-PH-HDS inverted microscope. Featuring infinity Corrected Plan 4x, Plan Phase 10x and 20x objectives with Excelis HDS Camera and Monitor.

Supplier:  ACCU-SCOPE™ EXI410PHHDS

Catalog No. 01-000-991

Description

• Trinocular viewing head, inclined 45°, attachable side mounted camera port,
• Eyepiece/Camera Port: 100/0 or 0/100
• Seidentopf Viewing Head, Inclined at 45°, Interpupillary 48 - 75 mm; binocular head rotates to raise/lower viewing position by 35 mm; 30 mm eyetubes
• WF10x/22 mm eyepieces with eye cushions
• Rear facing quintuple nosepiece
• Infinity Corrected Plan 4x, Plan Phase 10x and 20x objectives with Excelis HDS Camera and Monitor
• Fixed plain stage, 170 x 250 mm with glass insert plate - O.D 310 mm, I.D. 30 mm
• ELWD condenser, N.A. 0.3, Working Distance = 75 mm
• Phase slider with 10x/20x/40x phase annulli
• Centering telescope Variable LED diascopic illuminator
• Dust cover, power cord, Universal power supply 100 - 240V
• Weight (approx.) 30 lb.
• Power Consumption 3W
• Optional sample holders for optional mechanical stage: Universal holder for Terasaki plate holder, glass slide, 35-65 dish and hemocytometer; Terasaki holder / 65 mm Petri dish holder; 35 mm Petri dish holder; 54 mm Petri dish holder, hemocytometer, glass slide holder; 90 mm Petri dish holder; Well clamper
• Cast aluminum alloy
• Observation Methods Brightfield, Phase contrast, Emboss contrast (optional)
• NOTE: The EXI-410-PH is not upgradable to fluorescence

Specifications

• Voltage: 100/240 V
• Objective Types: Infinity Corrected Plan Achromatic, Phase Contrast
• Lighting Type: LED
• Camera Type: Excelis HDS
• Model: ACCU-SCOPE

• Magnification Power: 40X, 100X, 200X
• Eyepiece: WF 10X/22 mm
• Head Style: Trinocular, 45° Inclined
• Display Type: Digital
• Product Type: Inverted Phase-contrast Microscope
