ACCU-SCOPE™ EXI-410-PH Inverted Microscope Series Trinocular with Plan Phase Objectives

Catalog No.	Head Style
01-189-193	Trinocular

Catalog No. 01-189-193 Supplier ACCU-SCOPE™ Supplier No. EXI410PH

Description

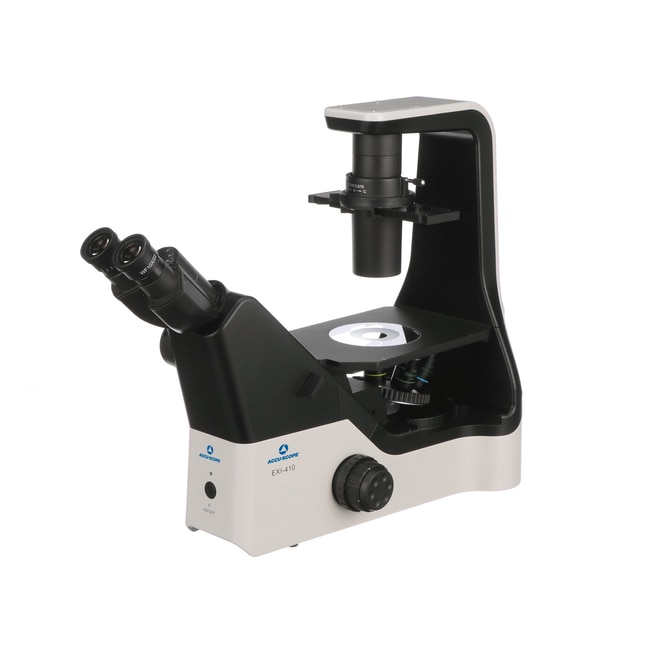

The ACCU-SCOPE™ EXI-410-PH inverted microscope Ideal for the daily rigors of tissue culture applications and more advanced observation methods. The EXI-410-PH features a trinocular viewing head, side mounted camera port, infinity corrected plan 4x, plan phase 10x, and 20x objectives.

• EXI-410 trinocular with plan phase objectives
• Trinocular viewing head, inclined 45°, with attachable side mounted camera port
• Trinocular viewing head can be rotated to raise/lower eyetubes by 35 mm
• Eyepiece/Camera Port: 100/0 and 20/80 (eyes/camera)
• WF10x/22 mm eyepieces with roll down eyeguards
• Rear-facing quintuple nosepiece
• Infinity corrected plan Phase 10x and 20x objectives. Shown with optional 40x plan phase objective.
• Fixed plain stage, 170 x 250 mm with glass insert plates
• ELWD condenser, N.A. 0.3, Working Distance = 75 mm
• Phase slider with 4x/10x/20x/40x phase annulli
• Variable LED diascopic illuminator
• Dust cover, power cord, Universal power supply 100 to 240 V
• NOTE: The EXI-410-PH is not upgradable to fluorescence

Specifications

• Voltage: 100/240 V
• Magnification Power: 4X, 10X, 20X
• Objective Types: Infinity Corrected Plan Achromatic, Phase Contrast
• Eyepiece: WF 10X/22 mm
• Lighting Type: LED
• Head Style: Trinocular
• Camera Type: None
• Display Type: None
• Model: EXI-410
• Product Type: Inverted Phase-contrast Microscope
