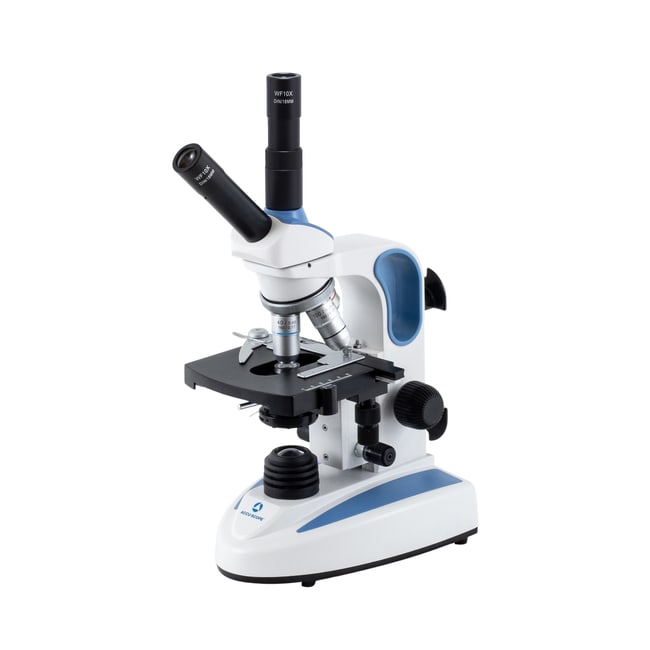

ACCU-SCOPE™ EXM-150 Series Digital Microscope with Dual Inclined Teaching Head and WiFi Camera
SDPSCI_ED

Catalog No. S012446 Shop All ACCU-SCOPE Products
Click to view available options
Head Style:
Binocular

Description

The ACCU-SCOPE™ EXM-151-T-WiFi digital monocular microscope is an excellent choice for high schools, middle schools, technical institutes, hobbyists, and home school applications. The EXM-151-T-WiFi digital microscope features a dual-viewing head, 5 MP WiFi camera and camera adapter.

  • Optical System: DIN Optical System, f = 160 mm.
  • Viewing Head: Monocular inclined head or Monocular dual inclined teaching head
  • Inclined 45° and 360° rotatable
  • Monocular inclined head 45° with vertical teaching viewer.
  • Eyepieces: WF10x eyepiece, 18 mm field of view with pointer. Eyepiece is locked-in to prevent classroom tampering.
  • Nosepiece: Rear facing quadruple, ball bearing nosepiece with positive click stops to ensure parcentration.
  • Camera: with 5 MP ACCU-CAM WiFi camera (CAT# AU-AC-WiFi), 0.5x camera adapter
  • Objectives: Standard configuration includes DIN achromat 4x, 10x, 40xR and 100xR oil objectives.
  • Stage: Stage size 119 x 119 mm factory installed double-plate mechanical stage with low position controls and iris diaphragm.
  • Condenser: N.A. 1.25 Abbe condenser with iris diaphragm on spiral mount.
  • Stand: Cast alloy aluminum with built-in carry handle and cord hangers
  • Illumination: Variable and rechargeable LED illuminator. LED illuminators will last approximately 4 hours on a single charge and the expected bulb life is 20,000 hours. 3500 mAh NiMH rechargeable battery.
  • Focusing System: Separate coarse and fine focus adjustment controls. A tension adjustment is on the coarse control. A built-in slip clutch system and pre-set focus stop prevents accidental damage to objectives and slides.
  • Accessories: Dust cover and instruction manual included.
  • Certification: ISO 9001: 2018 and ISO 14001: 2018, CE, RoHS
  • Warranty: 5-year limited warranty for parts, labor and electronic components.1-year warranty on LED bulb

Specifications

Eyepiece WF 10X/18 mm, with pointer, lockable
Head Style Binocular
Lighting Type LED
Magnification Power 40X, 100X, 400X, 1000X
Model EXM-150
Objective Types DIN Achromatic
Product Type Digital Microscope System Package
Voltage 110/240 V
