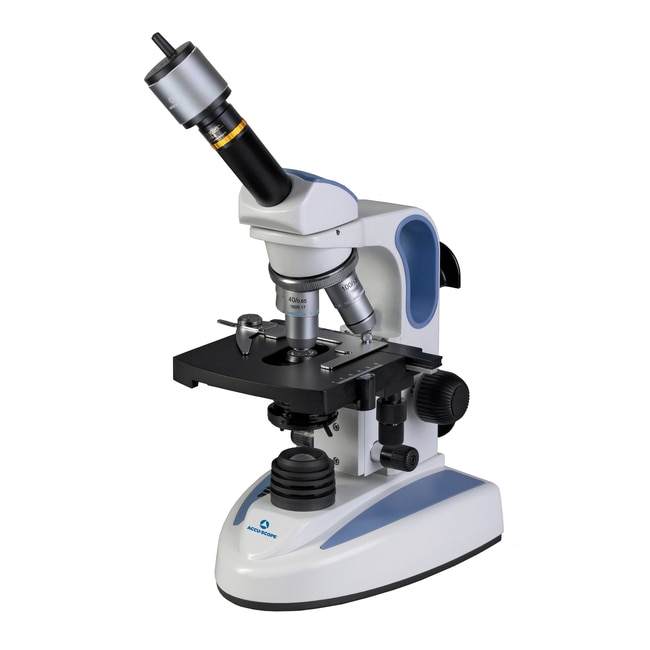

ACCU-SCOPE™ EXM-150 Series Digital Microscope Monocular Microscope with WiFi Camera

The ACCU-SCOPE™ EXM-151-WiFi microscope features a 5 MP WiFi camera and camera adapter. Designed to provide educators with a high performance, student proof instrument at an affordable price. The series is an excellent choice for high schools, middle schools, technical institutes, hobbyists.

Supplier:  ACCU-SCOPE™ EXM151WIFI

Catalog No. S012444

Description

• Optical System: DIN Optical System, f = 160 mm.
• Viewing Head: Monocular inclined head or Monocular dual inclined teaching head.
• Inclined 45° and 360° rotatable
• Monocular inclined head 45° with vertical teaching viewer.
• Eyepieces: WF10x eyepiece, 18 mm field of view with pointer. Eyepiece is locked-in to prevent classroom tampering.
• Camera: 5 MP WiFi camera and camera adapter.
• Nosepiece: Rear facing quadruple, ball bearing nosepiece with positive click stops to ensure parcentration.
• Objectives: Standard configuration includes DIN achromat 4x, 10x, 40xR and 100xR oil objectives.
• Stage: Stage size 119 x 119 mm factory installed double-plate mechanical stage with low position controls and iris diaphragm.
• Condenser: N.A. 1.25 Abbe condenser with iris diaphragm on spiral mount.
• Stand: Cast alloy aluminum with built-in carry handle and cord hangers.
• Illumination: Variable and rechargeable LED illuminator. LED illuminators will last approximately 4 hours on a single charge and the expected bulb life is 20,000 hours. 3500 mAh NiMH rechargeable battery.
• Focusing System: Separate coarse and fine focus adjustment controls. A tension adjustment is on the coarse control. A built-in slip clutch system and pre-set focus stop prevents accidental damage to objectives and slides.
• Accessories: Dust cover and instruction manual included.
• Certification: ISO 9001: 2018 and ISO 14001: 2018, CE, RoHS
• Warranty: 5-year limited warranty for parts, labor and electronic components.1-year warranty on LED bulb

Specifications

• Eyepiece: WF 10X/18 mm, with pointer, lockable
• Lighting Type: LED
• Model: EXM-150
• Product Type: Microscope with Digital Camera

• Head Style: Monocular, 45° Inclined, 360° Rotating
• Magnification Power: 40X, 100X, 400X, 1000X
• Objective Types: DIN Achromatic
• Voltage: 110/240 V
