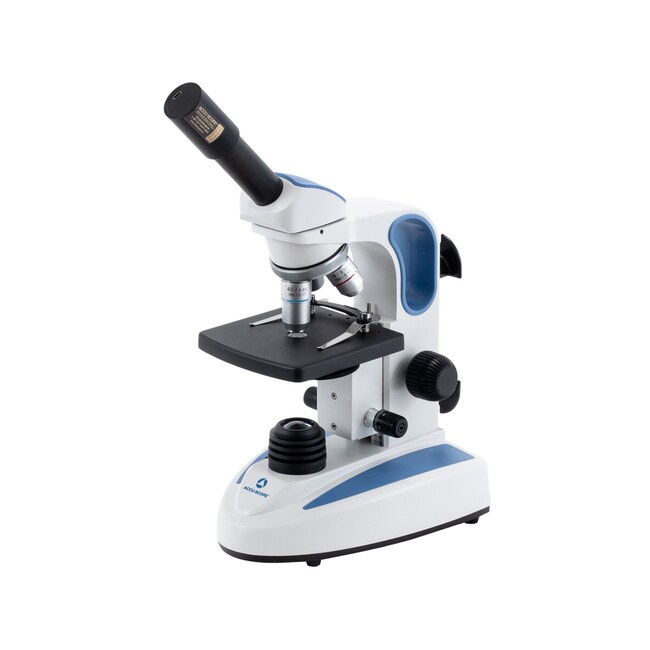

ACCU-SCOPE™ EXM-150 Series Digital Monocular Viewing Head Microscope with Digital Eyepiece Camera
SDPSCI_ED

Catalog No. S012458 Shop All ACCU-SCOPE Products
Click to view available options
Head Style:
Monocular, 45° Inclined, 360° Rotating

Description

The ACCU-SCOPE™ EXM-150-EP digital microscope is an excellent choice for high schools, middle schools, technical institutes, hobbyists, and home school applications. This microscope features a monocular viewing head, 5 MP digital eyepiece camera (AU-500-EP), can be used corded or cordless.

  • Includes ACCU-CAM 500 eyepiece camera (CAT# AU-500-EP). 5 MP camera fits into the eyetube and connects to Windows PC or Mac via provided USB 2.0 cable. Operate the camera and acquire images and video using ACCU-View or ACCU-View LITE software
  • Optical System: DIN Optical System, f = 160 mm.
  • Viewing Head: Monocular inclined head
  • Monocular dual inclined teaching head, inclined 45°and 360° rotatable
  • Monocular inclined head 45° with vertical teaching viewer.
  • Eyepieces: WF10x eyepiece, 18 mm field of view with pointer.
  • Eyepiece is locked-in to prevent classroom tampering.
  • Nosepiece: Rear facing three-hole, ball bearing nosepiece with positive click stops to ensure parcentration.
  • Objectives: Standard configuration includes DIN achromat 4x, 10x and 40xR objectives.
  • Stage: Stage size 119 mm x 119 mm with stage clips
  • Condenser: N.A. 0.65 condenser with five aperture disc
  • Stand: Cast alloy aluminum with built-in carry handle and cord hangers.
  • Illumination: Variable and rechargeable LED illuminator. LED illuminators will last approximately 4 hours on a single charge and the expected bulb life is 20,000 hours. 3500 mAh NiMH rechargeable battery.
  • Focusing System: Separate coarse and fine focus adjustment controls. A tension adjustment is on the coarse control. A built-in slip clutch system and pre-set focus stop prevents accidental damage to objectives and slides.
  • Accessories: Dust cover and instruction manual included.
  • Certification: ISO 9001: 2018 and ISO 14001: 2018, CE, RoHS
  • Warranty: 5-year limited warranty for parts, labor, and electronic components; 1-year warranty on LED bulb

Specifications

Eyepiece WF 10X/18 mm, with pointer, lockable
Head Style Monocular, 45° Inclined, 360° Rotating
Lighting Type LED
Magnification Power 40X, 100X , 400X
Model EXM-150
Objective Types DIN Achromatic
Product Type Microscope with Digital Camera
Voltage 90/240 V
