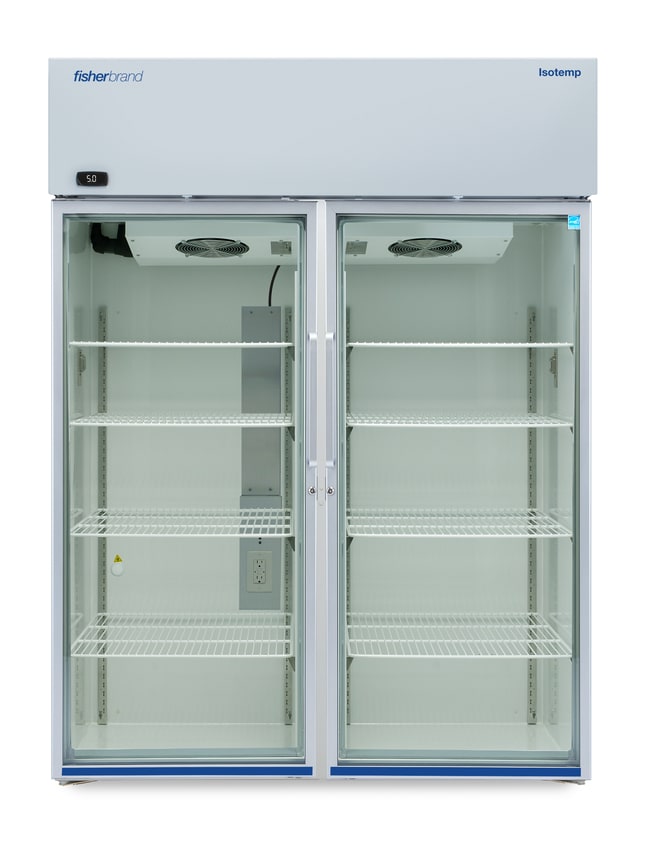

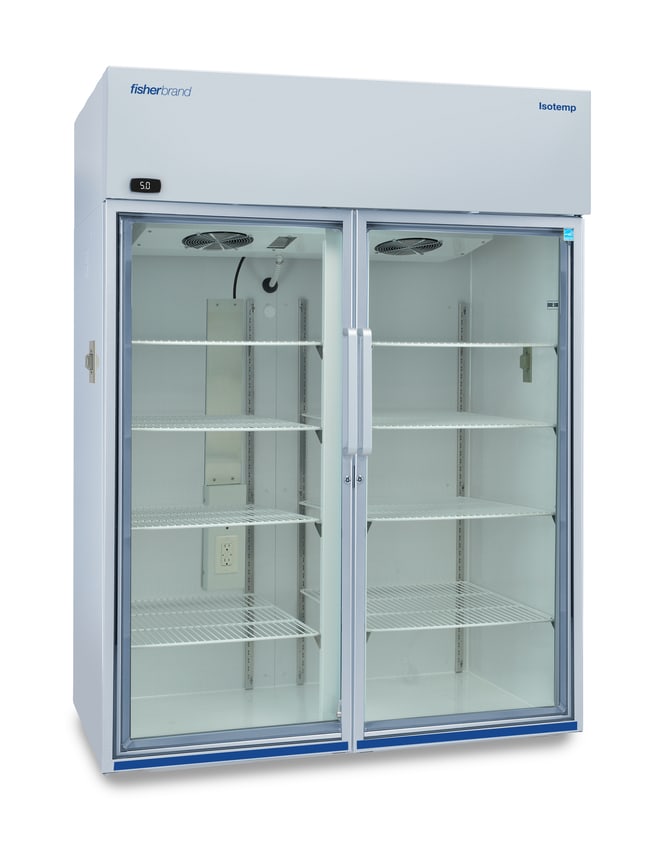

Fisherbrand™ FBG Series Sample Prep Refrigerators

Catalog No.	Capacity (English)
FBG5005CA	51.1 cu. ft.
FBG2305CA	23 cu. ft.
FBG3005CA	29.2 cu. ft.
FBG4505CA	45.8 cu. ft.

Catalog No. FBG5005CA

Description

Sample Prep refrigerators equipped with a duplex outlet and access ports are built to help meet your temperature-controlled sample preparation needs, offering quiet operation, outstanding performance, and sustainable design. The interior convenience outlet offers flexibility and easy setup of benchtop equipment within the chamber.

• Single and double door sizes ranging from 23 cu. ft. to 50 cu. ft.
• Two 2 in. (5 cm) side wall access ports with insulated hinged covers for solvent, waste, and other common tubing and hoses.
• Safety switch protected internal electrical duplex outlet
• Heat-free defrost
• Double-pane glass doors
• Four 2-in. casters; front casters are lockable
• Keyed door locks, compatible with popular E-lock adapters
• ENERGY STAR-certified refrigerator
• Self-closing doors with 90° stop
• Bright LED interior lighting
• Temperature, door ajar, and power failure alarms
• 12-hour controller battery backup
• Remote alarm contacts
• Rear access port
• Quiet operation at less than 53 dB

Specifications

• Type: Refrigerator
• Capacity (English): 51.1 cu. ft.
• Capacity (Metric): 1297 L
• Temperature Range: 3°C to 7°C
• Temperature (Setpoint): 5°C
• Refrigerant: R290
• Door Style: Double Glass
• No. of Doors: 2
• Shelves: 8 Adjustable
• Capacity (English) Shelf: 100 lb.
• Capacity (Metric) Shelf: 45 kg
• Cabinet Material: Painted Steel
• Exterior Finish: Painted Steel
• Certifications/Compliance: cULus, ENERGYSTAR, EPA SNAP
• Style: Freestanding
• Casters: Yes, Front Casters Lock
• Control Type: Capacitive Touch
• Ports: 1 Rear Access Port, 2 Side Access Ports
• Warranty: 3 Years Parts and Labor + 2 Year Compressor
• Defrost: Automatic
• Monitoring Options: SMART VUE Compatible, Remote Alarm Contacts
• Access Security: Key Lock
• Compressor: Top-mounted
• Dimensions (DxWxH) Exterior: 37.8 x 56.5 x 78.5 in. (960 x 1435 x 1994 mm)
• Dimensions (D x W x H) Interior: 28.5 x 52.5 x 58 in. (724 x 1334 x 1473 mm)
• Plug Type: NEMA 5-15
• Voltage: 120 V
• Frequency: 60 Hz
• Weight (English): 511 lb.
• Weight (Metric): 232 kg
